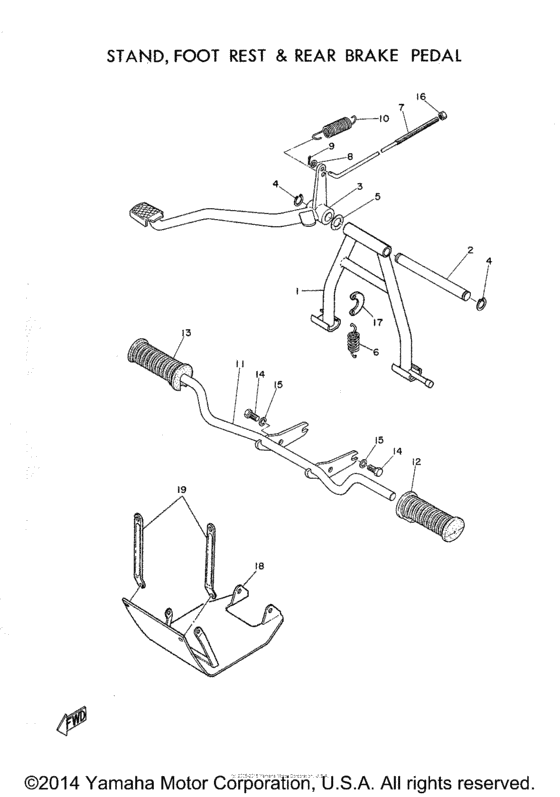

Footrest - stand Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
162-27111-00-00
Stand, Main
|
162-27111-00-00 |
— | ||
|
2
|
2
102-27112-00-00
Shaft, Main Stand
|
102-27112-00-00 |
— | ||
|
3
|
3
102-27211-00-00
Pedal, Brake
|
102-27211-00-00 |
— | ||
|
4
|
4
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.34 |
||
|
5
|
5
102-27219-00-00
Washer, Wave
|
102-27219-00-00 |
— | ||
|
6
|
6
162-27116-00-00
Spring, Main Stand
|
162-27116-00-00 |
— | ||
|
7
|
7
102-27231-01-00
Rod, Brake
|
102-27231-01-00 |
— | ||
|
8
|
8
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
8
|
8
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
9
|
9
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
9
|
9
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
9
|
9
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
10
|
10
102-27216-00-00
Spring, Return
|
102-27216-00-00 |
— | ||
|
11
|
11
102-27411-00-00
Spring, Return
|
102-27411-00-00 |
— | ||
|
12
|
12
122-27413-00-00 Cover, Footrest |
122-27413-00-00 |
from US $13.32 |
||
|
13
|
13
122-27423-00-00 Cover, Footrest |
122-27423-00-00 |
US $13.32 |
||
| replacement | |||||
|
13
|
13
122-27413-00-00 Cover, Footrest |
122-27413-00-00 |
from US $13.32 |
||
|
14
|
14
912-01080-15-00 Bolt |
912-01080-15-00 |
US $4.53 |
||
| replacement | |||||
|
14
|
14
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
15
|
15
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
16
|
16
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
162-27115-00-00
Link, Main Stand
|
162-27115-00-00 |
— | ||
|
18
|
18
162-21471-00-00
Protector, Engine
|
162-21471-00-00 |
— | ||
|
19
|
19
162-21433-00-00
Stay, Engine Protector
|
162-21433-00-00 |
— | ||
