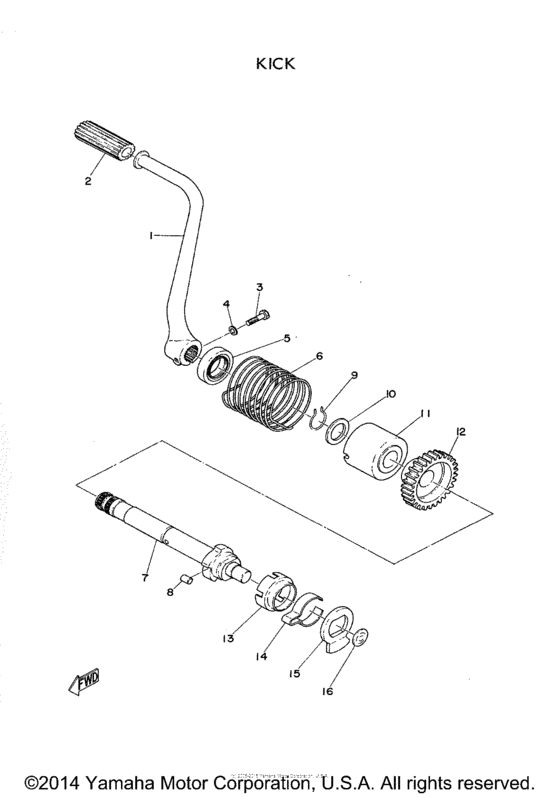

Kick starter Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-15611-01-00
Kick Crank Assembly
|
102-15611-01-00 |
— | ||
| replacements | |||||
|
1
|
1
127-15610-01-91
Kick Crank Assembly
|
127-15610-01-91 |
— | ||
|
1
|
1
127-15610-00-91
New Genuine Part
|
127-15610-00-91 |
— | ||
|
1
|
1
127-15610-00-93
New Genuine Part
|
127-15610-00-93 |
— | ||
|
2
|
2
102-15618-00-00
Cover, Kick Lever
|
102-15618-00-00 |
— | ||
|
3
|
3
912-01060-20-00 Bolt |
912-01060-20-00 |
US $1.07 |
||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
4
|
4
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
931-02150-02-00 Oil SealSD 15-26-6 |
931-02150-02-00 |
US $4.11 |
||
| replacement | |||||
|
5
|
5
93109-15001-00 Oil SealSD 15-26-6 |
93109-15001-00 |
from US $4.11 |
||
|
6
|
6
102-15665-00-00
Spring, Torsion
|
102-15665-00-00 |
— | ||
| replacement | |||||
|
6
|
6
905-08260-44-00
Spring, Torsion
|
905-08260-44-00 |
— | ||
|
7
|
7
102-15660-00-00
Kick Axle Assembly
|
102-15660-00-00 |
— | ||
|
8
|
8
102-15688-00-00 Roller, Kick Gear6-7 |
102-15688-00-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
93606-07082-00 Pin, Dowel6-7 |
93606-07082-00 |
from US $1.98 |
||
|
9
|
9
102-15667-00-00
Clip
|
102-15667-00-00 |
— | ||
| replacement | |||||
|
9
|
9
904-68180-14-00
Clip
|
904-68180-14-00 |
— | ||
|
10
|
10
122-15669-00-00
Washer, Kick Axle
15.2-22-0.8 |
122-15669-00-00 |
— | ||
| replacement | |||||
|
10
|
10
902-01152-33-00
Washer, Plate
15.2-22-0.8 |
902-01152-33-00 |
— | ||
|
11
|
11
126-15666-00-00
Spacer
|
126-15666-00-00 |
— | ||
|
12
|
12
102-15461-00-00
Gear, Kick
28T |
102-15461-00-00 |
— | ||
|
13
|
13
102-15689-00-00
Retainer, Kick Roller
|
102-15689-00-00 |
— | ||
|
14
|
14
102-15687-00-00
Clip
|
102-15687-00-00 |
— | ||
| replacement | |||||
|
14
|
14
904-68120-11-00
Clip
|
904-68120-11-00 |
— | ||
|
15
|
15
102-15668-00-00
Stopper
|
102-15668-00-00 |
— | ||
|
16
|
16
101-15678-00-00
Plug, Blind
|
101-15678-00-00 |
— | ||
