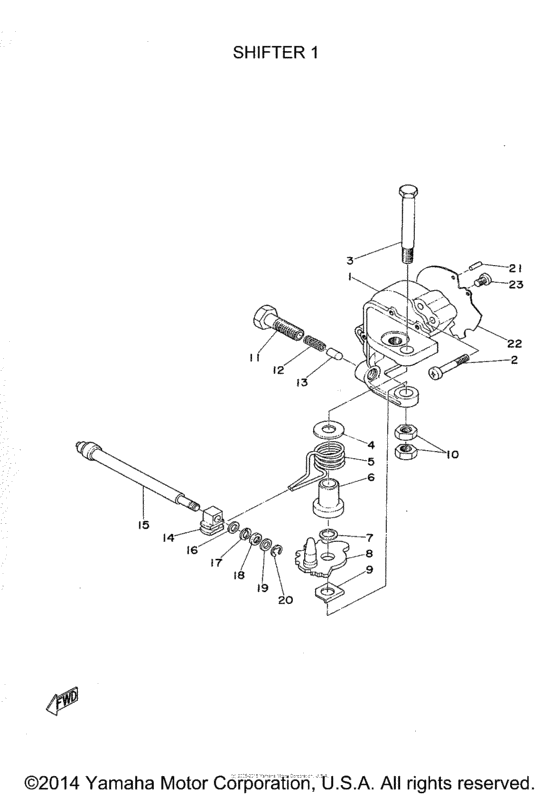

Shift shaft (1) Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-18431-00-00
Bracket, Shifter
|
102-18431-00-00 |
— | ||
| replacement | |||||
|
1
|
1
102-18431-01-00
Bracket, Shifter
|
102-18431-01-00 |
— | ||
|
2
|
2
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
3
|
3
102-18432-00-00
Shaft, Cam
|
102-18432-00-00 |
— | ||
|
4
|
4
102-18138-00-00 Washer, Plate10.2-24-1 |
102-18138-00-00 |
US $2.55 |
||
| replacement | |||||
|
4
|
4
90201-105J4-00 Washer, Plate(52H)10.2-24-1 |
90201-105J4-00 |
from US $2.55 |
||
|
5
|
5
102-18434-00-00
Spring,torsion
|
102-18434-00-00 |
— | ||
| replacement | |||||
|
5
|
5
905-08350-63-00
SPRING,TORSION
|
905-08350-63-00 |
— | ||
|
7
|
7
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
8
|
8
102-18441-00-00
Cam Plate Assembly
|
102-18441-00-00 |
— | ||
|
9
|
9
102-18457-00-00
Plate, Thrust
|
102-18457-00-00 |
— | ||
|
10
|
10
928-01083-00-00 Nut |
928-01083-00-00 |
US $1.42 |
||
| replacement | |||||
|
10
|
10
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
11
|
11
102-18577-00-00
Bolt
|
102-18577-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-09102-01-00
Bolt
|
901-09102-01-00 |
— | ||
|
12
|
12
102-18557-00-00
Spring, Compression
|
102-18557-00-00 |
— | ||
| replacement | |||||
|
12
|
12
905-01100-56-00
Spring, Compression
|
905-01100-56-00 |
— | ||
|
13
|
13
102-18547-00-00
Stopper, Cam
|
102-18547-00-00 |
— | ||
|
14
|
14
102-18421-00-00
Shifter
|
102-18421-00-00 |
— | ||
|
15
|
15
102-18410-00-00
Shifter Rod Assembly
|
102-18410-00-00 |
— | ||
|
16
|
16
102-18416-00-00
Shim, Rod
6.2-9.5-0.8 |
102-18416-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
6.2-9.5-0.8 |
999-99999-99-00 |
— | ||
|
17
|
17
102-18417-00-00
Clip, Ring
|
102-18417-00-00 |
— | ||
|
18
|
18
102-18418-00-00
Cover, Clip
|
102-18418-00-00 |
— | ||
|
19
|
19
102-18419-00-00 Washer6.2-11-1.0 |
102-18419-00-00 |
US $2.13 |
||
| replacement | |||||
|
19
|
19
92990-06200-00 Washer, Plain6.2-11-1.0 |
92990-06200-00 |
from US $1.07 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
22
|
22
102-18428-00-00
Seal, Dust
|
102-18428-00-00 |
— | ||
|
23
|
23
92501-04006-00
Screw, Pan Head
|
92501-04006-00 |
— | ||
| replacements | |||||
|
23
|
23
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
23
|
23
925-01040-05-00
Screw, Pan Head
|
925-01040-05-00 |
— | ||
