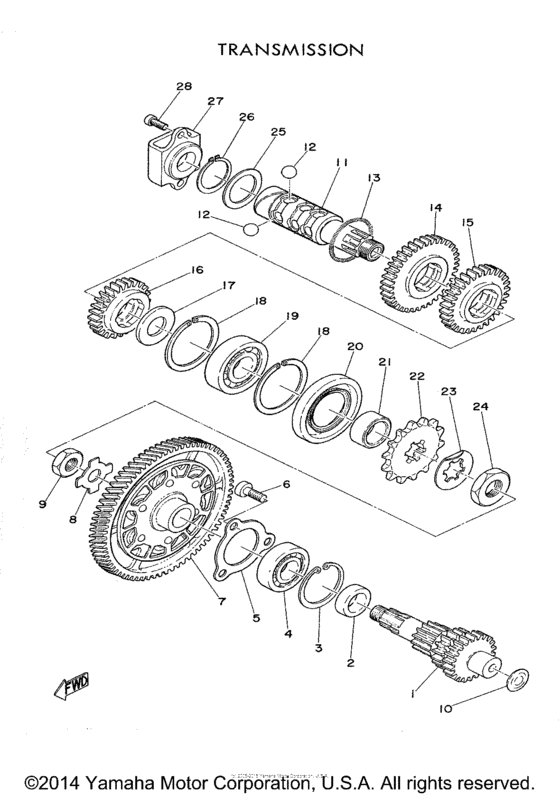

Transmission Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-17411-00-00
Main Axle
|
102-17411-00-00 |
— | ||
|
2
|
2
102-17462-00-00
Collar
|
102-17462-00-00 |
— | ||
| replacement | |||||
|
2
|
2
903-87203-46-00
Collar (102-17462-00)
|
903-87203-46-00 |
— | ||
|
3
|
3
93420-40005-00 Circlip |
93420-40005-00 |
from US $5.29 |
||
| replacement | |||||
|
3
|
3
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
|
4
|
4
933-06203-01-00
Bearing
6203 |
933-06203-01-00 |
— | ||
| replacement | |||||
|
4
|
4
933-06203-27-00 Bearing (7X9)6203 |
933-06203-27-00 |
from US $26.35 |
||
|
5
|
5
102-15381-00-00
Plate, Brng Cover
|
102-15381-00-00 |
— | ||
|
6
|
6
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
7
|
7
102-16150-00-00
Primary Driven Gear Comp
74T |
102-16150-00-00 |
— | ||
|
8
|
8
102-16175-00-00
Washer, Lock
|
102-16175-00-00 |
— | ||
|
9
|
9
102-16174-00-00
Nut, Lock
20-7 |
102-16174-00-00 |
— | ||
| replacement | |||||
|
9
|
9
901-70121-70-00
Nut, Hexagon
20-7 |
901-70121-70-00 |
— | ||
|
10
|
10
102-15167-00-00
Plug, Expansion
|
102-15167-00-00 |
— | ||
| replacement | |||||
|
10
|
10
903-30200-04-00
Plug, Expansion
|
903-30200-04-00 |
— | ||
|
11
|
11
102-17421-00-00
Axle, Drive
|
102-17421-00-00 |
— | ||
|
12
|
12
935-06160-06-00
Ball
5/16 INCH |
935-06160-06-00 |
— | ||
|
14
|
14
102-17211-00-00
Gear, 1St Wheel
1ST WHEEL 37T |
102-17211-00-00 |
— | ||
|
15
|
15
102-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL 31T |
102-17221-00-00 |
— | ||
|
16
|
16
102-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL 27T |
102-17231-00-00 |
— | ||
|
17
|
17
102-17429-00-00
Shim, Drive Axle
20.2-34-2.0,2.5,3.0 UR |
102-17429-00-00 |
— | ||
| replacement | |||||
|
17
|
17
905-60200-82-00
Spacer
20.2-34-2.0,2.5,3.0 UR |
905-60200-82-00 |
— | ||
|
18
|
18
934-50470-11-00
Circlip
47-1.8 |
934-50470-11-00 |
— | ||
|
19
|
19
93306-20401-00 Bearing6204 |
93306-20401-00 |
from US $15.02 |
||
| replacements | |||||
|
19
|
19
93306-20461-00 Bearing6204 |
93306-20461-00 |
from US $15.02 |
||
|
19
|
19
93306-204Y7-00
Bearing
6204 |
93306-204Y7-00 |
— | ||
|
20
|
20
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
21
|
21
102-17462-00-00
Collar
20-28-15.1 |
102-17462-00-00 |
— | ||
| replacement | |||||
|
21
|
21
903-87203-46-00
Collar (102-17462-00)
20-28-15.1 |
903-87203-46-00 |
— | ||
|
22
|
22
122-17461-40-00 Sprocket, Drive (14T)14T |
122-17461-40-00 |
US $24.51 |
||
| replacement | |||||
|
22
|
22
93812-14035-00 Sprocket, Drive (14T)14T |
93812-14035-00 |
from US $24.51 |
||
|
23
|
23
102-17464-00-00 Washer, Lock |
102-17464-00-00 |
US $3.68 |
||
| replacement | |||||
|
23
|
23
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
24
|
24
102-17463-00-00 Nut |
102-17463-00-00 |
US $3.26 |
||
| replacements | |||||
|
24
|
24
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
|
24
|
24
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
|
25
|
25
102-17427-00-00
Shim, Drive Axle
25.2-36-1.5 |
102-17427-00-00 |
— | ||
|
26
|
26
93410-25010-00 CirclipS25 |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
26
|
26
99009-25400-00 CirclipS25 |
99009-25400-00 |
from US $1.56 |
||
|
27
|
27
102-17488-00-00
Bucket, Oil
|
102-17488-00-00 |
— | ||
|
28
|
28
925-01040-10-00 Screw, Pan Head |
925-01040-10-00 |
US $1.21 |
||
