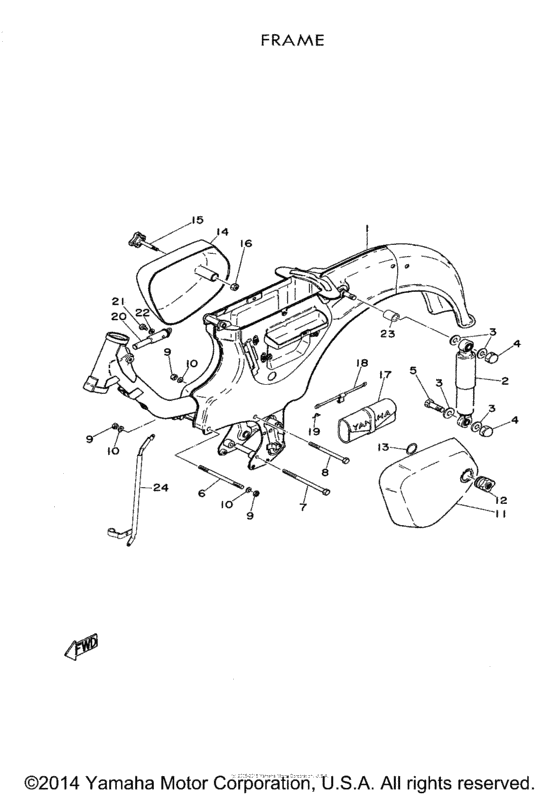

Frame Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
162-21110-04-00
Frame Comp
|
162-21110-04-00 |
— | ||
|
2
|
2
102-22210-00-00
Rear Cushion Assy
|
102-22210-00-00 |
— | ||
|
3
|
3
102-22243-00-00 Washer, Rear CushionWasher (10.5-27-2) 10.5-27-2 |
102-22243-00-00 |
US $1.70 |
||
| replacement | |||||
|
3
|
3
90201-105R9-00 Washer, Plate10.5-27-2 |
90201-105R9-00 |
from US $1.70 |
||
|
4
|
4
92803-10700-00 Nut |
92803-10700-00 |
US $3.12 |
||
| replacement | |||||
|
4
|
4
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
5
|
5
102-22242-00-00 Bolt, Rear Cushion Bracket10-38 |
102-22242-00-00 |
US $1.28 |
||
| replacement | |||||
|
5
|
5
90101-10776-00 Bolt10-38 |
90101-10776-00 |
from US $1.28 |
||
|
6
|
6
102-21481-00-00
Bolt, Mounting
8-140 |
102-21481-00-00 |
— | ||
|
7
|
7
102-21482-00-00
Bolt, Mounting
8-140 |
102-21482-00-00 |
— | ||
| replacements | |||||
|
7
|
7
973-21081-35-00 Bolt, Hexagon (174-21483-00)8-140 |
973-21081-35-00 |
US $8.22 |
||
|
7
|
7
971-01081-35-00 Bolt,hexagon8-140 |
971-01081-35-00 |
US $6.46 |
||
|
8
|
8
911-01081-15-00 Bolt, Flange |
911-01081-15-00 |
US $6.38 |
||
| replacement | |||||
|
8
|
8
95817-08115-00 Bolt, Flange |
95817-08115-00 |
from US $6.38 |
||
|
9
|
9
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
9
|
9
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
9
|
9
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
10
|
10
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
102-21711-00-00
Cover, Side 1
|
102-21711-00-00 |
— | ||
| replacements | |||||
|
11
|
11
102-21711-00-24
Cover, Side 1
|
102-21711-00-24 |
— | ||
|
11
|
11
102-21711-00-33
New Genuine Part
|
102-21711-00-33 |
— | ||
|
12
|
12
102-21714-00-00 Knob, Side Cover 1 |
102-21714-00-00 |
from US $13.07 |
||
|
13
|
13
102-21718-00-00 Ring, Stop26-2.6 |
102-21718-00-00 |
US $2.16 |
||
|
14
|
14
102-21721-00-00
Cover,side 2
|
102-21721-00-00 |
— | ||
| replacements | |||||
|
14
|
14
102-21721-00-25
COVER,SIDE 2
|
102-21721-00-25 |
— | ||
|
14
|
14
102-21721-00-33
New Genuine Part
|
102-21721-00-33 |
— | ||
|
15
|
15
102-21724-00-00 Knob, Side Cover 2 |
102-21724-00-00 |
US $14.45 |
||
| replacement | |||||
|
15
|
15
122-21724-00-00 Knob, Side Cover 2 |
122-21724-00-00 |
US $14.45 |
||
|
16
|
16
102-21713-00-00
Nut
6-14-2 |
102-21713-00-00 |
— | ||
|
17
|
17
102-28100-00-00
Tool Kit
|
102-28100-00-00 |
— | ||
| replacements | |||||
|
17
|
17
1E7-W2810-00-00
Tool Kit
|
1E7-W2810-00-00 |
— | ||
|
17
|
17
206-28100-10-00
Tool kit
|
206-28100-10-00 |
— | ||
|
17
|
17
1E7-28100-00-00
Tool kit
|
1E7-28100-00-00 |
— | ||
|
18
|
18
102-21376-00-00
Band
|
102-21376-00-00 |
— | ||
|
19
|
19
102-21377-00-00
Pin
|
102-21377-00-00 |
— | ||
|
20
|
20
102-23480-00-00
Steering Lock Assy
|
102-23480-00-00 |
— | ||
|
21
|
21
924-01040-05-00
Screw, Pan Head
|
924-01040-05-00 |
— | ||
| replacements | |||||
|
21
|
21
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
21
|
21
925-01040-05-00
Screw, Pan Head
|
925-01040-05-00 |
— | ||
|
22
|
22
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
23
|
23
162-22253-00-00
Collar, Distance
|
162-22253-00-00 |
— | ||
|
24
|
24
162-21288-00-00
Guide, Wire
|
162-21288-00-00 |
— | ||
