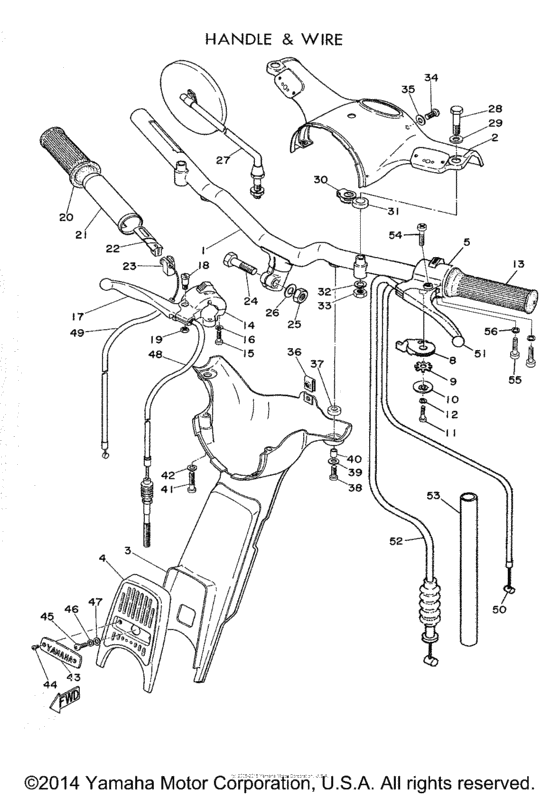

Handle - cable Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-26211-01-00
Handle
|
102-26211-01-00 |
— | ||
| replacement | |||||
|
1
|
1
102-26211-01-24
HANDLE
|
102-26211-01-24 |
— | ||
|
2
|
2
162-26213-00-00
Cover, Upper
|
162-26213-00-00 |
— | ||
|
3
|
3
102-26215-00-00
Cover, Under
|
102-26215-00-00 |
— | ||
|
4
|
4
102-23391-00-00
Panel, Front
|
102-23391-00-00 |
— | ||
|
5
|
5
162-82610-00-00
Lever Holder Assembly (Lh)
|
162-82610-00-00 |
— | ||
|
6
|
6
925-01051-00-00
Screw
|
925-01051-00-00 |
— | ||
|
7
|
7
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
103-83941-00-00
Lever, Starter
|
103-83941-00-00 |
— | ||
|
9
|
9
136-83944-00-00
Washer, Spec''l Shap
|
136-83944-00-00 |
— | ||
| replacement | |||||
|
9
|
9
902-09121-15-00
Washer, Spec''l Shap
|
902-09121-15-00 |
— | ||
|
10
|
10
136-83942-00-00
Cover, Starter
|
136-83942-00-00 |
— | ||
|
11
|
11
136-83945-00-00
Bolt
|
136-83945-00-00 |
— | ||
| replacement | |||||
|
11
|
11
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
12
|
12
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
102-26241-00-00
Grip Lh
LH |
102-26241-00-00 |
— | ||
|
14
|
14
124-82710-11-94
Lever Holder Assembly 1
|
124-82710-11-94 |
— | ||
|
15
|
15
925-01050-16-00 Screw, Pan Head |
925-01050-16-00 |
US $1.42 |
||
| replacement | |||||
|
15
|
15
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
16
|
16
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
122-83922-01-00
Lever R
|
122-83922-01-00 |
— | ||
|
18
|
18
136-83915-00-00
Screw, Pan Head
|
136-83915-00-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
19
|
19
928-01053-00-00 Nut |
928-01053-00-00 |
US $2.20 |
||
| replacement | |||||
|
19
|
19
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
20
|
20
102-26242-00-00
Grip Rh
RH |
102-26242-00-00 |
— | ||
|
21
|
21
102-26243-00-00
Tube, Thrtl Guide
|
102-26243-00-00 |
— | ||
| replacement | |||||
|
21
|
21
207-26243-00-00
Tube, Thrtl Guide
|
207-26243-00-00 |
— | ||
|
22
|
22
102-26244-00-00
Slider, Throttle
|
102-26244-00-00 |
— | ||
|
23
|
23
135-26245-00-00
Stopper, Cable
|
135-26245-00-00 |
— | ||
|
24
|
24
102-23441-00-00
Bolt
|
102-23441-00-00 |
— | ||
| replacement | |||||
|
24
|
24
97013-10040-00 Bolt |
97013-10040-00 |
US $9.59 |
||
|
25
|
25
928-01101-00-00 Nut, Self-Locking |
928-01101-00-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
901-85100-31-00
Nut, Self-Locking
|
901-85100-31-00 |
— | ||
|
26
|
26
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
26
|
26
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
27
|
27
102-26290-00-00
Mirror Assy (Rh)
|
102-26290-00-00 |
— | ||
|
28
|
28
912-04080-45-00 Bolt |
912-04080-45-00 |
US $4.11 |
||
| replacement | |||||
|
28
|
28
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
29
|
29
102-23457-00-00
Washer, Spec''l Shap
|
102-23457-00-00 |
— | ||
|
30
|
30
102-83938-00-00
Earth Lug
|
102-83938-00-00 |
— | ||
|
31
|
31
102-23455-00-00
Damper, Handle Under
|
102-23455-00-00 |
— | ||
|
32
|
32
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
33
|
33
928-03081-00-00 Nut |
928-03081-00-00 |
US $1.42 |
||
| replacements | |||||
|
33
|
33
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
33
|
33
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
34
|
34
102-26229-00-00
Screw
5-14 |
102-26229-00-00 |
— | ||
|
35
|
35
102-23458-00-00
Washer, Special
8.5-13-0.8 |
102-23458-00-00 |
— | ||
|
36
|
36
102-21791-00-00
Nut, Speed
|
102-21791-00-00 |
— | ||
|
37
|
37
102-23455-00-00
Damper, Handle Under
|
102-23455-00-00 |
— | ||
|
38
|
38
925-03050-18-00
Screw, Pan Head
|
925-03050-18-00 |
— | ||
| replacement | |||||
|
38
|
38
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
39
|
39
102-23492-00-00
Washer, Plain
|
102-23492-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
40
|
40
102-23448-00-00
Spacer
6-8-9.5 |
102-23448-00-00 |
— | ||
|
41
|
41
925-01050-30-00 Screw |
925-01050-30-00 |
US $1.28 |
||
|
42
|
42
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
42
|
42
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
43
|
43
102-23395-00-00
Emblem
|
102-23395-00-00 |
— | ||
|
44
|
44
925-03030-08-00
Screw, Pan Head
|
925-03030-08-00 |
— | ||
| replacement | |||||
|
44
|
44
925-01030-08-00
Screw, Pan Head
|
925-01030-08-00 |
— | ||
|
45
|
45
92501-06010-00 Screw, Pan Head92503-06010-00 |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
45
|
45
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
46
|
46
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
46
|
46
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
47
|
47
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
48
|
48
102-26341-00-00
Cable, Brake
|
102-26341-00-00 |
— | ||
| replacement | |||||
|
48
|
48
102-26341-01-00
Cable, Brake
|
102-26341-01-00 |
— | ||
|
49
|
49
102-26311-00-00
Cable, Throttle 1
|
102-26311-00-00 |
— | ||
|
50
|
50
162-26331-00-00
Cable, Starter
|
162-26331-00-00 |
— | ||
|
51
|
51
122-83912-00-00 Lever L |
122-83912-00-00 |
US $7.49 |
||
| replacement | |||||
|
51
|
51
803-83912-00-38 Lever L |
803-83912-00-38 |
from US $7.49 |
||
|
52
|
52
103-26335-00-00
Wire, Clutch
|
103-26335-00-00 |
— | ||
|
53
|
53
162-26328-00-00
Tube, Wire Guide
|
162-26328-00-00 |
— | ||
|
54
|
54
925-03050-18-00
Screw, Pan Head
|
925-03050-18-00 |
— | ||
| replacement | |||||
|
54
|
54
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
55
|
55
92501-05020-00
S/s Screw
|
92501-05020-00 |
— | ||
| replacement | |||||
|
55
|
55
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
56
|
56
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
56
|
56
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
