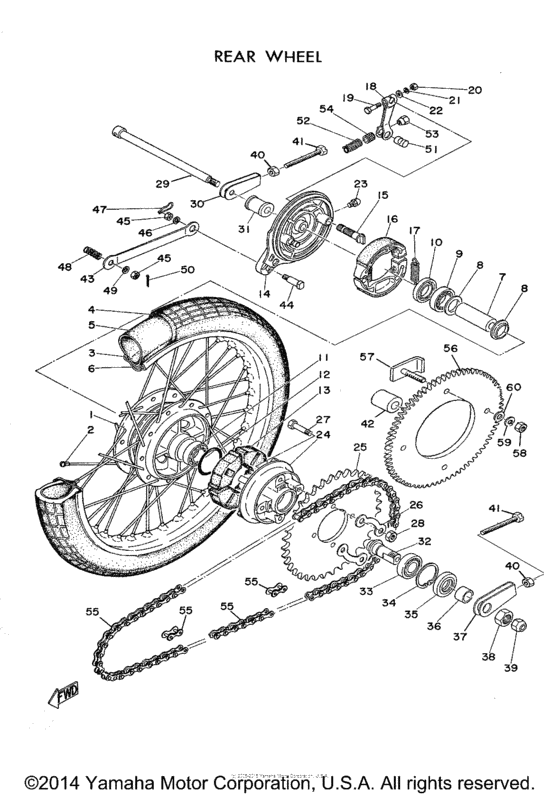

Rear wheel Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-25311-00-00
Hub, Rear
|
102-25311-00-00 |
— | ||
| replacement | |||||
|
1
|
1
102-25311-00-38
Hub, Rear
|
102-25311-00-38 |
— | ||
|
2
|
2
102-25304-00-00
Spoke Set, Rear
|
102-25304-00-00 |
— | ||
|
3
|
3
944-12160-04-00
Rim
|
944-12160-04-00 |
— | ||
|
4
|
4
944-15160-10-00
Tire
2.50-16 |
944-15160-10-00 |
— | ||
|
5
|
5
942-25160-04-00
Tube
2.50-16 |
942-25160-04-00 |
— | ||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
2.50-16 |
999-99999-99-00 |
— | ||
|
5
|
5
94225-16048-00
Tube 250X16
2.50-16 |
94225-16048-00 |
— | ||
|
6
|
6
943-25160-03-00
Band, Rim (1.60-16)
1.60-16 |
943-25160-03-00 |
— | ||
| replacement | |||||
|
6
|
6
94330-16058-00 Band, Rim (1.60-16)1.60-16 |
94330-16058-00 |
from US $4.25 |
||
|
7
|
7
102-25317-00-00 Spacer |
102-25317-00-00 |
US $8.22 |
||
| replacement | |||||
|
7
|
7
90560-12145-00 Spacer |
90560-12145-00 |
from US $8.22 |
||
|
8
|
8
102-25315-00-00 Flange, Spacer |
102-25315-00-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
9
|
9
93306-30101-00 Bearing6301RS |
93306-30101-00 |
from US $9.78 |
||
|
10
|
10
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
11
|
11
933-06301-02-00 Bearing6301 |
933-06301-02-00 |
from US $12.75 |
||
|
12
|
12
933-10410-41-00
O-Ring
|
933-10410-41-00 |
— | ||
|
13
|
13
102-25364-00-00
Damper
|
102-25364-00-00 |
— | ||
|
14
|
14
102-25321-00-00 Brake Shoe Plt Assembly |
102-25321-00-00 |
US $94.64 |
||
| replacements | |||||
|
14
|
14
339-25320-10-00 Brake Shoe Plt Assembly |
339-25320-10-00 |
US $94.64 |
||
|
14
|
14
102-25321-00-38 Plate, brake shoe |
102-25321-00-38 |
US $71.57 |
||
|
15
|
15
102-25351-00-00
Camshaft
|
102-25351-00-00 |
— | ||
| replacement | |||||
|
15
|
15
102-25351-01-00
CAMSHAFT
|
102-25351-01-00 |
— | ||
|
16
|
16
102-25330-00-00
Brake Shoe Kit
|
102-25330-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
17
|
17
102-25333-00-00 Spring, Tension |
102-25333-00-00 |
US $3.97 |
||
| replacement | |||||
|
17
|
17
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
18
|
18
102-25355-01-00
Lever, Camshaft
|
102-25355-01-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
912-01060-30-00 Bolt |
912-01060-30-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
20
|
20
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
21
|
21
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
23
|
23
93700-06001-00 Nipple, Grease |
93700-06001-00 |
US $3.83 |
||
| replacement | |||||
|
23
|
23
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
24
|
24
102-25366-00-00
Clutch, Hub
|
102-25366-00-00 |
— | ||
|
25
|
25
122-25437-00-00 Sprocket, Driven (3737 |
122-25437-00-00 |
US $50.43 |
||
| replacement | |||||
|
25
|
25
122-25437-11-00 SPROCKET, DRIVEN (3737 |
122-25437-11-00 |
from US $31.55 |
||
|
26
|
26
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
26
|
26
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
26
|
26
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
27
|
27
162-25411-00-00
Washer, Plain
|
162-25411-00-00 |
— | ||
|
28
|
28
102-25413-00-00
Nut
8-6.5 |
102-25413-00-00 |
— | ||
|
29
|
29
102-25381-02-00
Axle, Wheel
|
102-25381-02-00 |
— | ||
| replacements | |||||
|
29
|
29
357-25381-00-00
Axle, Wheel
|
357-25381-00-00 |
— | ||
|
29
|
29
180-25381-00-00
Shaft, wheel
|
180-25381-00-00 |
— | ||
|
30
|
30
162-25389-00-00
Puller, Chain 2
|
162-25389-00-00 |
— | ||
| replacement | |||||
|
30
|
30
130-25389-00-00
Puller, Chain 2
|
130-25389-00-00 |
— | ||
|
31
|
31
162-25383-00-00
Collar
12.2-26-28 |
162-25383-00-00 |
— | ||
| replacement | |||||
|
31
|
31
903-87120-98-00
Collar
12.2-26-28 |
903-87120-98-00 |
— | ||
|
32
|
32
102-25387-00-00 Shaft, Sprocket |
102-25387-00-00 |
US $28.76 |
||
| replacement | |||||
|
32
|
32
102-25387-03-00 Axle, Sprocket |
102-25387-03-00 |
US $28.76 |
||
|
33
|
33
933-06004-03-00 Bearing6004RS |
933-06004-03-00 |
US $15.44 |
||
| replacement | |||||
|
33
|
33
93306-00438-00 Bearing6004RS |
93306-00438-00 |
from US $11.58 |
||
|
34
|
34
93420-40802-00 CirclipR42 |
93420-40802-00 |
from US $5.09 |
||
|
35
|
35
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.37 |
||
|
36
|
36
102-25386-00-00 Collar18-30-15 |
102-25386-00-00 |
US $8.08 |
||
| replacement | |||||
|
36
|
36
90387-18143-00 Collar18-30-15 |
90387-18143-00 |
US $8.08 |
||
|
37
|
37
162-25388-00-00
Puller, Chain 1
|
162-25388-00-00 |
— | ||
| replacements | |||||
|
37
|
37
130-25388-09-00
Puller, Chain 1
|
130-25388-09-00 |
— | ||
|
37
|
37
130-25388-00-00
Puller, Chain 1
|
130-25388-00-00 |
— | ||
|
38
|
38
102-25385-01-00 Nut |
102-25385-01-00 |
US $7.65 |
||
| replacement | |||||
|
38
|
38
90170-18165-00 Nut |
90170-18165-00 |
from US $7.65 |
||
|
39
|
39
102-25382-00-00
Nut, Spec''l Shape
|
102-25382-00-00 |
— | ||
| replacement | |||||
|
39
|
39
901-79101-06-00
Nut, Spec''l Shape
|
901-79101-06-00 |
— | ||
|
40
|
40
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
40
|
40
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
41
|
41
162-25379-00-00 Bolt |
162-25379-00-00 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
90101-06016-00 Bolt |
90101-06016-00 |
from US $7.37 |
||
|
42
|
42
162-25379-00-00 Bolt |
162-25379-00-00 |
US $7.37 |
||
| replacement | |||||
|
42
|
42
90101-06016-00 Bolt |
90101-06016-00 |
from US $7.37 |
||
|
43
|
43
102-25371-00-00 Bar, Tension |
102-25371-00-00 |
US $10.06 |
||
|
44
|
44
102-25373-00-00 Bolt |
102-25373-00-00 |
US $5.67 |
||
| replacements | |||||
|
44
|
44
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
44
|
44
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
|
45
|
45
928-01083-00-00 Nut |
928-01083-00-00 |
US $1.42 |
||
| replacement | |||||
|
45
|
45
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
46
|
46
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
47
|
47
102-25375-00-00 Clip |
102-25375-00-00 |
US $1.84 |
||
| replacement | |||||
|
47
|
47
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
48
|
48
102-25374-00-00
Spring, Compression
|
102-25374-00-00 |
— | ||
| replacement | |||||
|
48
|
48
905-01201-29-00
Spring, Compression
|
905-01201-29-00 |
— | ||
|
49
|
49
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
49
|
49
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
49
|
49
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
50
|
50
914-01020-12-00 Pin. Cotter |
914-01020-12-00 |
US $0.88 |
||
| replacements | |||||
|
50
|
50
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
50
|
50
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
51
|
51
148-27237-00-00 Pin |
148-27237-00-00 |
US $1.56 |
||
| replacement | |||||
|
51
|
51
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
52
|
52
148-27239-00-00
Seat, Spring
|
148-27239-00-00 |
— | ||
|
53
|
53
109-27236-00-00
Rod
|
109-27236-00-00 |
— | ||
|
54
|
54
148-27239-00-00
Seat, Spring
|
148-27239-00-00 |
— | ||
|
55
|
55
94604-20001-00 Joint, Chain(Did 420M)420M |
94604-20001-00 |
from US $2.50 |
||
| replacements | |||||
|
55
|
55
94681-64001-00 Joint, Chain420M |
94681-64001-00 |
from US $2.83 |
||
|
55
|
55
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
55
|
55
945-04201-17-00
Chain
420-117L |
945-04201-17-00 |
— | ||
| replacements | |||||
|
55
|
55
945-80521-06-00
Chain(D.i.d.420M 106L)
420-117L |
945-80521-06-00 |
— | ||
|
55
|
55
945-04201-06-00
Chain, drive
420-117L |
945-04201-06-00 |
— | ||
|
55
|
55
94580-13106-00
Chain
420-117L |
94580-13106-00 |
— | ||
|
55
|
55
945-04200-19-00
Chain
420-19L |
945-04200-19-00 |
— | ||
| replacement | |||||
|
55
|
55
945-04200-18-00
JOINT,CHAIN
420-19L |
945-04200-18-00 |
— | ||
|
55
|
55
945-04200-98-00 Chain420-98L |
945-04200-98-00 |
US $21.25 |
||
| replacement | |||||
|
55
|
55
94580-52098-00 Chain, 420-98L420-98L |
94580-52098-00 |
from US $21.25 |
||
|
56
|
56
162-25472-10-00
Sprocket, Drvn 72T
72T |
162-25472-10-00 |
— | ||
|
57
|
57
162-25411-00-00
Washer, Plain
|
162-25411-00-00 |
— | ||
|
58
|
58
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
58
|
58
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
58
|
58
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
59
|
59
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
59
|
59
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
60
|
60
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
60
|
60
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
60
|
60
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
