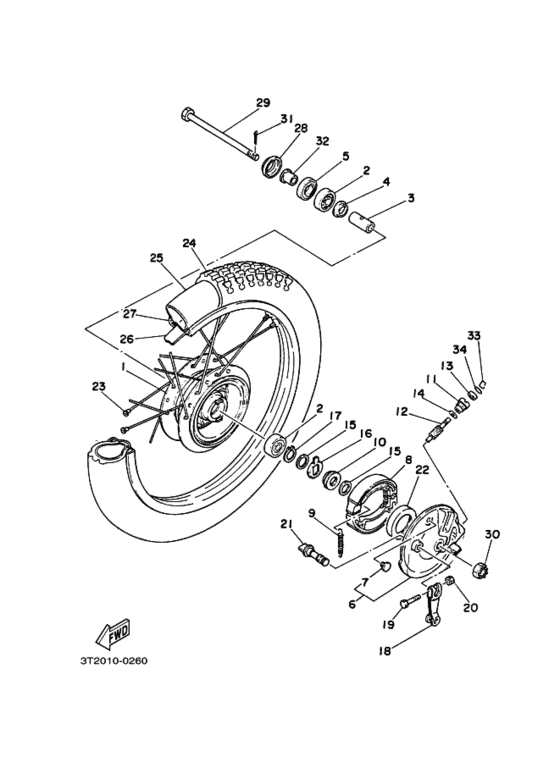

Front wheel Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-35 Hub, Frontシルパー |
248-25111-00-35 |
US $196.19 |
||
| replacement | |||||
|
1
|
1
248-25111-10-00 Hub, Frontシルパー |
248-25111-10-00 |
from US $98.98 |
||
|
2
|
2
93306-30103-00 Bearingベアリング ; Ｂ６３０１Ｚ |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
2
|
2
933-06301-02-00 Bearingベアリング ; Ｂ６３０１Ｚ |
933-06301-02-00 |
from US $12.75 |
||
|
3
|
3
90560-12138-00 Spacerスペーサ; |
90560-12138-00 |
from US $4.96 |
||
|
4
|
4
109-25315-00-00 Flange, Spacerフランジ，スペーサ; |
109-25315-00-00 |
from US $2.55 |
||
|
5
|
5
93102-18008-00 Oil Sealオイルシール; |
93102-18008-00 |
from US $7.23 |
||
|
6
|
6
3T2-25016-00-35
Brake Shoe Plate Assy
ブレーキシユープレートアセンブリ; シルバー |
3T2-25016-00-35 |
— | ||
|
7
|
7
90480-10068-00 Grommet．グロメツト; |
90480-10068-00 |
from US $1.81 |
||
|
8
|
8
326-25330-10-00
Brake Shoe Comp
ブレーキシユーコンプリート; |
326-25330-10-00 |
— | ||
| replacements | |||||
|
8
|
8
4BE-W253E-00-00 Brake Shoe Kitブレーキシユーコンプリート; |
4BE-W253E-00-00 |
from US $27.27 |
||
|
8
|
8
4KN-W253E-11-00 Brake Shoe Kitブレーキシユーコンプリート; |
4KN-W253E-11-00 |
from US $28.08 |
||
|
8
|
8
326-W2536-00-00
Brakeshoe Set-2Pcs (326-25330-1
ブレーキシユーコンプリート; |
326-W2536-00-00 |
— | ||
|
9
|
9
90506-16150-00 Spring, Tension (566)スプリング，テンシヨン; |
90506-16150-00 |
from US $3.97 |
||
|
10
|
10
1T9-25135-00-00
Gear, Drive
|
1T9-25135-00-00 |
— | ||
|
11
|
11
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
12
|
12
1T9-25138-00-00
Gear, Meter
ギア，メータ; |
1T9-25138-00-00 |
— | ||
|
13
|
13
93104-07003-00 Oil Seal, So-Typeオイルシール; |
93104-07003-00 |
from US $1.84 |
||
|
14
|
14
90201-07076-00 Washer, Plateワツシヤ，プレート; |
90201-07076-00 |
from US $1.70 |
||
|
15
|
15
90201-20269-00 Washer, Plateワツシヤ，プレート; |
90201-20269-00 |
from US $1.70 |
||
|
16
|
16
183-25149-00-00 Clutch, Meterクラツチ，メータ; |
183-25149-00-00 |
from US $2.98 |
||
|
17
|
17
93410-20009-00 Circlipサークリツプ; |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
99009-20400-00 Circlipサークリツプ; |
99009-20400-00 |
from US $1.56 |
||
|
18
|
18
2N3-25155-00-00 Lever, Camshaft 1レバー，カムシヤフト １; |
2N3-25155-00-00 |
from US $21.96 |
||
|
19
|
19
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
20
|
20
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
538-25351-01-00 Camshaft |
538-25351-01-00 |
from US $27.77 |
||
| replacement | |||||
|
21
|
21
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
22
|
22
93105-47007-00 Oil Sealオイルシール; |
93105-47007-00 |
from US $6.06 |
||
|
23
|
23
276-25104-00-00 Spoke Set, Frontスポークセツト，フロント; |
276-25104-00-00 |
US $85.76 |
||
| replacement | |||||
|
23
|
23
276-25104-40-00
Spoke Set
スポークセツト，フロント; |
276-25104-40-00 |
— | ||
|
24
|
24
94125-18264-00
Tire (2.50-18)
．タイヤ ; ２５０−１８ |
94125-18264-00 |
— | ||
|
25
|
25
94225-18076-00 Tube (2.50-18 Tr4)．チユーブ ; ２５０−１８ |
94225-18076-00 |
US $32.49 |
||
| replacement | |||||
|
25
|
25
94225-18194-00 Tube．チユーブ ; ２５０−１８ |
94225-18194-00 |
US $38.75 |
||
|
26
|
26
94325-18059-00 Band, Rim．バンド，リム ; ２５０−１８ |
94325-18059-00 |
US $4.39 |
||
|
27
|
27
944-14180-07-00
Rim (1.40-18)
．リム ; １４０−１８ |
944-14180-07-00 |
— | ||
| replacement | |||||
|
27
|
27
944-14185-45-00 Rim (1.40-18), Union Cycle．リム ; １４０−１８ |
944-14185-45-00 |
from US $89.94 |
||
|
28
|
28
481-25118-01-00 Cover, Hub Dustカバー，ハブダスト; |
481-25118-01-00 |
from US $6.23 |
||
|
29
|
29
901-02120-15-00 Bolt, With Holeボルト，ウイズホール; |
901-02120-15-00 |
from US $17.42 |
||
|
30
|
30
95301-12900-00 Nut, Castleナツト，スロツテド; |
95301-12900-00 |
US $3.37 |
||
| replacement | |||||
|
30
|
30
90171-12058-00 Nut, Castleナツト，スロツテド; |
90171-12058-00 |
US $3.37 |
||
|
31
|
31
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
32
|
32
90387-12616-00 Collarカラー; |
90387-12616-00 |
from US $8.38 |
||
|
33
|
33
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
34
|
34
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
34
|
34
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
