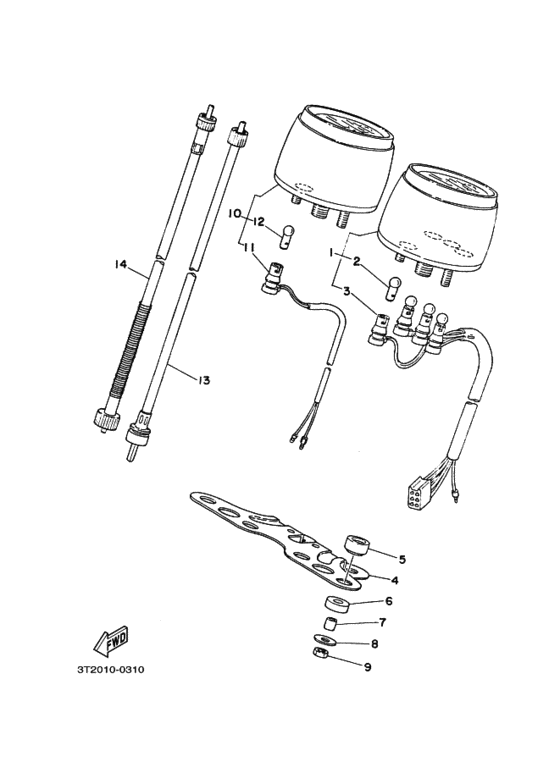

Meter Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M7-83510-50-00
Speedometer Assy
スピードメータアセンブリ; |
3M7-83510-50-00 |
— | ||
|
2
|
2
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-00 |
US $3.29 |
||
| replacement | |||||
|
2
|
2
122-83516-10-XX
Bulb
．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-XX |
— | ||
|
3
|
3
3M7-83520-00-00
Socket Cord Assy
．ソケツトアセンブリ; |
3M7-83520-00-00 |
— | ||
|
4
|
4
3T2-83519-01-98
Bracket, Meter
ブラケツト，メータ; ツヤケシブラツク |
3T2-83519-01-98 |
— | ||
|
5
|
5
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
6
|
6
355-83526-00-00 Damper 2ダンパ ２; |
355-83526-00-00 |
from US $2.09 |
||
|
7
|
7
355-83522-00-00 Collar．カラー; |
355-83522-00-00 |
US $9.79 |
||
|
8
|
8
355-83524-00-00 Washer, Special |
355-83524-00-00 |
from US $1.80 |
||
| replacement | |||||
|
8
|
8
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $1.80 |
||
|
9
|
9
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
10
|
10
3M8-83540-00-00
Tachometer Assy
タコメータアセンブリ; |
3M8-83540-00-00 |
— | ||
|
11
|
11
2L4-83536-00-00
Socket, Meter
．ソケツト，メータ; |
2L4-83536-00-00 |
— | ||
|
12
|
12
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-00 |
US $3.29 |
||
| replacement | |||||
|
12
|
12
122-83516-10-XX
Bulb
．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-XX |
— | ||
|
13
|
13
1T9-83550-10-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
1T9-83550-10-00 |
US $32.67 |
||
| replacement | |||||
|
13
|
13
2A1-83550-10-00
Speedometer Cable
スピードメータケーブルアセンブリ; |
2A1-83550-10-00 |
— | ||
|
14
|
14
3T2-83560-00-00 Tachometer Cableタコメータケーブルアセンブリ; |
3T2-83560-00-00 |
from US $18.81 |
||
