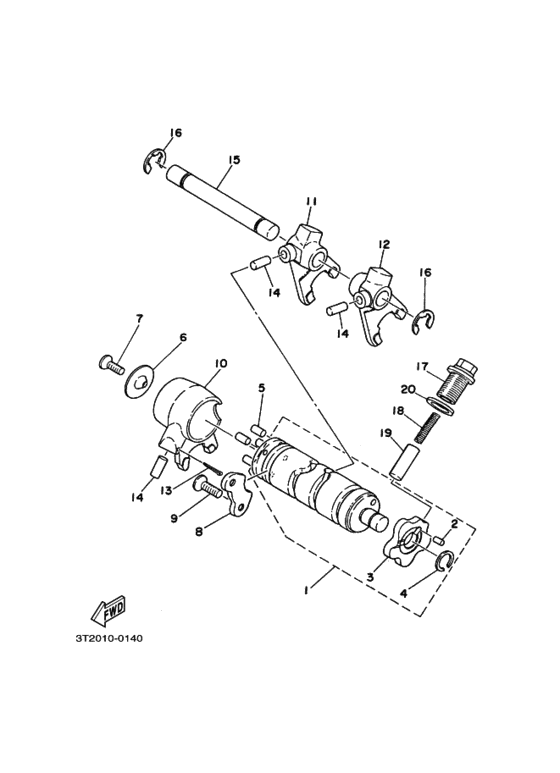

Shift Cam & Fork Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-18540-01-00
Shift Cam Assy
|
353-18540-01-00 |
— | ||
| replacements | |||||
|
1
|
1
4U5-18540-00-00
Shift Cam Assembly
|
4U5-18540-00-00 |
— | ||
|
1
|
1
353-18540-02-00
Shift Cam Assy
|
353-18540-02-00 |
— | ||
|
2
|
2
93604-08071-00 Pin, Dowel．ピン，ダウエル; |
93604-08071-00 |
from US $1.45 |
||
|
3
|
3
353-18141-01-00
Plate, Stopper
．プレート，ストツパ; |
353-18141-01-00 |
— | ||
|
4
|
4
93440-12026-00
Circlip, Outer
．サークリツプ; |
93440-12026-00 |
— | ||
|
5
|
5
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
6
|
6
214-18561-00-00
Plate, Side 1
プレート，サイド １; |
214-18561-00-00 |
— | ||
|
7
|
7
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
7
|
7
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
8
|
8
353-18562-00-00
Plate, Stopper 2
プレート，ストツパ ２; |
353-18562-00-00 |
— | ||
|
9
|
9
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
10
|
10
353-18511-01-00
Fork, Shift 1
フオーク，シフト １; |
353-18511-01-00 |
— | ||
|
11
|
11
353-18512-01-00
Fork, Shift 2
フオーク，シフト ２; |
353-18512-01-00 |
— | ||
|
12
|
12
353-18513-01-00
Fork, Shift 3
フオーク，シフト ３; |
353-18513-01-00 |
— | ||
|
13
|
13
91401-25017-00 Pin, Cotter |
91401-25017-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
14
|
14
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
15
|
15
214-18531-00-00 Bar, Shift Fork Guide 1バー，シフトフオークガイド １; |
214-18531-00-00 |
US $18.42 |
||
|
16
|
16
93430-10016-00 Circlipサークリツプ; |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.39 |
||
|
17
|
17
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
18
|
18
90501-09292-00
Spring, Compression
|
90501-09292-00 |
— | ||
|
19
|
19
353-18547-00-00
Stopper, Cam
|
353-18547-00-00 |
— | ||
|
20
|
20
137-15353-00-00
Gasket, Drain
ガスケツト，ドレーン; |
137-15353-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4F4-14766-00-00 Washer, Protector (Gasket)ガスケツト，ドレーン; |
4F4-14766-00-00 |
from US $5.95 |
||
