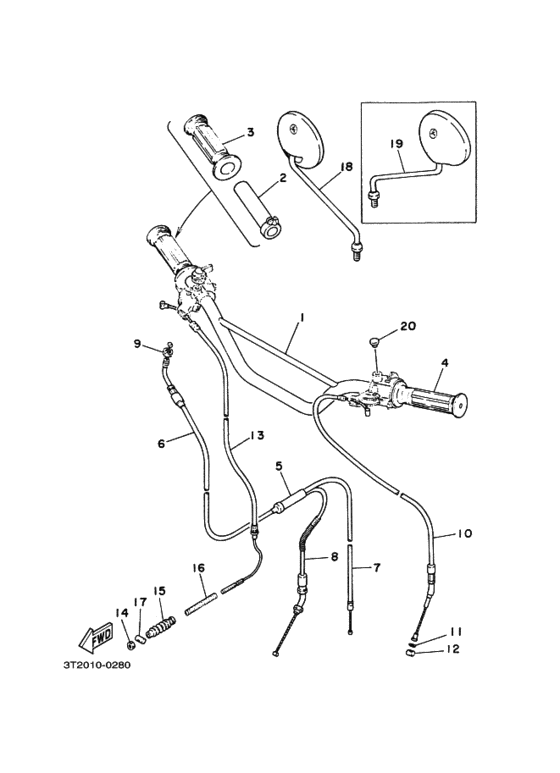

Steering handle & cable Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-26111-00-00
Handlebar
ハンドルバー; |
3T2-26111-00-00 |
— | ||
|
2
|
2
1V1-26243-00-00 Tube, Thrtl Guideチユーブ，スロツトルガイド; |
1V1-26243-00-00 |
from US $15.14 |
||
|
3
|
3
2N3-26242-00-00 Grip Rh (R.h)グリツプ ; ライト |
2N3-26242-00-00 |
from US $6.23 |
||
| replacement | |||||
|
3
|
3
2N3-26242-01-00 GRIP RIGHTグリツプ ; ライト |
2N3-26242-01-00 |
US $5.80 |
||
|
4
|
4
2N3-26241-00-00 Gripグリツプ ; レフト |
2N3-26241-00-00 |
from US $9.77 |
||
| replacement | |||||
|
4
|
4
2N3-26241-01-00 GRIPグリツプ ; レフト |
2N3-26241-01-00 |
US $9.77 |
||
|
5
|
5
266-26261-00-00 Connector, Cableコネクタ，ケーブル; |
266-26261-00-00 |
from US $17.80 |
||
| replacement | |||||
|
5
|
5
4U1-26261-00-00 Connector, Cableコネクタ，ケーブル; |
4U1-26261-00-00 |
from US $6.35 |
||
|
6
|
6
3T2-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
3T2-26311-00-00 |
— | ||
|
7
|
7
3T2-26312-00-00 Cable, Throttle 2ケーブル，スロツトル ２; |
3T2-26312-00-00 |
US $9.13 |
||
| replacement | |||||
|
7
|
7
336-26312-00-00 Cable, Throttle 2ケーブル，スロツトル ２; |
336-26312-00-00 |
US $7.78 |
||
|
8
|
8
3T2-26321-00-00
Cable, Pump
ケーブル，ポンプ; |
3T2-26321-00-00 |
— | ||
|
9
|
9
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $2.23 |
||
|
10
|
10
3T2-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
3T2-26335-00-00 |
— | ||
|
11
|
11
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $0.90 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.80 |
||
|
11
|
11
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $0.90 |
||
|
12
|
12
164-26363-00-00 End, Cableエンド，ケーブル; |
164-26363-00-00 |
from US $1.22 |
||
|
13
|
13
3T2-26341-01-00
Wire, Brake 1
ケーブル，ブレーキ; |
3T2-26341-01-00 |
— | ||
|
14
|
14
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.43 |
||
| replacement | |||||
|
14
|
14
90179-06411-00 Nut |
90179-06411-00 |
from US $1.43 |
||
|
15
|
15
3M7-26342-00-00 Boot, Cableブーツ，ケーブル; |
3M7-26342-00-00 |
US $6.31 |
||
|
16
|
16
90501-09052-00 Spring, Compression |
90501-09052-00 |
from US $3.59 |
||
|
17
|
17
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.50 |
||
|
18
|
18
1Y1-26290-00-00 Mirror Assembly Rh (TOYO)ミラーアセンブリ; |
1Y1-26290-00-00 |
from US $17.95 |
||
|
19
|
19
1Y1-26290-10-00 Mirror Assembly Lh (TOYO)ミラーアセンブリ; オプシヨナルパーツ |
1Y1-26290-10-00 |
from US $17.14 |
||
|
20
|
20
90338-09046-00 Plug |
90338-09046-00 |
US $2.84 |
||
| replacement | |||||
|
20
|
20
90338-09012-00 Plug |
90338-09012-00 |
from US $2.84 |
||
