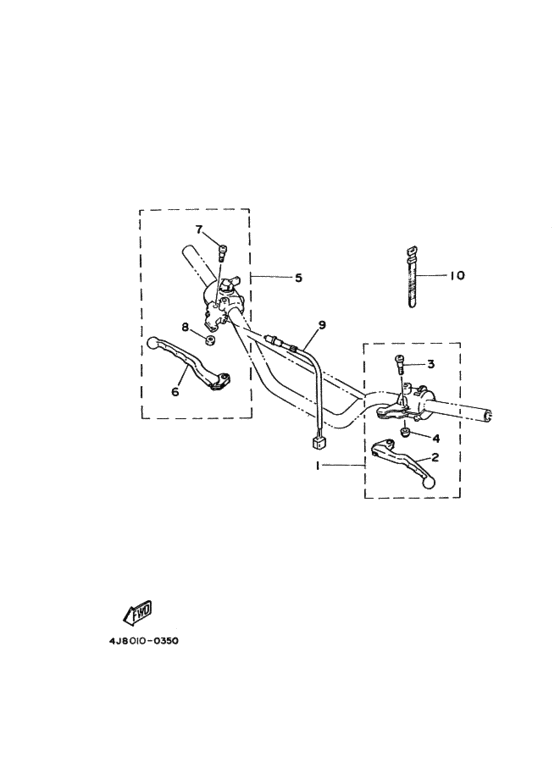

Handle switch & lever Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G3-82910-00-00
Lever Holder Assy (Left)
レバーホルダアセンブリ １; |
4G3-82910-00-00 |
— | ||
|
2
|
2
4G3-83912-00-00 Lever L．レバー １; |
4G3-83912-00-00 |
from US $22.29 |
||
|
3
|
3
4G3-83915-00-00 Screw, Spec''l Shape．スクリユ，レバーフイツテイング; |
4G3-83915-00-00 |
from US $2.39 |
||
| replacement | |||||
|
3
|
3
90149-05120-00 Screw, Spec''l Shape．スクリユ，レバーフイツテイング; |
90149-05120-00 |
from US $2.39 |
||
|
4
|
4
95601-05100-00 Nut, U．ナツト，Ｕ; |
95601-05100-00 |
US $1.94 |
||
| replacement | |||||
|
4
|
4
95617-05100-00 Nut, U．ナツト，Ｕ; |
95617-05100-00 |
from US $1.94 |
||
|
5
|
5
4G3-W8292-30-00
Lever Holder Assy (Right)
レバーホルダアセンブリ ; ライト |
4G3-W8292-30-00 |
— | ||
|
6
|
6
4G3-83922-00-00 Lever R．レバー ２; |
4G3-83922-00-00 |
from US $14.36 |
||
|
7
|
7
4G3-83915-00-00 Screw, Spec''l Shape．スクリユ，レバーフイツテイング; |
4G3-83915-00-00 |
from US $2.39 |
||
| replacement | |||||
|
7
|
7
90149-05120-00 Screw, Spec''l Shape．スクリユ，レバーフイツテイング; |
90149-05120-00 |
from US $2.39 |
||
|
8
|
8
95601-05100-00 Nut, U．ナツト，Ｕ; |
95601-05100-00 |
US $1.94 |
||
| replacement | |||||
|
8
|
8
95617-05100-00 Nut, U．ナツト，Ｕ; |
95617-05100-00 |
from US $1.94 |
||
|
9
|
9
361-83980-30-00 Front Stop Switch Assy |
361-83980-30-00 |
from US $25.58 |
||
| replacement | |||||
|
9
|
9
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
10
|
10
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.50 |
||
