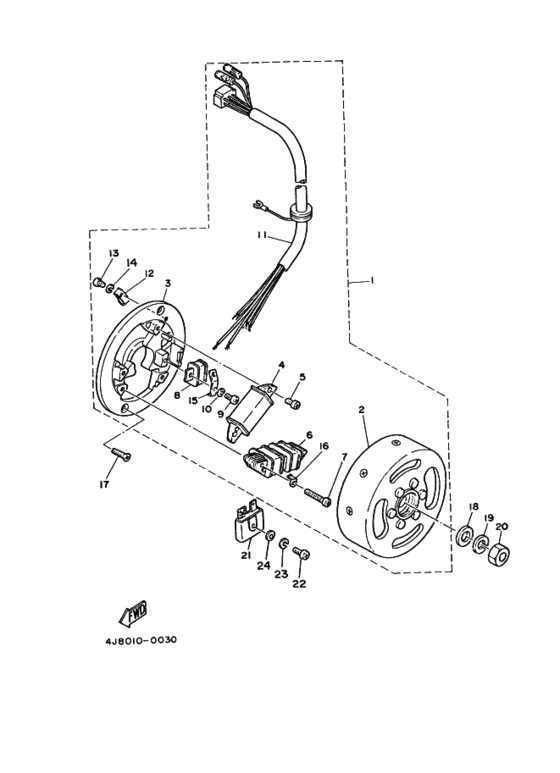

C.d.iﾏｸﾞﾈﾄｳ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Muscat Green (MUG; 005G)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4J8-85500-M0-00
C.d.i. Magneto Assy
Ｃ．Ｄ．Ｉマグネトアセンブリ; |
4J8-85500-M0-00 |
— | ||
|
2
|
2
4J8-85550-M0-00
Rotor Assy
．ロータアセンブリ; |
4J8-85550-M0-00 |
— | ||
|
3
|
3
3E5-85561-M1-00
Base, Magneto
．ベース，マグネト; |
3E5-85561-M1-00 |
— | ||
|
4
|
4
2T4-85520-M1-00 Coil, Charge．コイル，チヤージ; |
2T4-85520-M1-00 |
from US $80.19 |
||
| replacements | |||||
|
4
|
4
4Y4-85520-M0-00 Coil, Charge．コイル，チヤージ; |
4Y4-85520-M0-00 |
from US $72 |
||
|
4
|
4
4Y4-85520-M1-00 COIL CHARGE．コイル，チヤージ; |
4Y4-85520-M1-00 |
from US $37.38 |
||
|
5
|
5
98501-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
5
|
5
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
6
|
6
4A5-81313-M0-00
Coil, Lighting 1
．コイル，ライテイング １; |
4A5-81313-M0-00 |
— | ||
|
7
|
7
98501-04025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-04025-00 |
US $1.21 |
||
| replacement | |||||
|
7
|
7
98517-04025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04025-00 |
from US $1.21 |
||
|
8
|
8
3E1-85580-M0-00 Coil, Pulser．コイル，パンサ; |
3E1-85580-M0-00 |
US $37.44 |
||
|
9
|
9
985-03040-10-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-03040-10-00 |
— | ||
| replacement | |||||
|
9
|
9
985-80040-10-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80040-10-00 |
from US $1.07 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
4G3-8131X-M0-00
Cord Assy
．コード，アセンブリ; |
4G3-8131X-M0-00 |
— | ||
|
12
|
12
4G3-81328-00-00
Clamp
．クランプ; |
4G3-81328-00-00 |
— | ||
|
13
|
13
985-01040-06-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-06-00 |
— | ||
| replacements | |||||
|
13
|
13
985-17040-16-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-17040-16-00 |
from US $1.52 |
||
|
13
|
13
901-59041-44-00
Screw, With Washer
．スクリユ，パンヘツド; |
901-59041-44-00 |
— | ||
|
13
|
13
98517-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04006-00 |
from US $1.28 |
||
|
13
|
13
99999-04427-00 Screw,pan Head W/washer．スクリユ，パンヘツド; |
99999-04427-00 |
US $3.04 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
2T4-85568-M1-00 Terminal, Earth 1．ターミナル，アース １; |
2T4-85568-M1-00 |
from US $3.26 |
||
|
16
|
16
2T4-85569-M1-00 Terminal, Earth 2．ターミナル，アース ２; |
2T4-85569-M1-00 |
US $3.26 |
||
|
17
|
17
98701-05015-00 Screw, Flat Head |
98701-05015-00 |
from US $2.27 |
||
| replacements | |||||
|
17
|
17
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
17
|
17
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
18
|
18
90201-12535-00 Washer, Plateワツシヤ，プレート; |
90201-12535-00 |
from US $2.27 |
||
|
19
|
19
929-01121-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01121-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-12100-00 Washer, Springワツシヤ，スプリング; |
92990-12100-00 |
from US $2.55 |
||
|
20
|
20
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
|
21
|
21
353-81970-50-00 Rectifier AssyＵＲ |
353-81970-50-00 |
US $40.62 |
||
| replacements | |||||
|
21
|
21
353-81970-M0-00 Rectifier AssyＵＲ |
353-81970-M0-00 |
from US $40.62 |
||
|
21
|
21
353-81970-M1-00 Rectifier AssyＵＲ |
353-81970-M1-00 |
US $17.99 |
||
|
22
|
22
353-81970-63-00 Rectifier AssemblyＵＲ |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
22
|
22
353-81970-M0-00 Rectifier AssyＵＲ |
353-81970-M0-00 |
from US $40.62 |
||
|
22
|
22
353-81970-M1-00 Rectifier AssyＵＲ |
353-81970-M1-00 |
US $17.99 |
||
|
22
|
22
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
22
|
22
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
23
|
23
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
24
|
24
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
