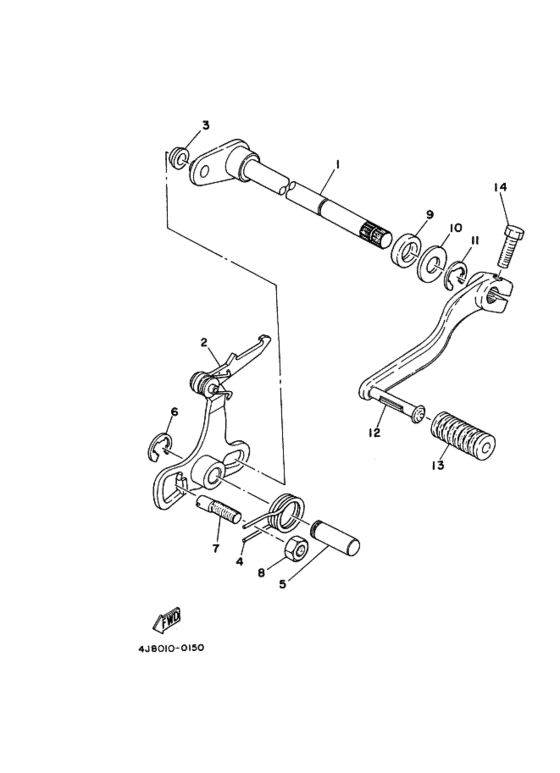

ｼﾌﾄｼﾔﾌﾄ. ﾍﾟﾀﾞﾙ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Muscat Green (MUG; 005G)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-18101-00-00
Shift Shaft Assy
|
353-18101-00-00 |
— | ||
| replacement | |||||
|
1
|
1
353-18101-03-00
Shift Shaft Assembly
|
353-18101-03-00 |
— | ||
|
2
|
2
353-18120-00-00
Shift Lever Assembly
シフトレバーアセンブリ; |
353-18120-00-00 |
— | ||
|
3
|
3
214-18178-00-00 Roller, Shift Leverローラ，シフトレバー; |
214-18178-00-00 |
US $17.75 |
||
|
4
|
4
90508-32054-00 Spring, Torsionスプリング，トーシヨン; |
90508-32054-00 |
from US $3.85 |
||
|
5
|
5
367-18197-00-00
Shaft
|
367-18197-00-00 |
— | ||
|
6
|
6
93430-10016-00 Circlipサークリツプ; |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.39 |
||
|
7
|
7
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
8
|
8
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
9
|
9
931-01120-04-00
Oil Seal (Sd 12-22-5 Hs)
オイルシール; |
931-01120-04-00 |
— | ||
| replacements | |||||
|
9
|
9
931-02123-21-00 Oil Sealオイルシール; |
931-02123-21-00 |
from US $5.41 |
||
|
9
|
9
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)オイルシール; |
93102-12106-00 |
from US $3.72 |
||
|
10
|
10
90201-12575-00 Washer, Plate (353)ワツシヤ，プレート; |
90201-12575-00 |
from US $1.70 |
||
|
11
|
11
93430-10016-00 Circlipサークリツプ; |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.39 |
||
|
12
|
12
3T2-18111-00-00 Pedal, Shift |
3T2-18111-00-00 |
US $74.88 |
||
|
13
|
13
132-18113-01-00 Cover, Shift Pedalカバー，シフトペダル; |
132-18113-01-00 |
from US $2.02 |
||
|
14
|
14
97321-06020-00 Bolt |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
