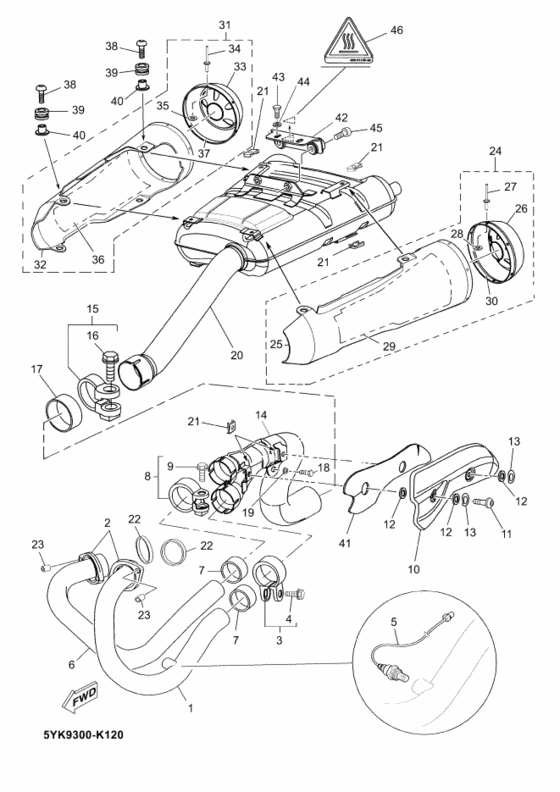

Exhaust Diagram Yamaha MT03 MT-03
- Year
- 2012
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2BF1
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- MT03
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5YK-E4611-10-00
Pipe, Exhaust 1
|
5YK-E4611-10-00 |
— | ||
|
2
|
2
5YK-E4612-00-00
Nut, Ring
|
5YK-E4612-00-00 |
— | ||
|
3
|
3
5YK-E477R-00-00
Band 1
|
5YK-E477R-00-00 |
— | ||
|
4
|
4
90105-08X20-00
Bolt, Flange
|
90105-08X20-00 |
— | ||
|
5
|
5
1B9-8592A-00-00 Sensor, Oxygen |
1B9-8592A-00-00 |
from US $211.31 |
||
|
6
|
6
5YK-E4621-00-00
Pipe, Exhaust 2
|
5YK-E4621-00-00 |
— | ||
|
7
|
7
4EL-14714-00-00 Gasket, Muffler |
4EL-14714-00-00 |
from US $24.21 |
||
|
8
|
8
5YK-E477T-00-00
Band 2
|
5YK-E477T-00-00 |
— | ||
|
9
|
9
90105-08X20-00
Bolt, Flange
|
90105-08X20-00 |
— | ||
|
10
|
10
5YK-E4628-00-00
Protector, Exhaust Pipe
|
5YK-E4628-00-00 |
— | ||
|
11
|
11
90111-06X17-00 Bolt,hex. Socket Button |
90111-06X17-00 |
US $2.13 |
||
|
12
|
12
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
13
|
13
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
14
|
14
5YK-E4631-10-00
Pipe, Exhaust 3
|
5YK-E4631-10-00 |
— | ||
|
15
|
15
5YK-E4715-00-00
Band, Muffler
|
5YK-E4715-00-00 |
— | ||
|
16
|
16
90105-08X20-00
Bolt, Flange
|
90105-08X20-00 |
— | ||
|
17
|
17
5YK-E4714-00-00
Gasket, Muffler
|
5YK-E4714-00-00 |
— | ||
|
18
|
18
91380-08014-00
Bolt
|
91380-08014-00 |
— | ||
|
19
|
19
5CH-E4766-00-00
Washer, Protector
|
5CH-E4766-00-00 |
— | ||
|
20
|
20
5YK-E4710-20-00
Muffler Assy 1
|
5YK-E4710-20-00 |
— | ||
|
21
|
21
2VW-F1736-00-00
Nut,plate
|
2VW-F1736-00-00 |
— | ||
|
22
|
22
3YF-14613-01-00 Gasket, Exhaust Pipe |
3YF-14613-01-00 |
from US $3.38 |
||
|
23
|
23
90179-08442-00 Nut |
90179-08442-00 |
from US $5.38 |
||
|
24
|
24
5YK-E4708-21-00
Protector Assy
|
5YK-E4708-21-00 |
— | ||
|
25
|
25
5YK-E4738-11-00
Protector, Muffler 3
|
5YK-E4738-11-00 |
— | ||
|
26
|
26
5YK-E4799-00-00
Cap
|
5YK-E4799-00-00 |
— | ||
|
27
|
27
90267-40X01-00
Rivet, Blind
|
90267-40X01-00 |
— | ||
|
28
|
28
9290L-04600-00 Washer |
9290L-04600-00 |
US $1.56 |
||
|
29
|
29
5YK-E111B-20-00
Insulator 1
|
5YK-E111B-20-00 |
— | ||
|
30
|
30
5YK-E112B-01-00
Insulator 2
|
5YK-E112B-01-00 |
— | ||
|
31
|
31
5YK-E4708-31-00
Protector Assy
|
5YK-E4708-31-00 |
— | ||
|
32
|
32
5YK-E4738-20-00
Protector, Muffler 3
|
5YK-E4738-20-00 |
— | ||
|
33
|
33
5YK-E4799-00-00
Cap
|
5YK-E4799-00-00 |
— | ||
|
34
|
34
90267-40X01-00
Rivet, Blind
|
90267-40X01-00 |
— | ||
|
35
|
35
9290L-04600-00 Washer |
9290L-04600-00 |
US $1.56 |
||
|
36
|
36
5YK-E111B-30-00
Insulator 1
|
5YK-E111B-30-00 |
— | ||
|
37
|
37
5YK-E112B-01-00
Insulator 2
|
5YK-E112B-01-00 |
— | ||
|
38
|
38
90111-06087-00 Bolt, Hex. Socket Button |
90111-06087-00 |
from US $5.10 |
||
|
39
|
39
90480-12581-00 Grommet |
90480-12581-00 |
from US $7.79 |
||
|
40
|
40
90387-06X36-00
Collar
|
90387-06X36-00 |
— | ||
|
41
|
41
5YK-E113B-01-00
Insulator 3
|
5YK-E113B-01-00 |
— | ||
|
42
|
42
5YK-E4770-00-00
Stay, Muffler 1
|
5YK-E4770-00-00 |
— | ||
|
43
|
43
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
44
|
44
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
45
|
45
91380-08030-00 Bolt |
91380-08030-00 |
US $1.84 |
||
|
46
|
46
5YK-F117B-A0-00
Label, Warning
|
5YK-F117B-A0-00 |
— |
