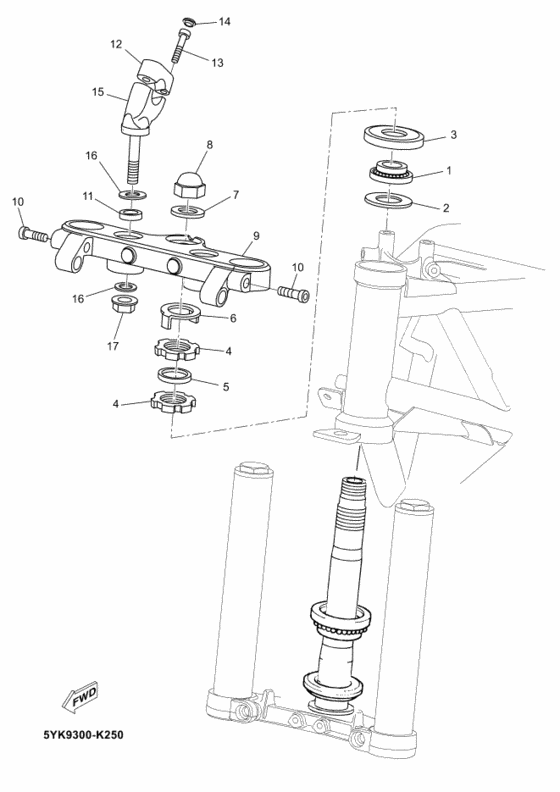

Steering Diagram Yamaha MT03 MT-03
- Year
- 2012
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2BF1
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- MT03
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
2
|
2
90202-24190-00 Washer, Plate |
90202-24190-00 |
from US $1.81 |
||
|
3
|
3
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
6
|
6
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
7
|
7
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
7
|
7
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.86 |
||
|
8
|
8
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.74 |
||
|
9
|
9
5YK-WF341-01-00
Crown, Handle
|
5YK-WF341-01-00 |
— | ||
|
10
|
10
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
11
|
11
5JN-F3445-00-00
Damper
|
5JN-F3445-00-00 |
— | ||
|
12
|
12
5VK-F3441-10-00
Holder, Handle Upper
|
5VK-F3441-10-00 |
— | ||
|
13
|
13
90110-08X09-00 Bolt, Hexagon Socket Head |
90110-08X09-00 |
US $4.53 |
||
|
14
|
14
90338-06004-00 Plug |
90338-06004-00 |
from US $1.94 |
||
|
15
|
15
5YK-F3442-00-00
Holder, Handle Lower
|
5YK-F3442-00-00 |
— | ||
|
16
|
16
902-01101-41-00
Washer, Plate
|
902-01101-41-00 |
— | ||
| replacement | |||||
|
16
|
16
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
17
|
17
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
