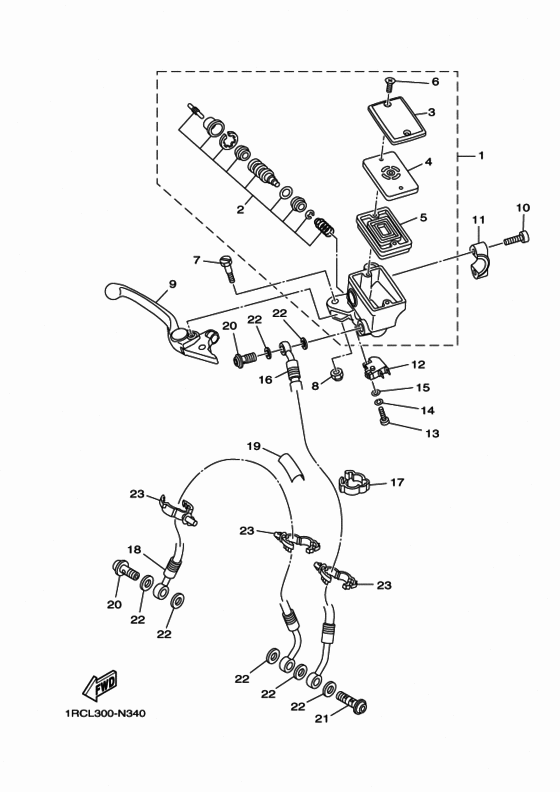

Front master cylinder Diagram Yamaha MT09/ MTN850 MT-09
- Year
- 2014
- Colour
- Mat Gray Metallic 3
- Model code
- 1RCL
- Sales region
- Europe (050)
- Engine Capacity
- 850
- Color Variant
- A
- Model
- MT-09
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RC-2580A-00-00 Master Cylinder Sub Assy 2 |
1RC-2580A-00-00 |
from US $198.95 |
||
|
2
|
2
1MC-25807-00-00 Cylinder Kit, Master |
1MC-25807-00-00 |
from US $24.09 |
||
|
3
|
3
5VS-25852-00-00 Cap, Reservoir |
5VS-25852-00-00 |
from US $8.28 |
||
|
4
|
4
5VS-25855-00-00 Bush, Diaphragm |
5VS-25855-00-00 |
from US $1.70 |
||
|
5
|
5
20S-25854-00-00 Diaphragm, Reservoir |
20S-25854-00-00 |
from US $10.06 |
||
|
6
|
6
5VS-2589H-00-00 Screw |
5VS-2589H-00-00 |
from US $1.56 |
||
|
7
|
7
5VS-2589F-00-00 Bolt, Lever |
5VS-2589F-00-00 |
from US $1.70 |
||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
9
|
9
5VS-83922-00-00 Lever 2 |
5VS-83922-00-00 |
from US $46.70 |
||
|
10
|
10
5VS-26332-00-00 Bolt |
5VS-26332-00-00 |
from US $1.56 |
||
|
11
|
11
5VS-25867-00-00 Bracket, Master Cylinder |
5VS-25867-00-00 |
from US $10.91 |
||
|
12
|
12
1HP-83980-01-00 Front Stop Switch Assy |
1HP-83980-01-00 |
from US $26.92 |
||
| replacement | |||||
|
12
|
12
1HP-83980-03-00 Front Stop Switch Assy |
1HP-83980-03-00 |
from US $26.92 |
||
|
13
|
13
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
15
|
15
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
16
|
16
1RC-25873-00-00 Brake Hose Assy |
1RC-25873-00-00 |
from US $58.99 |
||
| replacement | |||||
|
16
|
16
1RC-2584A-09-00 Brake Hose Assy |
1RC-2584A-09-00 |
from US $47.18 |
||
|
17
|
17
90464-14003-00 Clamp |
90464-14003-00 |
from US $1.70 |
||
|
18
|
18
1RC-25872-00-00 Hose, Brake 1 |
1RC-25872-00-00 |
from US $52.36 |
||
| replacement | |||||
|
18
|
18
1RC-Y258C-00-00 Hose,brake 1 Assy |
1RC-Y258C-00-00 |
from US $41.74 |
||
|
19
|
19
1RC-23472-00-00 Protector |
1RC-23472-00-00 |
from US $3.68 |
||
|
20
|
20
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.55 |
||
|
21
|
21
90401-10042-00 Bolt, Union |
90401-10042-00 |
from US $12.89 |
||
|
22
|
22
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.56 |
||
|
23
|
23
90464-18002-00 Clamp |
90464-18002-00 |
from US $1.70 |
||
