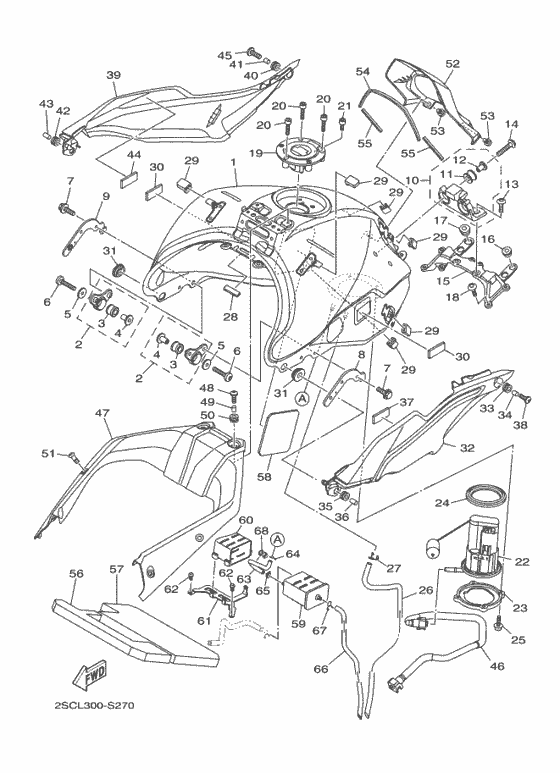

Fuel tank Diagram Yamaha MT09/ MTN850 MT-09 Tracer
- Year
- 2017
- Colour
- Mat Dark Gray Metallic 6
- Model code
- 2SCL
- Sales region
- Europe (060)
- Engine Capacity
- 850
- Color Variant
- A
- Model
- MT-09 Tracer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2PP-24110-00-P6 Fuel Tank CompUR FOR MDNM6 |
2PP-24110-00-P6 |
from US $632.28 |
||
| replacement | |||||
|
1
|
1
2PP-24110-01-P6 UR FOR MDNM6 |
2PP-24110-01-P6 |
US $754.06 |
||
|
2
|
2
23P-24104-01-00
Tank Bracket Assy
|
23P-24104-01-00 |
— | ||
| replacement | |||||
|
2
|
2
23P-24104-00-00 Tank Bracket Assy |
23P-24104-00-00 |
from US $27.63 |
||
|
3
|
3
904-80180-08-00 Grommet |
904-80180-08-00 |
from US $1.98 |
||
|
4
|
4
903-87062-66-00 Collar |
903-87062-66-00 |
from US $4.68 |
||
|
5
|
5
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
6
|
6
92012-06035-00 Bolt, Button Head |
92012-06035-00 |
from US $1.56 |
||
|
7
|
7
90119-06200-00 Bolt, With Washer |
90119-06200-00 |
from US $1.56 |
||
|
8
|
8
2PP-2411F-00-00 Plate, Fitting |
2PP-2411F-00-00 |
from US $6.52 |
||
|
9
|
9
2PP-2411L-00-00 Hook Tank Fitting |
2PP-2411L-00-00 |
from US $6.52 |
||
|
10
|
10
2PP-24105-00-00 Tank Bracket Assy 2 |
2PP-24105-00-00 |
from US $27.49 |
||
|
11
|
11
3D7-24339-00-00 Grommet |
3D7-24339-00-00 |
from US $2.69 |
||
|
12
|
12
90387-06136-00 Collar |
90387-06136-00 |
from US $1.98 |
||
|
13
|
13
901-11061-36-00 Bolt,0Hex. Socket Button |
901-11061-36-00 |
from US $1.42 |
||
|
14
|
14
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
14
|
14
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
15
|
15
2PP-2413Y-00-00 Bracket, Tank Fitting |
2PP-2413Y-00-00 |
from US $33.15 |
||
|
16
|
16
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
16
|
16
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
17
|
17
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
18
|
18
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.56 |
||
|
19
|
19
39P-24602-10-00 Cap Assy |
39P-24602-10-00 |
from US $174.08 |
||
|
20
|
20
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
21
|
21
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
22
|
22
1RC-13907-00-00
Fuel Pump
|
1RC-13907-00-00 |
— | ||
| replacements | |||||
|
22
|
22
1RC-13907-01-00
Fuel Pump
|
1RC-13907-01-00 |
— | ||
|
22
|
22
1RC-13907-10-00 Fuel Pump |
1RC-13907-10-00 |
from US $462.52 |
||
|
23
|
23
1RC-24491-00-00 Bracket, Fuel Pump |
1RC-24491-00-00 |
from US $15.30 |
||
|
24
|
24
1RC-24486-00-00 O-Ring |
1RC-24486-00-00 |
from US $14.59 |
||
|
25
|
25
90110-05028-00 Bolt, Hexagon Socket Head |
90110-05028-00 |
from US $1.70 |
||
|
26
|
26
1RC-24315-00-00 Pipe 5 |
1RC-24315-00-00 |
from US $10.77 |
||
|
27
|
27
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
27
|
27
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
28
|
28
2S3-28347-00-00 Mole 3 |
2S3-28347-00-00 |
from US $2.41 |
||
|
29
|
29
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
30
|
30
2PP-2411G-00-00 Hook, Side Cover 1 |
2PP-2411G-00-00 |
from US $5.81 |
||
|
31
|
31
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
32
|
32
2PP-24129-01-00 COVER, SIDE 1 |
2PP-24129-01-00 |
from US $34.71 |
||
|
33
|
33
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
34
|
34
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
35
|
35
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
36
|
36
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
37
|
37
2PP-2411G-00-00 Hook, Side Cover 1 |
2PP-2411G-00-00 |
from US $5.81 |
||
|
38
|
38
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
39
|
39
2PP-24139-01-00 COVER, SIDE 2 |
2PP-24139-01-00 |
from US $34.71 |
||
|
40
|
40
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
41
|
41
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
42
|
42
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
43
|
43
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
44
|
44
2PP-2411G-00-00 Hook, Side Cover 1 |
2PP-2411G-00-00 |
from US $5.81 |
||
|
45
|
45
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
46
|
46
1RC-13971-10-00 Pipe, Fuel 1 |
1RC-13971-10-00 |
from US $58.99 |
||
| replacement | |||||
|
46
|
46
1RC-13971-11-00 Pipe, Fuel 1 |
1RC-13971-11-00 |
from US $58.99 |
||
|
47
|
47
2PP-241B1-00-00 Cover, Tank |
2PP-241B1-00-00 |
from US $22.67 |
||
|
48
|
48
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
49
|
49
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
50
|
50
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
51
|
51
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $9.07 |
||
|
52
|
52
2PP-24141-00-00 Protector, Fuel Tank |
2PP-24141-00-00 |
from US $18.28 |
||
|
53
|
53
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
54
|
54
2C0-2414H-00-00 Damper, Plate 1 |
2C0-2414H-00-00 |
from US $1.70 |
||
|
55
|
55
3P6-2414J-00-00 Damper, Plate 2 |
3P6-2414J-00-00 |
from US $1.84 |
||
|
56
|
56
2PP-2414H-00-00 Damper, Plate 1 |
2PP-2414H-00-00 |
from US $27.06 |
||
|
57
|
57
2PP-2414J-00-00 Damper, Plate 2 |
2PP-2414J-00-00 |
from US $7.23 |
||
|
58
|
58
BS2-24141-00-00 PROTECTOR, FUEL TANK |
BS2-24141-00-00 |
from US $9.35 |
||
|
59
|
59
2CR-24170-00-00 Canister Assy |
2CR-24170-00-00 |
from US $342.64 |
||
|
60
|
60
B90-24183-00-00 Damper, Locating 3 |
B90-24183-00-00 |
from US $15.87 |
||
|
61
|
61
B90-2419F-00-00 Bracket, Canistor |
B90-2419F-00-00 |
from US $9.49 |
||
|
62
|
62
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
63
|
63
B90-24313-00-00 Pipe 3 |
B90-24313-00-00 |
from US $7.79 |
||
|
64
|
64
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
64
|
64
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
65
|
65
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
66
|
66
BS2-24321-00-00 PIPE 10 |
BS2-24321-00-00 |
from US $1.28 |
||
|
67
|
67
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
67
|
67
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
67
|
67
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
68
|
68
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.66 |
||
