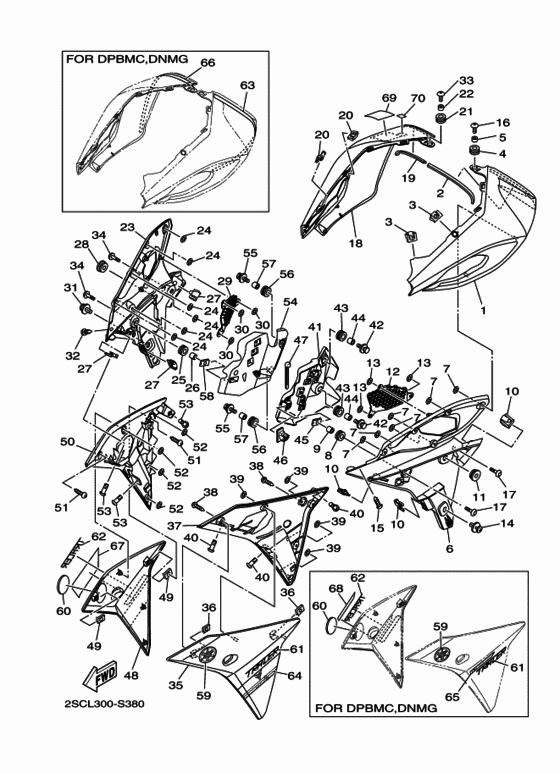

Cowling Diagram Yamaha MT09/ MTN850 MT-09 Tracer
- Year
- 2017
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2SCL
- Sales region
- Europe (060)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- MT-09 Tracer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2PP-28219-00-P7 Cover 1FOR DPBMC |
2PP-28219-00-P7 |
US $164.41 |
||
|
2
|
2
2C0-2174X-00-00 Damper |
2C0-2174X-00-00 |
from US $1.70 |
||
|
3
|
3
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
4
|
4
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
5
|
5
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
6
|
6
2PP-2836K-00-00 Panel, Inner 1 |
2PP-2836K-00-00 |
from US $150.59 |
||
|
7
|
7
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
8
|
8
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
9
|
9
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
10
|
10
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
11
|
11
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
12
|
12
2PP-2837N-00-00 Grill, Air Intake 1 |
2PP-2837N-00-00 |
from US $3.54 |
||
|
13
|
13
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
14
|
14
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
15
|
15
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
16
|
16
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
17
|
17
90111-05026-00 Bolt, Hex. Socket Button |
90111-05026-00 |
from US $1.70 |
||
|
18
|
18
2PP-28229-00-P7 Cover 2FOR DPBMC |
2PP-28229-00-P7 |
US $179.61 |
||
|
19
|
19
2C0-2174X-00-00 Damper |
2C0-2174X-00-00 |
from US $1.70 |
||
|
20
|
20
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
21
|
21
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
22
|
22
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
23
|
23
2PP-2836L-00-00 Panel, Inner 2 |
2PP-2836L-00-00 |
from US $150.59 |
||
|
24
|
24
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
25
|
25
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
26
|
26
903-87061-1W-00 Collar |
903-87061-1W-00 |
from US $3.40 |
||
|
27
|
27
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
28
|
28
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
28
|
28
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
29
|
29
2PP-2837R-00-00 Grill, Air Intake 2 |
2PP-2837R-00-00 |
from US $3.54 |
||
|
30
|
30
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
31
|
31
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
32
|
32
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
33
|
33
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
34
|
34
90111-05026-00 Bolt, Hex. Socket Button |
90111-05026-00 |
from US $1.70 |
||
|
35
|
35
2PP-2835U-00-P3 Panel 1FOR DPBMC |
2PP-2835U-00-P3 |
US $137.47 |
||
|
36
|
36
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
37
|
37
2PP-2837L-00-00 Panel, Console 1 |
2PP-2837L-00-00 |
from US $100.86 |
||
|
38
|
38
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
39
|
39
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
40
|
40
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $9.07 |
||
|
41
|
41
2PP-2836H-00-00 Bracket 5 |
2PP-2836H-00-00 |
from US $10.77 |
||
|
42
|
42
901-19062-67-00 Bolt, With Washer |
901-19062-67-00 |
US $1.56 |
||
| replacement | |||||
|
42
|
42
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
43
|
43
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
44
|
44
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
45
|
45
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
45
|
45
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
46
|
46
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
47
|
47
90465-15011-00 Clamp |
90465-15011-00 |
from US $1.84 |
||
|
48
|
48
2PP-2835V-00-P3 Panel 2FOR DPBMC |
2PP-2835V-00-P3 |
US $137.47 |
||
|
49
|
49
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
50
|
50
2PP-2837M-00-00 Panel, Console 2 |
2PP-2837M-00-00 |
from US $100.86 |
||
|
51
|
51
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
52
|
52
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
53
|
53
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $9.07 |
||
|
54
|
54
2PP-2836J-00-00 Bracket 6 |
2PP-2836J-00-00 |
from US $10.77 |
||
|
55
|
55
901-19062-67-00 Bolt, With Washer |
901-19062-67-00 |
US $1.56 |
||
| replacement | |||||
|
55
|
55
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
56
|
56
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
57
|
57
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
58
|
58
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
58
|
58
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
59
|
59
1RC-2413B-00-00 Emblem |
1RC-2413B-00-00 |
from US $17.28 |
||
|
60
|
60
1RC-2413B-00-00 Emblem |
1RC-2413B-00-00 |
from US $17.28 |
||
|
61
|
61
2PP-2839B-00-00 Emblem 3D |
2PP-2839B-00-00 |
from US $29.75 |
||
|
62
|
62
2PP-2839B-00-00 Emblem 3D |
2PP-2839B-00-00 |
from US $29.75 |
||
|
63
|
63
2SC-2832B-00-00 Graphic, 15UR FOR DPBMC |
2SC-2832B-00-00 |
US $42.55 |
||
|
65
|
65
2SC-28328-00-00 EmblemUR FOR DPBMC |
2SC-28328-00-00 |
US $11.76 |
||
|
66
|
66
2SC-2832C-00-00 Graphic, 16UR FOR DPBMC |
2SC-2832C-00-00 |
US $42.55 |
||
|
68
|
68
2SC-28338-00-00 EmblemUR FOR DPBMC |
2SC-28338-00-00 |
US $11.76 |
||
|
69
|
69
4C8-21568-10-00 Label, Warning |
4C8-21568-10-00 |
US $5.38 |
||
|
70
|
70
B88-2817K-00-00 LABEL,FUEL |
B88-2817K-00-00 |
from US $1.28 |
||
