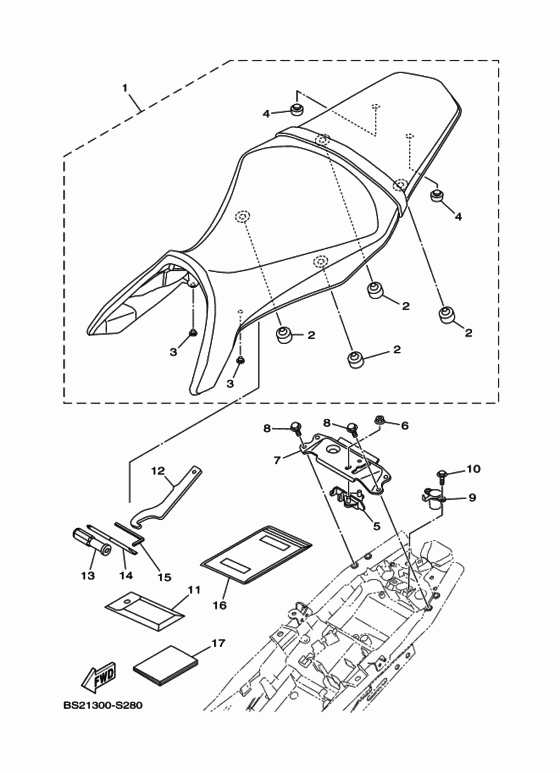

Seat Diagram Yamaha MT09/ MTN850 MT-09
- Year
- 2017
- Colour
- Mat Dark Gray Metallic 6
- Model code
- BS21
- Sales region
- Europe (060)
- Engine Capacity
- 850
- Color Variant
- A
- Model
- MT-09 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BS2-24730-00-00 DOUBLE SEAT ASSY |
BS2-24730-00-00 |
from US $308.41 |
||
| replacement | |||||
|
1
|
1
BS2-24730-01-00 Double Seat Assy |
BS2-24730-01-00 |
from US $313.27 |
||
|
2
|
2
4GL-27114-00-00 Stopper, Main Stand |
4GL-27114-00-00 |
from US $7.23 |
||
|
3
|
3
90338-07157-00 Plug |
90338-07157-00 |
from US $1.98 |
||
|
4
|
4
5UY-27114-00-00 Stopper, Main Stand |
5UY-27114-00-00 |
from US $2.41 |
||
|
5
|
5
B90-24780-00-00 Seat Lock Assy |
B90-24780-00-00 |
from US $19.41 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
1RC-2478X-00-00 Bracket, Seat Lock |
1RC-2478X-00-00 |
from US $18.99 |
||
|
8
|
8
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.56 |
||
|
9
|
9
1RC-W2470-00-00 Rotor Set |
1RC-W2470-00-00 |
from US $37.44 |
||
|
10
|
10
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.34 |
||
|
11
|
11
1RC-28100-00-00 Tool Kit |
1RC-28100-00-00 |
from US $17.71 |
||
|
12
|
12
1RC-28135-00-00 Spanner, Special |
1RC-28135-00-00 |
from US $7.65 |
||
|
13
|
13
2H7-28151-00-00 Grip, Driver |
2H7-28151-00-00 |
from US $1.98 |
||
|
14
|
14
2GV-28152-00-00 Driver |
2GV-28152-00-00 |
from US $2.98 |
||
|
15
|
15
23P-28164-00-00 Wrench, Hexagon 8 |
23P-28164-00-00 |
from US $1.56 |
||
|
16
|
16
4KG-28186-10-00 Pouch |
4KG-28186-10-00 |
from US $7.65 |
||
| replacement | |||||
|
16
|
16
4KG-28186-11-00 Pouch |
4KG-28186-11-00 |
from US $10.06 |
||
|
17
|
17
BS2-28199-E0-00
Manual,owner's
UR ENGLISH |
BS2-28199-E0-00 |
— | ||
|
17
|
17
BS2-28199-F0-00
Manual,owner's
UR FRENCH |
BS2-28199-F0-00 |
— | ||
|
17
|
17
BS2-28199-G0-00
Manual,owner's
UR GERMAN |
BS2-28199-G0-00 |
— | ||
|
17
|
17
BS2-28199-H0-00
Manual,owner's
UR ITALIAN |
BS2-28199-H0-00 |
— | ||
|
17
|
17
BS2-28199-S0-00
Manual,owner's
UR SPANISH |
BS2-28199-S0-00 |
— | ||
|
17
|
17
BS2-F8199-D0-00
Manual,owner's
UR DUTCH |
BS2-F8199-D0-00 |
— | ||
|
17
|
17
BS2-F8199-M0-00
Manual,owner's
UR SWEDISH |
BS2-F8199-M0-00 |
— | ||
|
17
|
17
BS2-F8199-P0-00
Manual,owner's
UR PORTUGUESE |
BS2-F8199-P0-00 |
— | ||
