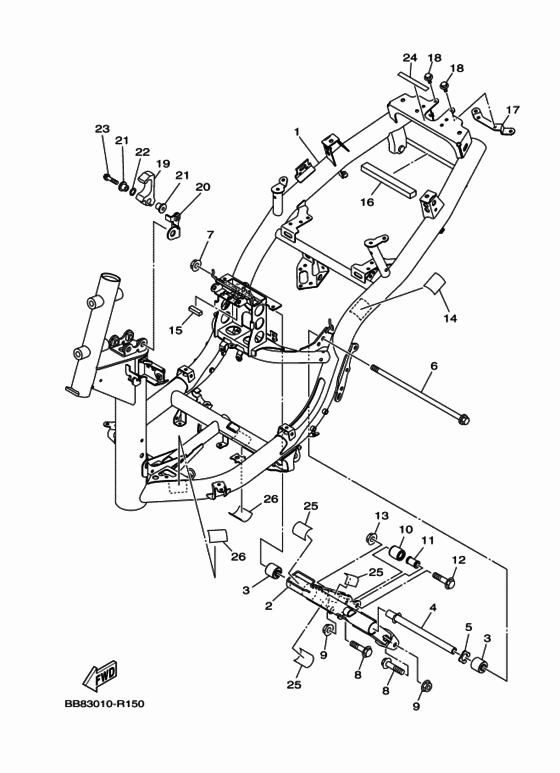

Frame Diagram Yamaha MWS150 Tricity
- Year
- 2016
- Colour
- White Metallic 6
- Model code
- BB83
- Sales region
- Japan (010)
- Engine Capacity
- 150
- Color Variant
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BB8-F1110-00-00 Frame Comp |
BB8-F1110-00-00 |
US $854.04 |
||
|
2
|
2
BB8-F1410-00-00 Engine Bracket Comp |
BB8-F1410-00-00 |
US $79.44 |
||
|
3
|
3
5VV-F2123-00-00 Bush 1 |
5VV-F2123-00-00 |
US $15.44 |
||
|
4
|
4
BB8-F1459-00-00 Spacer |
BB8-F1459-00-00 |
US $16.29 |
||
|
5
|
5
2DP-F113B-00-00 Damper |
2DP-F113B-00-00 |
US $1.28 |
||
|
6
|
6
2DP-F2141-00-00 Shaft, Pivot |
2DP-F2141-00-00 |
US $12.89 |
||
|
7
|
7
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
8
|
8
90105-10283-00 Bolt, Flange |
90105-10283-00 |
from US $3.89 |
||
|
9
|
9
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
10
|
10
BB8-F7114-00-00 Stopper, Main Stand |
BB8-F7114-00-00 |
US $7.37 |
||
|
11
|
11
BB8-F1748-00-00 Collar |
BB8-F1748-00-00 |
US $3.26 |
||
|
12
|
12
90105-10283-00 Bolt, Flange |
90105-10283-00 |
from US $3.89 |
||
|
13
|
13
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
14
|
14
905-20028-37-00 Damper, Plate |
905-20028-37-00 |
from US $1.28 |
||
|
15
|
15
90520-08803-00 Damper, Plate |
90520-08803-00 |
US $1.28 |
||
|
16
|
16
905-20208-01-00 Damper, Plate |
905-20208-01-00 |
US $10.77 |
||
|
17
|
17
BB8-F117E-00-00 Bracket, Taillight |
BB8-F117E-00-00 |
US $4.68 |
||
|
18
|
18
95D02-06010-00 BOLT, FLANGE DEEP RE |
95D02-06010-00 |
from US $0.54 |
||
|
19
|
19
2CM-F8257-00-00 Hook 1 |
2CM-F8257-00-00 |
US $2.98 |
||
|
20
|
20
2CM-F116A-00-00 Stay 1 |
2CM-F116A-00-00 |
US $2.69 |
||
|
21
|
21
90387-068G3-00 Collar |
90387-068G3-00 |
from US $0.52 |
||
|
22
|
22
90206-10036-00 Washer, Wave |
90206-10036-00 |
from US $1.70 |
||
|
23
|
23
95D-32060-30-00 Bolt, Flange Deep Recess |
95D-32060-30-00 |
from US $0.79 |
||
|
24
|
24
BB8-F414G-00-00 Seal |
BB8-F414G-00-00 |
US $3.54 |
||
|
25
|
25
54S-F1268-00-00 Seal |
54S-F1268-00-00 |
US $2.98 |
||
|
26
|
26
54S-F1268-00-00 Seal |
54S-F1268-00-00 |
US $2.98 |
