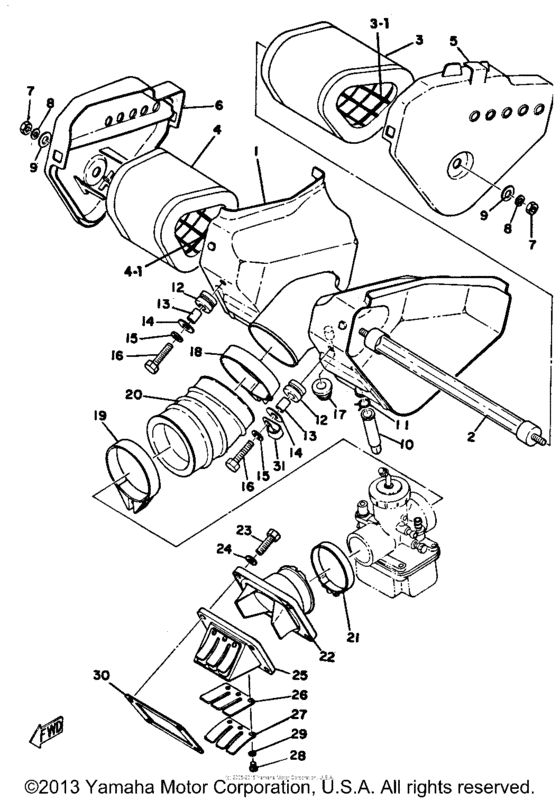

Intake Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- MX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509-14411-01-00
Case, Air Cleaner 1
|
509-14411-01-00 |
— | ||
|
2
|
2
509-14428-00-00
Bolt
|
509-14428-00-00 |
— | ||
|
3
|
3
509-14451-09-00
Element, Air Clnr
M5-003 |
509-14451-09-00 |
— | ||
|
4
|
4
509-14461-09-00
Element, Air Clnr 2 (509-14412-
509-14412- |
509-14461-09-00 |
— | ||
|
5
|
5
509-14412-02-00
Cap, Cleaner Case 1
|
509-14412-02-00 |
— | ||
|
6
|
6
509-14422-01-00
Cap, Cleaner Case 2
|
509-14422-01-00 |
— | ||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
10
|
10
509-14457-00-00
Seal (509-14457-01)
509-14457-01 |
509-14457-00-00 |
— | ||
|
11
|
11
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
12
|
12
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
13
|
13
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
14
|
14
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
17
|
17
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
18
|
18
904-60660-67-00
Clamp, Hose
|
904-60660-67-00 |
— | ||
|
19
|
19
90460-71129-00
Clamp, Hose (90460-71017)
90460-71017 |
90460-71129-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
90460-71017 |
999-99999-99-00 |
— | ||
|
20
|
20
509-14453-01-00
Joint, Air Clnr 1
|
509-14453-01-00 |
— | ||
|
21
|
21
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
22
|
22
510-13555-02-00
Manifold, Intake
|
510-13555-02-00 |
— | ||
|
23
|
23
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
23
|
23
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
431-13610-01-00
Reed Valve Assembly
|
431-13610-01-00 |
— | ||
|
26
|
26
363-13613-00-00
Reed, Valve
|
363-13613-00-00 |
— | ||
|
27
|
27
363-13616-00-00
Stopper, Reed Valve
|
363-13616-00-00 |
— | ||
|
28
|
28
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
29
|
29
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
30
|
30
8Y7-13556-01-00 Gasket, Manifold |
8Y7-13556-01-00 |
from US $2.02 |
||
|
31
|
31
904-65060-62-00
Clamp
|
904-65060-62-00 |
— | ||
