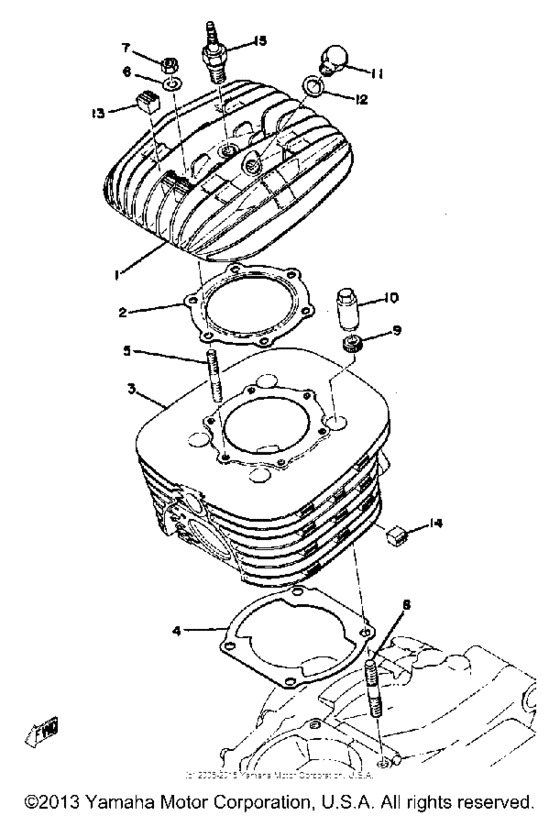

Cylinder head & cylinder Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 400
- Model
- MX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510-11111-01-00
Head, Cylinder 1
|
510-11111-01-00 |
— | ||
|
2
|
2
500-11181-00-00 Gasket, Cylinder Head 1 |
500-11181-00-00 |
from US $52.50 |
||
|
3
|
3
510-11311-01-00
Cylinder 1
|
510-11311-01-00 |
— | ||
|
4
|
4
500-11351-00-00 Gskt,cylndr |
500-11351-00-00 |
from US $10.87 |
||
| replacement | |||||
|
4
|
4
500-11351-09-00 PISTON KIT 1ST |
500-11351-09-00 |
from US $10.87 |
||
|
5
|
5
90116-08104-00 Bolt, Stud |
90116-08104-00 |
from US $7.93 |
||
|
6
|
6
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
90116-10087-00 Bolt, Stud |
90116-10087-00 |
from US $7.79 |
||
|
9
|
9
902-01111-55-00
Washer, Plate (363-11175-00)
363-11175-00 |
902-01111-55-00 |
— | ||
|
10
|
10
90179-10201-00 Nut |
90179-10201-00 |
US $24.23 |
||
| replacement | |||||
|
10
|
10
90179-10021-00 Nut |
90179-10021-00 |
from US $24.23 |
||
|
11
|
11
903-40140-22-00
Plug, Straight Scrw (214-11197-
214-11197- |
903-40140-22-00 |
— | ||
|
12
|
12
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
13
|
13
363-11161-00-00 Absorber 1 (363-11161-00)363-11161-00 |
363-11161-00-00 |
from US $5.81 |
||
|
14
|
14
427-11161-00-00
Absorber 1
|
427-11161-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
NGK-B8EV0-00-00
Ngk Br8Ev 4Pk
4PK |
NGK-B8EV0-00-00 |
— | ||
| replacement | |||||
|
15
|
15
NGK-BR8EV-00-00
Ngk Br8Ev 4Pk
4PK |
NGK-BR8EV-00-00 |
— | ||
