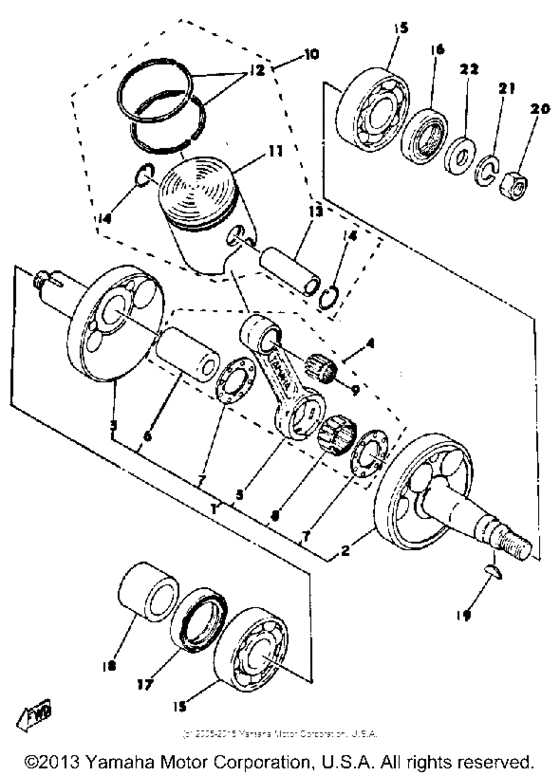

Crankshaft & Piston Diagram Yamaha MX
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1K9-11400-00-00
Crankshaft Assembly
|
1K9-11400-00-00 |
— | ||
|
2
|
2
598-11412-00-00
Crank 1
|
598-11412-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
598-11422-00-00
Crank 2
|
598-11422-00-00 |
— | ||
|
4
|
4
538-11650-01-00 Connecting Rod Assembly |
538-11650-01-00 |
US $209.72 |
||
|
5
|
5
3R1-11651-01-00 Rod, Connecting (3R1-11651-003R1-11651- |
3R1-11651-01-00 |
from US $123.10 |
||
|
6
|
6
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
6
|
6
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
7
|
7
90209-18112-00 Washer |
90209-18112-00 |
from US $3.72 |
||
|
8
|
8
933-10418-T0-00
Bearing Cylinder #10
#10 |
933-10418-T0-00 |
— | ||
| replacement | |||||
|
8
|
8
93310-418C4-00 Bearing Cylinder #10#10 |
93310-418C4-00 |
from US $19.69 |
||
|
9
|
9
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
10
|
10
367-11630-51-00 Piston Kit Std |
367-11630-51-00 |
from US $117.34 |
||
|
11
|
11
367-11631-00-96 Piston Std |
367-11631-00-96 |
from US $95.33 |
||
| replacement | |||||
|
11
|
11
367-11631-11-96 Piston Std |
367-11631-11-96 |
from US $95.33 |
||
|
12
|
12
367-11610-00-00 Piston Ringset Std |
367-11610-00-00 |
from US $63.28 |
||
|
13
|
13
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
14
|
14
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
15
|
15
933-06204-10-00
Bearing
|
933-06204-10-00 |
— | ||
|
16
|
16
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $6.40 |
||
|
17
|
17
931-03290-11-00
New Genuine Part
IN PRICE BOOK |
931-03290-11-00 |
— | ||
|
18
|
18
90387-205E9-00 Collar |
90387-205E9-00 |
from US $12.33 |
||
|
19
|
19
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
20
|
20
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
|
21
|
21
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
22
|
22
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
|
22
|
22
367-11635-11-00 Piston 1 O/s 0.25O/S 0.25 |
367-11635-11-00 |
from US $95.33 |
||
|
22
|
22
367-11636-11-00 Piston 2 O/s 0.50O/S 0.50 |
367-11636-11-00 |
from US $95.33 |
||
|
22
|
22
367-11637-11-00
Piston 3 O/s 0.75
O/S 0.75 |
367-11637-11-00 |
— | ||
|
22
|
22
367-11638-11-00 Piston 4 O/s 1.00O/S 1.00 |
367-11638-11-00 |
US $114.88 |
||
|
22
|
22
367-11630-61-00
Piston Kit 1St
1ST |
367-11630-61-00 |
— | ||
|
22
|
22
367-11630-71-00
Piston Kit 2Nd
2ND |
367-11630-71-00 |
— | ||
|
22
|
22
367-11610-10-00 Piston Ringset 1StPiston ring set (1st o/s) 1ST |
367-11610-10-00 |
from US $63.28 |
||
|
22
|
22
367-11610-20-00 Piston Ringset 2NdPiston ring set (2nd o/s) 2ND |
367-11610-20-00 |
from US $62.75 |
||
|
22
|
22
367-11610-30-00
Piston Ringset 3Rd
3RD |
367-11610-30-00 |
— | ||
|
22
|
22
367-11610-40-00
Piston Ringset 4Th
4TH |
367-11610-40-00 |
— | ||
|
22
|
22
367-11630-81-00
Piston Kit 3Rd O/s
3RD O/S |
367-11630-81-00 |
— | ||
|
22
|
22
367-11630-91-00
Piston Kit 4Th
4TH |
367-11630-91-00 |
— | ||
