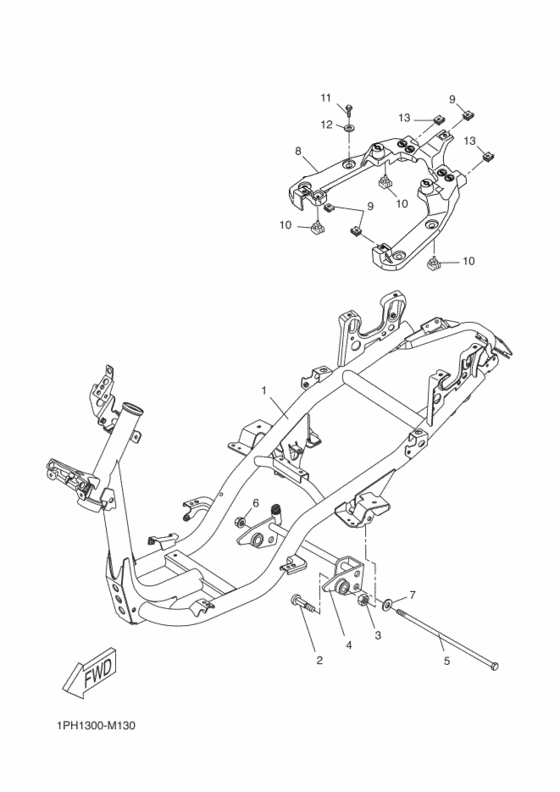

Frame Diagram Yamaha NS50 Aerox
- Year
- 2013
- Colour
- Mat White Metallic 3 (MW M3; 1259)
- Model code
- 1PH1
- Sales region
- Europe (030)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- Aerox
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1PH-F1110-00-00
Frame comp
|
1PH-F1110-00-00 |
— | ||
|
2
|
2
3WG-F1481-10-00 Bolt, Engine Mounting 1 |
3WG-F1481-10-00 |
US $18.56 |
||
|
3
|
3
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
4
|
4
1PH-F1410-00-00
Engine Bracket Comp
|
1PH-F1410-00-00 |
— | ||
|
5
|
5
90105-10N52-00 Bolt, Flange |
90105-10N52-00 |
from US $15.02 |
||
|
6
|
6
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
7
|
7
9290L-10200-00
Washer
|
9290L-10200-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1PH-F1232-00-00
Reinforcement, Tail
|
1PH-F1232-00-00 |
— | ||
|
9
|
9
90183-06X00-00 Nut, Spring |
90183-06X00-00 |
from US $6.80 |
||
|
10
|
10
5C2-F1485-01-00
Damper, Rubber 1
|
5C2-F1485-01-00 |
— | ||
|
11
|
11
901-09081-86-00 Bolt |
901-09081-86-00 |
from US $4.11 |
||
|
12
|
12
90201-124G9-00 Washer, Plate |
90201-124G9-00 |
from US $5.38 |
||
|
13
|
13
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
