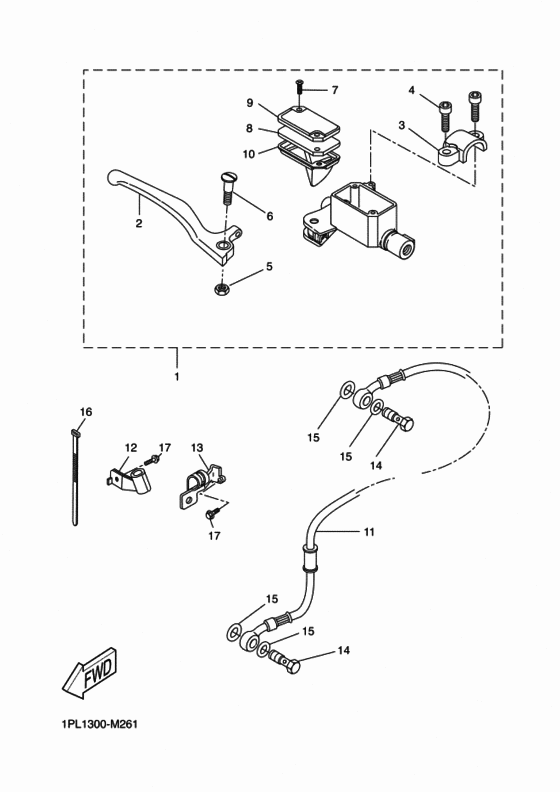

Front master cylinder Diagram Yamaha NS50 Aerox Naked
- Year
- 2013
- Colour
- Mat Black 2
- Model code
- 1PL1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Aerox Naked
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1PL-F583T-00-00
Master Cylinder Assy
|
1PL-F583T-00-00 |
— | ||
|
2
|
2
1PH-H3912-00-00
Lever 1
|
1PH-H3912-00-00 |
— | ||
|
3
|
3
1PL-F5867-00-00
Bracket, Master Cylinder
|
1PL-F5867-00-00 |
— | ||
|
4
|
4
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.66 |
||
|
5
|
5
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
6
|
6
1B9-H3945-00-00 Bolt, Lever |
1B9-H3945-00-00 |
US $54.85 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
8
|
8
1B9-F5855-00-00
Bush,diaphragm
|
1B9-F5855-00-00 |
— | ||
|
9
|
9
1B9-F5852-00-00 Cap, Reservoir |
1B9-F5852-00-00 |
US $39.10 |
||
|
10
|
10
1B9-F5854-00-00
Diaphragm, Reservoir
|
1B9-F5854-00-00 |
— | ||
|
11
|
11
1PL-F5872-00-00
Hose, Brake 1
|
1PL-F5872-00-00 |
— | ||
|
12
|
12
1PH-F5875-00-00
Holder, Brake Hose 1
|
1PH-F5875-00-00 |
— | ||
|
13
|
13
1PH-F5876-00-00
Holder, Brake Hose 2
|
1PH-F5876-00-00 |
— | ||
|
14
|
14
90401-10X03-00 Bolt, Union |
90401-10X03-00 |
US $7.51 |
||
|
15
|
15
90201-10X03-00 Washer, Plain |
90201-10X03-00 |
from US $4.68 |
||
|
16
|
16
4KH-H3936-01-00 Band Switch Cord (249X4.8)(249X4.80) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
17
|
17
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
