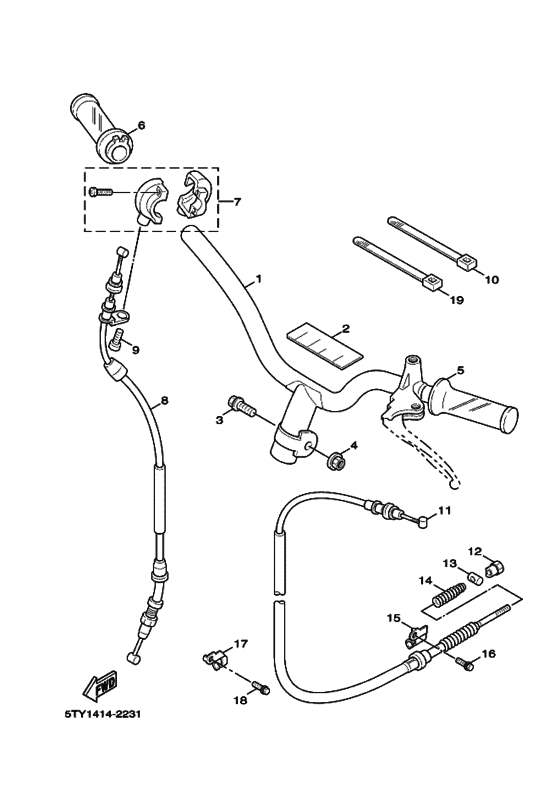

Steering handle & cable Diagram Yamaha NXC125 Cygnus
- Year
- 2004
- Colour
- Silver 1 (S1; 0755)
- Model code
- 5ML1
- Sales region
- Europe (100)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- NXC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ML-F6110-10-00
Handle Comp
|
5ML-F6110-10-00 |
— | ||
| replacement | |||||
|
1
|
1
5ML-X2611-10-00
Handle Comp
|
5ML-X2611-10-00 |
— | ||
|
2
|
2
5ML-F6113-00-00 Damper |
5ML-F6113-00-00 |
US $10.34 |
||
|
3
|
3
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
4
|
4
90185-10801-00 Nut, Self-Locking |
90185-10801-00 |
from US $5.38 |
||
|
5
|
5
5ML-F6241-00-00 Grip |
5ML-F6241-00-00 |
US $9.07 |
||
| replacement | |||||
|
5
|
5
5ML-F6241-01-00 Grip |
5ML-F6241-01-00 |
from US $4.21 |
||
|
6
|
6
5ML-F6240-00-00 Grip Assy |
5ML-F6240-00-00 |
US $13.60 |
||
|
7
|
7
5ML-F6270-01-00 Cable Connector Cap AssyCap grip assy |
5ML-F6270-01-00 |
US $37.30 |
||
|
8
|
8
5ML-F6311-01-00 Cable, Throttle 1 |
5ML-F6311-01-00 |
US $21.06 |
||
|
9
|
9
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
9
|
9
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
10
|
10
90464-12812-00 Clamp |
90464-12812-00 |
from US $1.19 |
||
|
11
|
11
5ML-F6351-01-00 Cable, Brake |
5ML-F6351-01-00 |
US $50.66 |
||
|
12
|
12
90179-06843-00 Nut, Wing |
90179-06843-00 |
from US $1.98 |
||
| replacements | |||||
|
12
|
12
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
12
|
12
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
|
13
|
13
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
14
|
14
90501-16801-00 Spring, Compression |
90501-16801-00 |
from US $2.45 |
||
|
15
|
15
5ML-F637G-00-00 Holder, Wire |
5ML-F637G-00-00 |
US $11.76 |
||
|
16
|
16
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
17
|
17
5ML-F637H-00-00 Holder, Wire 2 |
5ML-F637H-00-00 |
US $11.05 |
||
|
18
|
18
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
19
|
19
90464-12812-00 Clamp |
90464-12812-00 |
from US $1.19 |
||
