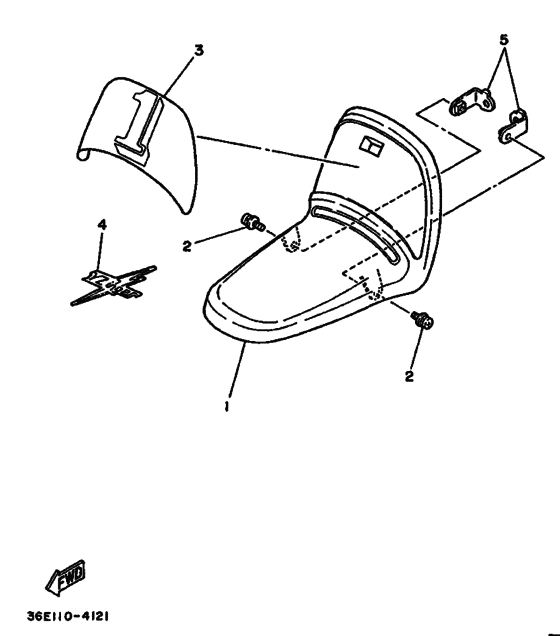

Front fender Diagram Yamaha PW50 Zinger
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PT1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- PW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36E-21511-10-00
Fender, Front
WHITE |
36E-21511-10-00 |
— | ||
|
2
|
2
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
| replacement | |||||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
3
|
3
36E-21570-20-00
Grphc Set, Frt Fndrfender
|
36E-21570-20-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
36E-21571-20-00
Graphic, Frt Fndr 1Fender 1
|
36E-21571-20-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
36E-21513-00-00 Stay, Fender 1 |
36E-21513-00-00 |
from US $3.64 |
||
