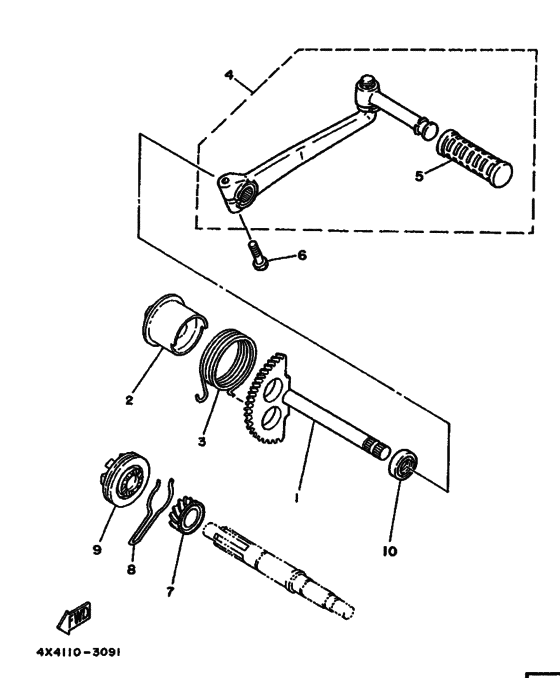

Starter Diagram Yamaha PW50 Zinger
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PT1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L5-15601-00-00 Kick Shaft Assy |
3L5-15601-00-00 |
from US $18.20 |
||
|
2
|
2
3L5-15664-00-00 Guide, Spring |
3L5-15664-00-00 |
from US $22.10 |
||
|
3
|
3
90508-28399-00 Spring, Torsion |
90508-28399-00 |
from US $6.52 |
||
|
4
|
4
17J-15620-01-00 Kick Crank Assy |
17J-15620-01-00 |
from US $37.70 |
||
|
5
|
5
2T4-15618-00-00 Cover, Kick Lever |
2T4-15618-00-00 |
from US $4.11 |
||
| replacement | |||||
|
5
|
5
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
6
|
6
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
7
|
7
3L5-15631-00-00 Gear, Kick Pinion13T |
3L5-15631-00-00 |
from US $23.82 |
||
|
8
|
8
3L5-15673-00-00 Clip |
3L5-15673-00-00 |
from US $3.68 |
||
|
9
|
9
3L5-13178-00-00 Gear, Pump Drive |
3L5-13178-00-00 |
from US $35.38 |
||
|
10
|
10
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.11 |
||
