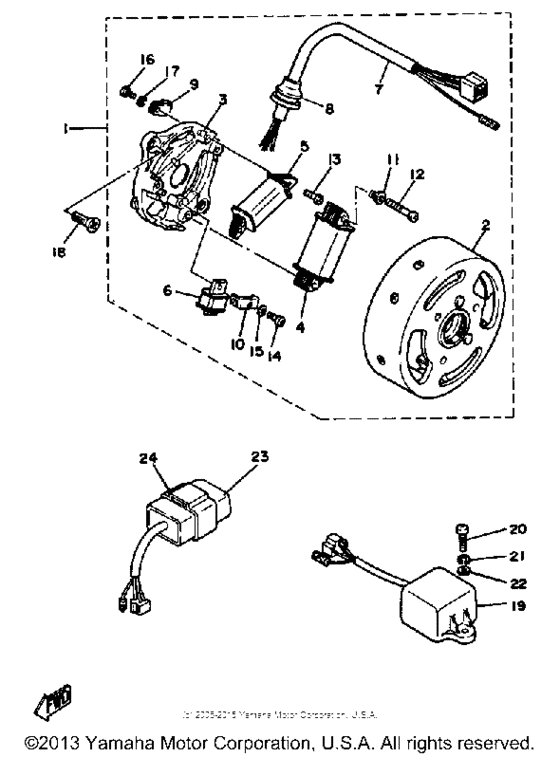

CDI & magneto Diagram Yamaha PW50 Zinger
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X4-85500-M0-00
Cdi Magneto Assemblyassy
|
4X4-85500-M0-00 |
— | ||
|
2
|
2
3L6-85550-M0-00 Rotor Assy |
3L6-85550-M0-00 |
from US $130.46 |
||
| replacement | |||||
|
2
|
2
3L6-85550-M1-00 Rotor Assy |
3L6-85550-M1-00 |
from US $82.48 |
||
|
3
|
3
3L5-85561-M1-00 Base, Magneto |
3L5-85561-M1-00 |
US $142.15 |
||
|
4
|
4
4X4-81313-M0-00 Coil, Lighting 1 |
4X4-81313-M0-00 |
from US $45.12 |
||
|
5
|
5
4Y4-85520-M0-00 Coil, Charge |
4Y4-85520-M0-00 |
from US $72 |
||
| replacement | |||||
|
5
|
5
4Y4-85520-M1-00 COIL CHARGE |
4Y4-85520-M1-00 |
from US $36.36 |
||
|
6
|
6
3L5-85580-M0-00 Coil, Pulser |
3L5-85580-M0-00 |
from US $19.20 |
||
|
7
|
7
4X4-8131X-M0-00 Cord Assembly |
4X4-8131X-M0-00 |
from US $23.92 |
||
|
8
|
8
3L5-85564-M0-00
Grommet
|
3L5-85564-M0-00 |
— | ||
|
9
|
9
90461-05036-00 Clamp |
90461-05036-00 |
from US $2.55 |
||
|
10
|
10
2T4-85568-M1-00 Terminal, Earth 1 |
2T4-85568-M1-00 |
from US $3.26 |
||
|
11
|
11
2T4-85569-M1-00 Terminal, Earth 2 |
2T4-85569-M1-00 |
US $3.26 |
||
|
12
|
12
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
15
|
15
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
16
|
16
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
16
|
16
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
17
|
17
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
18
|
18
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.36 |
||
|
18
|
18
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.36 |
||
|
19
|
19
3L4-85540-M1-00 Cdi Unit Assembly (5G3-85540-M05G3-85540-M0 PW50H |
3L4-85540-M1-00 |
from US $172.46 |
||
|
20
|
20
985-03060-14-00
Screw, Pan Head
92502-06016-00 PW50H |
985-03060-14-00 |
— | ||
| replacement | |||||
|
20
|
20
98507-06014-00 Screw, Pan Head92502-06016-00 PW50H |
98507-06014-00 |
from US $1.07 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
23
|
23
4X4-85590-M0-00
Control Unit Assembly
|
4X4-85590-M0-00 |
— | ||
|
24
|
24
4J2-85546-00-00 Band |
4J2-85546-00-00 |
from US $2.02 |
||
