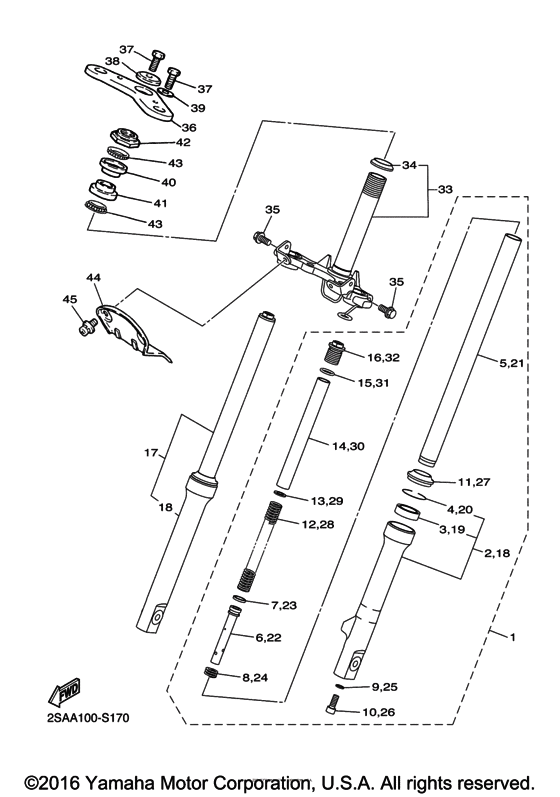

Front fork Diagram Yamaha PW50 PW50
- Year
- 2017
- Colour
- Deep Purplish Blue Solid E (DPBSE)
- Model code
- 2SAA
- Sales region
- USA
- Engine Capacity
- 50
- Color Variant
- A
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2SA-23102-00-00 FRONT FORK ASSY (L.H |
2SA-23102-00-00 |
from US $219.65 |
||
| replacements | |||||
|
1
|
1
2SA-23102-01-00
FRONT FORK ASSY (L.H
|
2SA-23102-01-00 |
— | ||
|
1
|
1
2SA-23102-02-00 FRONT FORK ASSY (L.H) |
2SA-23102-02-00 |
from US $210.40 |
||
|
2
|
2
2SA-F3126-00-00 Tube, Outer (L.h) |
2SA-F3126-00-00 |
from US $73.51 |
||
|
3
|
3
BE8-F3145-00-00 Oil Seal |
BE8-F3145-00-00 |
from US $8.50 |
||
| replacement | |||||
|
3
|
3
2SA-23145-00-00 OIL SEAL |
2SA-23145-00-00 |
from US $8.50 |
||
|
4
|
4
4RT-F3153-00-00 RING, SNAP |
4RT-F3153-00-00 |
from US $1.42 |
||
|
5
|
5
2SA-F3110-00-00 Inner Tube Comp.1 |
2SA-F3110-00-00 |
from US $126.28 |
||
| replacements | |||||
|
5
|
5
2SA-23110-01-00 Inner Tube Comp.1 |
2SA-23110-01-00 |
from US $126.28 |
||
|
5
|
5
2SA-23110-02-00 |
2SA-23110-02-00 |
from US $125.44 |
||
|
6
|
6
2SA-F3170-00-00 Cylinder Comp., Front Fork |
2SA-F3170-00-00 |
from US $12.18 |
||
| replacement | |||||
|
6
|
6
2SA-23171-00-00 Piston, Front Fork |
2SA-23171-00-00 |
from US $12.18 |
||
|
7
|
7
1FP-F3157-00-00 RING, PISTON |
1FP-F3157-00-00 |
from US $2.69 |
||
|
8
|
8
49P-F3151-00-00 SPRING, REBOUND |
49P-F3151-00-00 |
from US $3.68 |
||
|
9
|
9
2SA-F3479-00-00 Gasket |
2SA-F3479-00-00 |
from US $2.13 |
||
| replacement | |||||
|
9
|
9
2SA-23479-00-00 Gasket |
2SA-23479-00-00 |
from US $2.13 |
||
|
10
|
10
2SA-F3356-00-00
Bolt 2
|
2SA-F3356-00-00 |
— | ||
|
11
|
11
BE8-F3144-00-00 Seal, Dust |
BE8-F3144-00-00 |
from US $6.75 |
||
| replacement | |||||
|
11
|
11
2SA-23144-00-00 Seal, Dust |
2SA-23144-00-00 |
from US $4.30 |
||
|
12
|
12
2SA-23141-00-00 SPRING, FRONT FORK |
2SA-23141-00-00 |
from US $7.78 |
||
|
13
|
13
2SA-23427-00-00 WASHER |
2SA-23427-00-00 |
from US $1.42 |
||
|
14
|
14
2SA-23118-00-00 Spacer |
2SA-23118-00-00 |
from US $4.68 |
||
|
15
|
15
2SA-F3147-00-00 O-Ring |
2SA-F3147-00-00 |
from US $0.85 |
||
| replacement | |||||
|
15
|
15
2SA-23147-00-00 O-RING |
2SA-23147-00-00 |
from US $1.19 |
||
|
16
|
16
2SA-23357-00-00 NUT |
2SA-23357-00-00 |
from US $14.73 |
||
|
17
|
17
2SA-23103-00-00 FRONT FORK ASSY (R.H |
2SA-23103-00-00 |
from US $219.65 |
||
| replacements | |||||
|
17
|
17
2SA-23103-01-00
FRONT FORK ASSY (R.H
|
2SA-23103-01-00 |
— | ||
|
17
|
17
2SA-23103-02-00 FRONT FORK ASSY (R.H) |
2SA-23103-02-00 |
from US $212.74 |
||
|
18
|
18
2SA-F3136-00-00 Tube, Outer 2 |
2SA-F3136-00-00 |
from US $73.51 |
||
|
19
|
19
BE8-F3145-00-00 Oil Seal |
BE8-F3145-00-00 |
from US $8.50 |
||
| replacement | |||||
|
19
|
19
2SA-23145-00-00 OIL SEAL |
2SA-23145-00-00 |
from US $8.50 |
||
|
20
|
20
4RT-F3153-00-00 RING, SNAP |
4RT-F3153-00-00 |
from US $1.42 |
||
|
21
|
21
2SA-F3110-00-00 Inner Tube Comp.1 |
2SA-F3110-00-00 |
from US $126.28 |
||
| replacements | |||||
|
21
|
21
2SA-23110-01-00 Inner Tube Comp.1 |
2SA-23110-01-00 |
from US $126.28 |
||
|
21
|
21
2SA-23110-02-00 |
2SA-23110-02-00 |
from US $125.44 |
||
|
22
|
22
2SA-F3170-00-00 Cylinder Comp., Front Fork |
2SA-F3170-00-00 |
from US $12.18 |
||
| replacement | |||||
|
22
|
22
2SA-23171-00-00 Piston, Front Fork |
2SA-23171-00-00 |
from US $12.18 |
||
|
23
|
23
1FP-F3157-00-00 RING, PISTON |
1FP-F3157-00-00 |
from US $2.69 |
||
|
24
|
24
49P-F3151-00-00 SPRING, REBOUND |
49P-F3151-00-00 |
from US $3.68 |
||
|
25
|
25
2SA-F3479-00-00 Gasket |
2SA-F3479-00-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
2SA-23479-00-00 Gasket |
2SA-23479-00-00 |
from US $2.13 |
||
|
26
|
26
2SA-F3356-00-00
Bolt 2
|
2SA-F3356-00-00 |
— | ||
|
27
|
27
BE8-F3144-00-00 Seal, Dust |
BE8-F3144-00-00 |
from US $6.75 |
||
| replacement | |||||
|
27
|
27
2SA-23144-00-00 Seal, Dust |
2SA-23144-00-00 |
from US $4.30 |
||
|
28
|
28
2SA-23141-00-00 SPRING, FRONT FORK |
2SA-23141-00-00 |
from US $7.78 |
||
|
29
|
29
2SA-23427-00-00 WASHER |
2SA-23427-00-00 |
from US $1.42 |
||
|
30
|
30
2SA-23118-00-00 Spacer |
2SA-23118-00-00 |
from US $4.68 |
||
|
31
|
31
2SA-F3147-00-00 O-Ring |
2SA-F3147-00-00 |
from US $0.85 |
||
| replacement | |||||
|
31
|
31
2SA-23147-00-00 O-RING |
2SA-23147-00-00 |
from US $1.19 |
||
|
32
|
32
2SA-23357-00-00 NUT |
2SA-23357-00-00 |
from US $14.73 |
||
|
33
|
33
2SA-23340-00-00 UNDER BRACKET COMP. |
2SA-23340-00-00 |
from US $165.79 |
||
| replacement | |||||
|
33
|
33
2SA-23340-01-00 |
2SA-23340-01-00 |
from US $158.04 |
||
|
34
|
34
3YJ-23414-00-00 Race, Ball 4 |
3YJ-23414-00-00 |
from US $8.78 |
||
|
35
|
35
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.56 |
||
|
36
|
36
4X4-23435-00-00 Crown, Handle |
4X4-23435-00-00 |
from US $23.66 |
||
|
37
|
37
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $3.32 |
||
| replacement | |||||
|
37
|
37
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
38
|
38
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
39
|
39
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
40
|
40
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
40
|
40
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
41
|
41
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
from US $4.32 |
||
|
42
|
42
3PT-23411-00-00 Race, Ball 1 |
3PT-23411-00-00 |
from US $17.57 |
||
|
43
|
43
93505-32042-00 Ball |
93505-32042-00 |
from US $6.94 |
||
|
44
|
44
4X4-21543-00-00 Plate 1 |
4X4-21543-00-00 |
from US $15.58 |
||
|
45
|
45
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
| replacement | |||||
|
45
|
45
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
