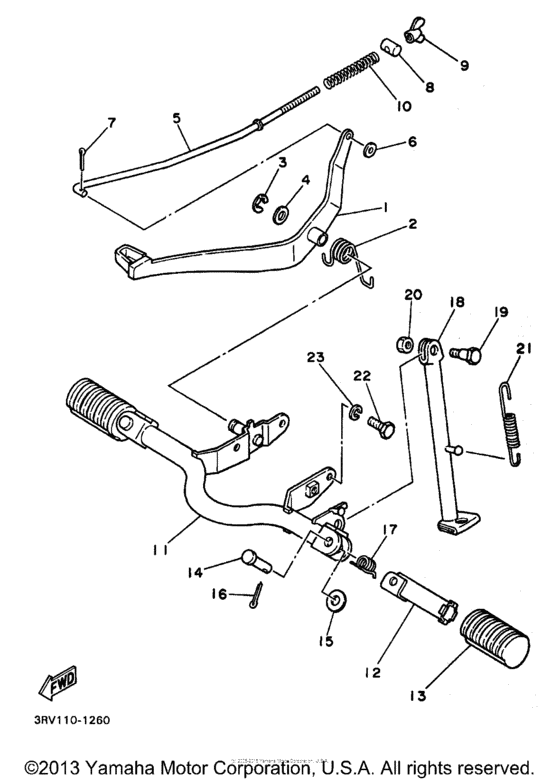

Stand & Footrest Diagram Yamaha PW80 Zinger
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 80
- Model
- PW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21W-27211-00-00 Pedal, Brake |
21W-27211-00-00 |
from US $37.03 |
||
|
2
|
2
90508-29578-00 Spring, Torsion |
90508-29578-00 |
from US $4.11 |
||
|
3
|
3
99002-09600-00 Circlip (E) (99001-09600-00)99001-09600-00 |
99002-09600-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
99080-09600-00 Circlip (E) (99001-09600-00)99001-09600-00 |
99080-09600-00 |
from US $1.36 |
||
|
4
|
4
92907-12600-00 Washer, Plate |
92907-12600-00 |
from US $1.42 |
||
|
5
|
5
21W-27231-00-00 Rod, Brake |
21W-27231-00-00 |
from US $8.36 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
7
|
7
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
7
|
7
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
8
|
8
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
9
|
9
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
10
|
10
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
11
|
11
21W-27411-01-33 Footrest 1YB |
21W-27411-01-33 |
from US $82.76 |
||
|
12
|
12
214-27421-00-00 Footrest 2UNICHROME BLACK |
214-27421-00-00 |
from US $7.76 |
||
|
13
|
13
214-27413-00-00 Cover, Footrest |
214-27413-00-00 |
from US $15.30 |
||
|
14
|
14
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
15
|
15
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
16
|
16
91401-25012-00 Pin, Cotter |
91401-25012-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.36 |
||
|
17
|
17
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
18
|
18
21W-27311-01-00 Stand, Side |
21W-27311-01-00 |
from US $58.17 |
||
|
19
|
19
90109-08666-00 Bolt |
90109-08666-00 |
from US $4.39 |
||
| replacement | |||||
|
19
|
19
90109-08063-00 Bolt |
90109-08063-00 |
from US $4.39 |
||
|
20
|
20
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.36 |
||
|
21
|
21
90506-28100-00 Spring, Tension |
90506-28100-00 |
from US $8.22 |
||
| replacement | |||||
|
21
|
21
90506-26270-00 Spring, Tension (1L9) |
90506-26270-00 |
from US $8.22 |
||
|
22
|
22
970-27080-20-00
Bolt
|
970-27080-20-00 |
— | ||
| replacement | |||||
|
22
|
22
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.70 |
||
|
23
|
23
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
