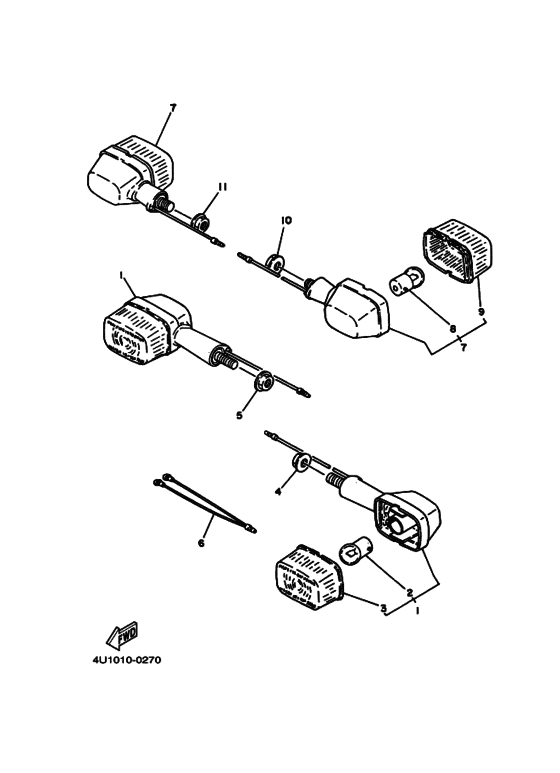

Flasher light Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- B
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4J2-83310-00-00
Front Flasher Light Assy 1
|
4J2-83310-00-00 |
— | ||
|
2
|
2
185-83311-10-00 Bulb, Flasher (6V-8W)．バルブ ; ６Ｖ−８Ｗ |
185-83311-10-00 |
US $2.13 |
||
|
3
|
3
3L5-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
3L5-83312-00-00 |
US $11.33 |
||
|
4
|
4
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
5
|
5
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
3L5-83354-00-00
Wire, Earth Lead 1
ワイヤ，アースリード １; |
3L5-83354-00-00 |
— | ||
|
7
|
7
4U1-83330-10-00
Rear Flasher Light Assy 1
|
4U1-83330-10-00 |
— | ||
|
8
|
8
185-83311-10-00 Bulb, Flasher (6V-8W)．バルブ ; ６Ｖ−８Ｗ |
185-83311-10-00 |
US $2.13 |
||
|
9
|
9
3L5-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
3L5-83312-00-00 |
US $11.33 |
||
|
10
|
10
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
11
|
11
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
