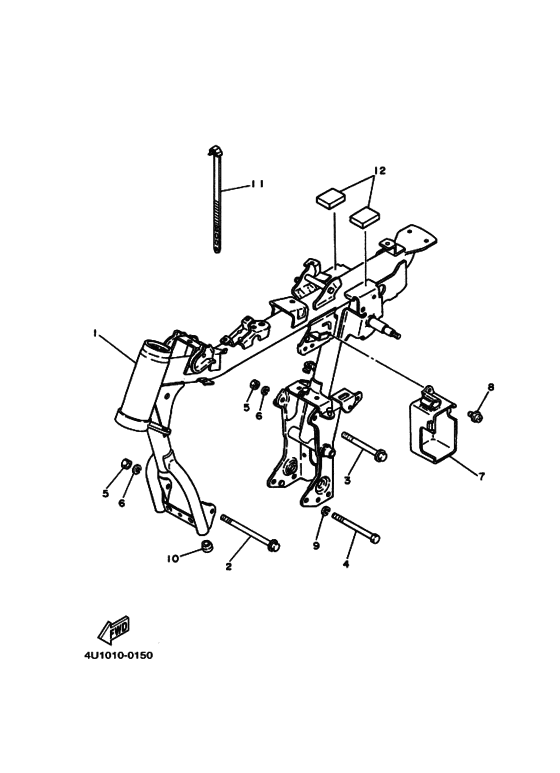

Frame Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- B
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U1-21110-01-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
4U1-21110-01-33 |
— | ||
|
2
|
2
95821-08120-00 Bolt, Flange |
95821-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
3
|
3
95821-08090-00 Bolt, Flange |
95821-08090-00 |
from US $2.25 |
||
| replacement | |||||
|
3
|
3
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
4
|
4
90109-08038-00 Bolt |
90109-08038-00 |
US $7.51 |
||
| replacements | |||||
|
4
|
4
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
4
|
4
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
|
5
|
5
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
5
|
5
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
5
|
5
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
6
|
6
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
4U1-21171-00-00
Box
ボツクス，ツール; |
4U1-21171-00-00 |
— | ||
|
8
|
8
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
8
|
8
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
9
|
9
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
10
|
10
90339-11001-00
Plug
|
90339-11001-00 |
— | ||
|
11
|
11
90464-12045-00 Band, Switch Cordバンド，スイツチコード; |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
25G-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-01-00 |
from US $1.56 |
||
|
12
|
12
4U1-21778-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
4U1-21778-00-00 |
from US $2.50 |
||
| replacement | |||||
|
12
|
12
1YW-21638-00-00 Damperダンパ，ロケーテイング １; |
1YW-21638-00-00 |
from US $2.50 |
||
