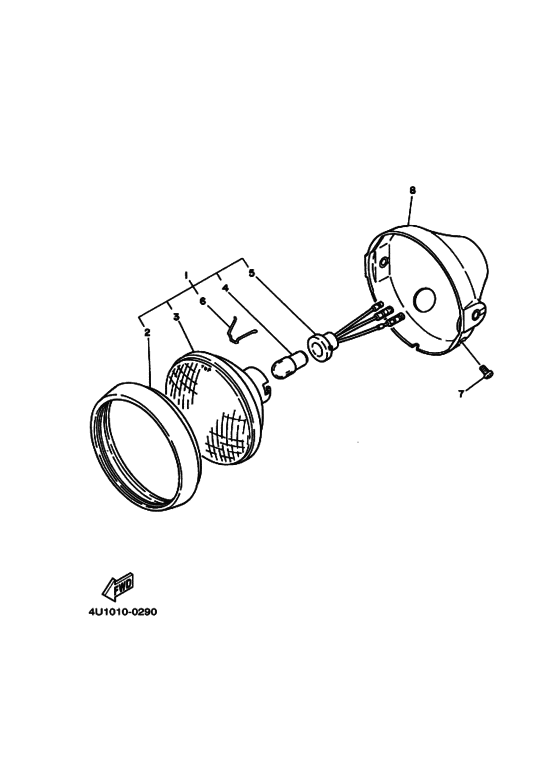

Headlight Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- B
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M7-84110-00-00 Headlight Unit Assy |
3M7-84110-00-00 |
from US $40.40 |
||
|
2
|
2
202-84315-00-00 Rim, Headlight．リム，ヘツドライト; |
202-84315-00-00 |
US $63.55 |
||
|
3
|
3
195-84320-00-00 Lens Assembly．レンズアセンブリ; |
195-84320-00-00 |
from US $66.46 |
||
|
4
|
4
206-84114-60-00 Bulb (6V-25/25W)．バルブ ; ６Ｖ−２５／２５Ｗ |
206-84114-60-00 |
from US $6.94 |
||
|
5
|
5
317-84112-30-00 Socket．ソケツト; |
317-84112-30-00 |
US $53.88 |
||
| replacement | |||||
|
5
|
5
452-84112-00-00 Socket．ソケツト; |
452-84112-00-00 |
US $53.88 |
||
|
6
|
6
195-84324-00-00 Spring, Reflector．スプリング，リフレクタセツト; |
195-84324-00-00 |
from US $3.40 |
||
|
7
|
7
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
7
|
7
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
8
|
8
3M7-84130-00-00 Body Assy, Headlight |
3M7-84130-00-00 |
from US $31.36 |
||
