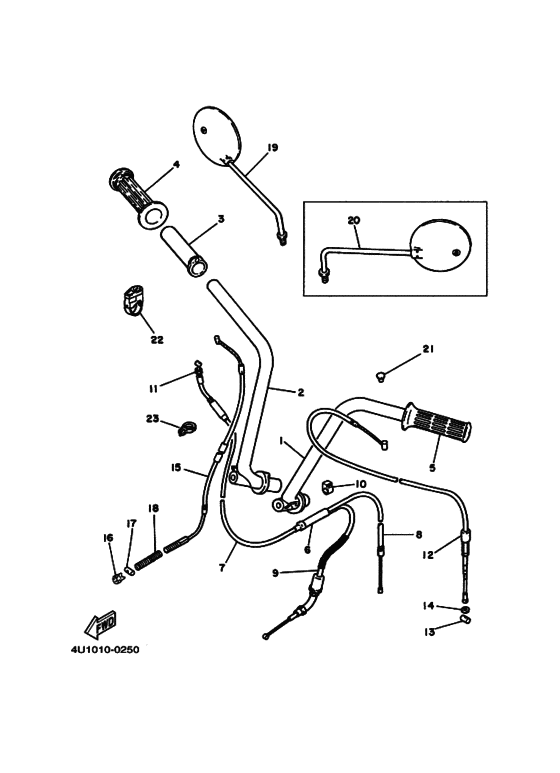

Steering handle & cable Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- D
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U1-26121-00-93
Handlebar (Left)
ハンドルバー ; レフト; クロムメツキ |
4U1-26121-00-93 |
— | ||
|
2
|
2
4U1-26122-00-93
Handlebar (Right)
ハンドルバー ; ライト; クロムメツキ |
4U1-26122-00-93 |
— | ||
|
3
|
3
1V1-26243-00-00 Tube, Thrtl Guideチユーブ，スロツトルガイド; |
1V1-26243-00-00 |
from US $17.10 |
||
|
4
|
4
395-26242-00-00 Grip (Right)グリツプ ; ライト |
395-26242-00-00 |
US $20.83 |
||
|
5
|
5
395-26241-00-00 Gripグリツプ ; レフト |
395-26241-00-00 |
US $20.83 |
||
|
6
|
6
266-26261-00-00 Connector, Cableコネクタ，ケーブル; |
266-26261-00-00 |
from US $20.11 |
||
| replacement | |||||
|
6
|
6
4U1-26261-00-00 Connector, Cableコネクタ，ケーブル; |
4U1-26261-00-00 |
from US $7.08 |
||
|
7
|
7
4U1-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
4U1-26311-00-00 |
— | ||
|
8
|
8
4G3-26312-00-00
Cable, Throttle 2
ケーブル，スロツトル ２; |
4G3-26312-00-00 |
— | ||
|
9
|
9
4U1-26321-00-00
Cable, Pump
ケーブル，ポンプ; |
4U1-26321-00-00 |
— | ||
|
10
|
10
4G3-26339-00-00 Bootブーツ; |
4G3-26339-00-00 |
from US $6.94 |
||
|
11
|
11
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
12
|
12
4U1-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
4U1-26335-00-00 |
— | ||
|
13
|
13
164-26363-00-00 End, Cableエンド，ケーブル; |
164-26363-00-00 |
from US $3.54 |
||
|
14
|
14
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
4U1-26341-00-00
Wire, Brake 1
ケーブル，ブレーキ; |
4U1-26341-00-00 |
— | ||
|
16
|
16
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
17
|
17
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
18
|
18
90501-10074-00 Spring, Compression |
90501-10074-00 |
from US $1.70 |
||
|
19
|
19
4J2-26290-00-00
Back Mirror Assy (Right)
ミラーアセンブリ; |
4J2-26290-00-00 |
— | ||
|
20
|
20
4J2-26290-10-00
Back Mirror Assy (Left)
ミラーアセンブリ; ＡＰ |
4J2-26290-10-00 |
— | ||
|
21
|
21
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
21
|
21
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
22
|
22
4U1-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
4U1-21308-00-00 |
— | ||
|
23
|
23
90464-07043-00
Clamp
|
90464-07043-00 |
— | ||
