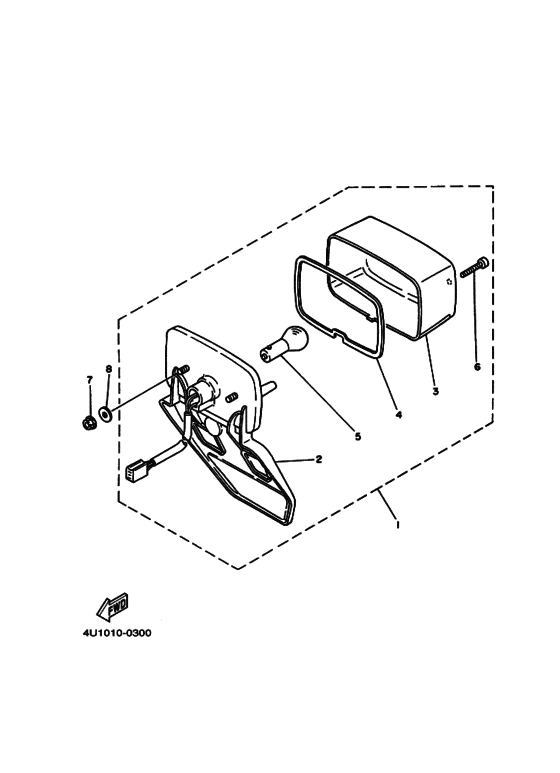

Taillight Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- D
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U1-84500-00-00
Taillight Assy
テールライトアセンブリ; |
4U1-84500-00-00 |
— | ||
|
2
|
2
4U1-84520-00-00
Taillight Base Assy
．テールライトベースアセンブリ; |
4U1-84520-00-00 |
— | ||
|
3
|
3
3L6-84521-00-00 Lens, Taillight．レンズ，テールライト; |
3L6-84521-00-00 |
from US $21.93 |
||
| replacement | |||||
|
3
|
3
1K8-84521-00-00 Lens, Taillight．レンズ，テールライト; |
1K8-84521-00-00 |
from US $23.99 |
||
|
4
|
4
1K8-84523-00-00 Gasket, Lens．ガスケツト，レンズ; |
1K8-84523-00-00 |
from US $5.06 |
||
|
5
|
5
122-84514-00-00 Bulb, Taillp6V10/3W．バルブ ; ６Ｖ−１０／３Ｗ |
122-84514-00-00 |
from US $4.53 |
||
| replacements | |||||
|
5
|
5
122-84514-30-XX
BULB 6V21CP(1154)
．バルブ ; ６Ｖ−１０／３Ｗ |
122-84514-30-XX |
— | ||
|
5
|
5
122-84514-30-00 Bulb 6V21Cp(1154)．バルブ ; ６Ｖ−１０／３Ｗ |
122-84514-30-00 |
US $4.11 |
||
|
6
|
6
2E9-84524-00-00 Screw, Tapping．スクリユ，レンズフイツテイング; |
2E9-84524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
97780-40130-00 Ybs83-430 Screw,panh. Tapping．スクリユ，レンズフイツテイング; |
97780-40130-00 |
from US $2.13 |
||
|
7
|
7
95701-06100-00 Nut, With Washer |
95701-06100-00 |
from US $1.13 |
||
| replacement | |||||
|
7
|
7
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
8
|
8
90201-06050-00 Washer, Plateワツシヤ，プレート; |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
8
|
8
90201-06M08-00 Washer, Plateワツシヤ，プレート; |
90201-06M08-00 |
from US $1.56 |
||
