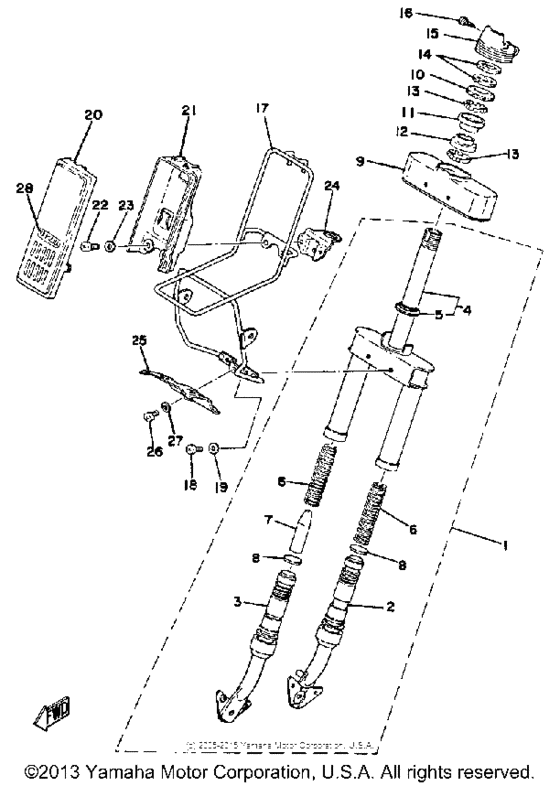

Front fork Diagram Yamaha QT50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4K6-23100-02-4G
Front Fork Assembly
|
4K6-23100-02-4G |
— | ||
| replacement | |||||
|
1
|
1
4K6-23100-03-4G
BREATHER ASSY
|
4K6-23100-03-4G |
— | ||
|
1
|
1
4K6-23100-02-66
Front Fork Assembly
|
4K6-23100-02-66 |
— | ||
|
1
|
1
4K6-23100-01-33
Front Fork Asy
|
4K6-23100-01-33 |
— | ||
| replacement | |||||
|
1
|
1
4K6-23100-03-33
FRONT FORK ASY
|
4K6-23100-03-33 |
— | ||
|
2
|
2
3L5-23110-00-00
Inner Tube 1
|
3L5-23110-00-00 |
— | ||
|
3
|
3
3L5-23120-00-00
Inner Tube 2
|
3L5-23120-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4K6-23340-01-4G
Under Bracket-Comp
|
4K6-23340-01-4G |
— | ||
| replacements | |||||
|
4
|
4
4K6-23340-02-4G
CRANKSHAFT ASSY
|
4K6-23340-02-4G |
— | ||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4K6-23340-01-33
Under Bracket
|
4K6-23340-01-33 |
— | ||
|
4
|
4
4K6-23340-01-66
Under Bracket-Comp
|
4K6-23340-01-66 |
— | ||
|
5
|
5
3YJ-23414-00-00 Race, Ball 4 |
3YJ-23414-00-00 |
from US $8.78 |
||
|
6
|
6
3L5-23141-01-00
Spring, Front Fork
|
3L5-23141-01-00 |
— | ||
|
7
|
7
3L5-23195-00-00 Rubber |
3L5-23195-00-00 |
US $17.44 |
||
|
8
|
8
2E9-23143-00-00 Seat, Spring Lower |
2E9-23143-00-00 |
from US $5.95 |
||
|
9
|
9
3L5-23311-30-00
Panel, Outer 1
|
3L5-23311-30-00 |
— | ||
|
9
|
9
3L8-23311-00-00
Panel, Outer 1
SUNSHINE RED |
3L8-23311-00-00 |
— | ||
|
9
|
9
4K6-23311-61-00
Panel, Outter
|
4K6-23311-61-00 |
— | ||
|
10
|
10
3KJ-23411-01-00 Race, Ball 1 |
3KJ-23411-01-00 |
from US $10.77 |
||
|
11
|
11
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
11
|
11
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
12
|
12
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
from US $4.32 |
||
|
13
|
13
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
14
|
14
2E9-23454-00-00 Nut, Fitting 2 |
2E9-23454-00-00 |
from US $5.67 |
||
|
15
|
15
3L5-23415-00-00 Cover, Ball Race 1 |
3L5-23415-00-00 |
US $8.59 |
||
|
16
|
16
90149-059U1-00
Screw, Panhead (97701-50515-00)
97701-50515-00 |
90149-059U1-00 |
— | ||
|
17
|
17
3L8-24841-00-00
Carrier, Front
|
3L8-24841-00-00 |
— | ||
|
18
|
18
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
20
|
20
3L8-23391-00-00
Panel, Front
|
3L8-23391-00-00 |
— | ||
|
21
|
21
3L8-23397-00-00
Panel, Front 2
|
3L8-23397-00-00 |
— | ||
|
22
|
22
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
22
|
22
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
24
|
24
3L5-24832-00-00
Bracket, Carrier 1
|
3L5-24832-00-00 |
— | ||
|
25
|
25
3L8-21543-00-00
Plate 1
SUNSHINE RED |
3L8-21543-00-00 |
— | ||
|
25
|
25
3L5-21543-30-00
Plate 1
|
3L5-21543-30-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
3L8-21543-10-00
Plate 1
|
3L8-21543-10-00 |
— | ||
|
26
|
26
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
27
|
27
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
28
|
28
3L8-23395-00-00 Emblem, Yamaha |
3L8-23395-00-00 |
from US $8.08 |
||
| replacement | |||||
|
28
|
28
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
