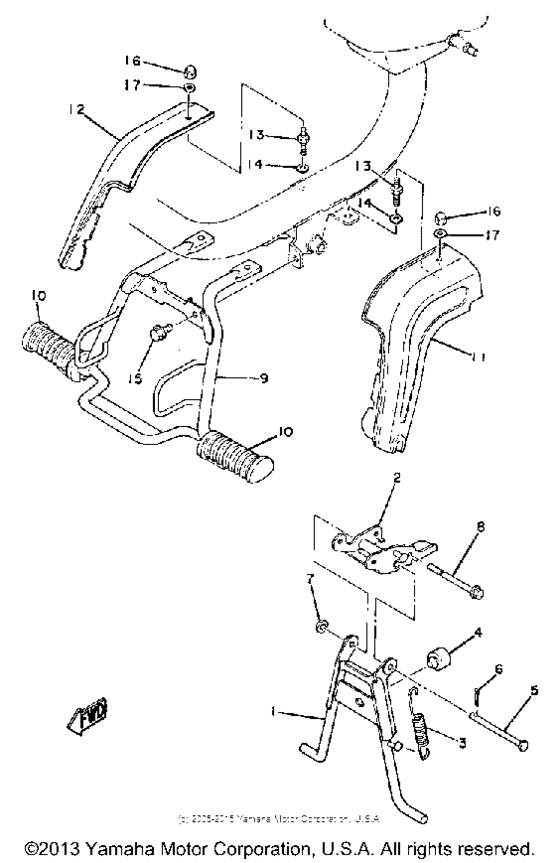

Stand-footrest Diagram Yamaha QT50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L5-27111-02-00
Stand, Main
|
3L5-27111-02-00 |
— | ||
|
2
|
2
3L5-27151-02-00 Bracket, Main Stand |
3L5-27151-02-00 |
from US $8.60 |
||
|
3
|
3
90506-29052-00 Spring, Tension |
90506-29052-00 |
from US $5.81 |
||
|
4
|
4
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $4.68 |
||
|
5
|
5
90240-08121-00 Pin, Clevis |
90240-08121-00 |
from US $4.68 |
||
|
6
|
6
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
7
|
7
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
8
|
8
90105-06301-00 Bolt, Flange |
90105-06301-00 |
from US $1.78 |
||
| replacement | |||||
|
8
|
8
90105-06809-00 Bolt, Flange |
90105-06809-00 |
from US $1.98 |
||
|
9
|
9
3L5-27411-01-33
Footrest 1
YAMAHA BLK |
3L5-27411-01-33 |
— | ||
|
10
|
10
441-27413-01-00 Cover, Footrest |
441-27413-01-00 |
from US $4.30 |
||
|
11
|
11
3L5-27453-00-00
Cover, Footrest 1
|
3L5-27453-00-00 |
— | ||
|
12
|
12
3L5-27463-00-00
Cover, Footrest 2
|
3L5-27463-00-00 |
— | ||
|
13
|
13
90109-08528-00
Bolt
|
90109-08528-00 |
— | ||
|
14
|
14
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
15
|
15
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
15
|
15
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
15
|
15
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
16
|
16
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
