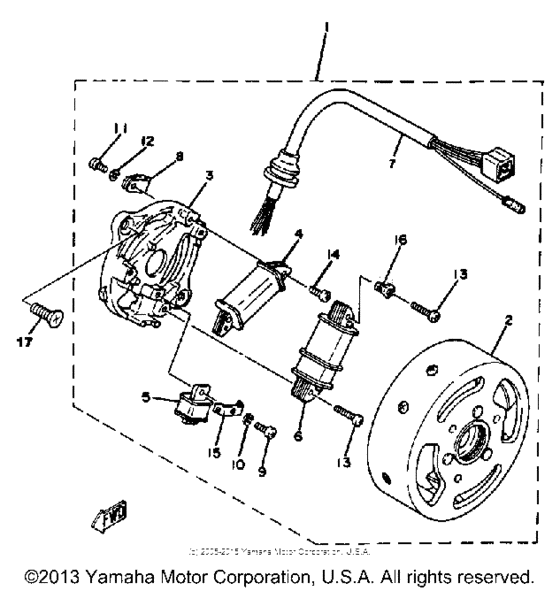

Generator Diagram Yamaha QT50
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5U9-85500-M0-00
Cdi Magneto Assembly
|
5U9-85500-M0-00 |
— | ||
|
2
|
2
3L8-85550-M0-00
Rotor Assembly
|
3L8-85550-M0-00 |
— | ||
|
3
|
3
3L5-85561-M1-00 Base, Magneto |
3L5-85561-M1-00 |
US $142.15 |
||
|
4
|
4
3T5-85520-M1-00 Coil, Charge |
3T5-85520-M1-00 |
from US $45.61 |
||
| replacement | |||||
|
4
|
4
3T5-85520-M2-00 Coil, Charge |
3T5-85520-M2-00 |
US $73.19 |
||
|
5
|
5
3L5-85580-M0-00 Coil, Pulser |
3L5-85580-M0-00 |
from US $18.86 |
||
|
6
|
6
5N7-81313-M0-00
Coil, Lighting 1
|
5N7-81313-M0-00 |
— | ||
|
7
|
7
3L8-8131X-M0-00
Cord Assembly
|
3L8-8131X-M0-00 |
— | ||
|
8
|
8
90461-05036-00 Clamp |
90461-05036-00 |
from US $2.55 |
||
|
9
|
9
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
12
|
12
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
14
|
14
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
15
|
15
2T4-85568-M1-00 Terminal, Earth 1 |
2T4-85568-M1-00 |
from US $3.26 |
||
|
16
|
16
2T4-85569-M1-00 Terminal, Earth 2 |
2T4-85569-M1-00 |
US $3.26 |
||
|
17
|
17
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
17
|
17
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
17
|
17
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
