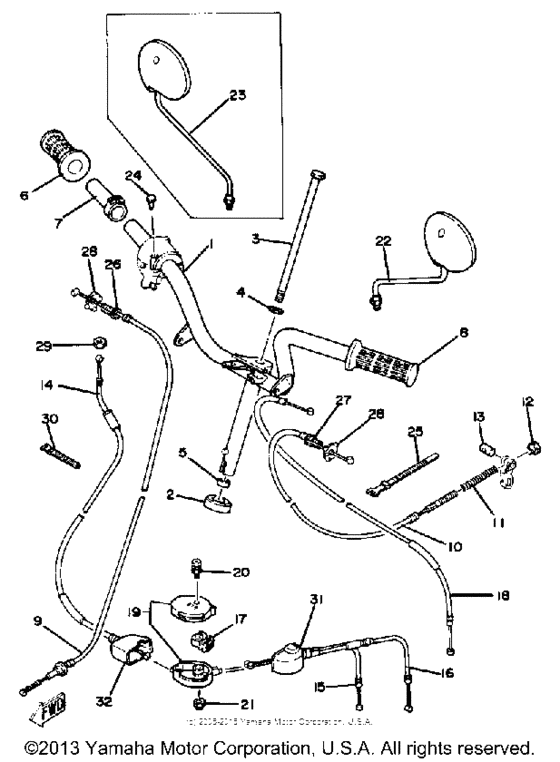

Handlebar - cable Diagram Yamaha QT50
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L8-26110-00-00
Handlebar
|
3L8-26110-00-00 |
— | ||
|
2
|
2
3L5-23191-00-00
Boot, Front Fork
|
3L5-23191-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90106-08035-00
Bolt, Dome Head
|
90106-08035-00 |
— | ||
|
4
|
4
90201-08772-00 Washer, Plate |
90201-08772-00 |
from US $2.69 |
||
|
5
|
5
2E9-26128-00-00
Cone, Expander
|
2E9-26128-00-00 |
— | ||
|
6
|
6
353-26242-00-00 Grip RhGrip,right RH |
353-26242-00-00 |
from US $11.76 |
||
|
7
|
7
3T5-26243-00-00
Tube, Thrtl Guide
|
3T5-26243-00-00 |
— | ||
|
8
|
8
353-26241-00-00 Grip LhLH |
353-26241-00-00 |
from US $11.76 |
||
|
9
|
9
3L8-26341-00-00
Cable, Brake
|
3L8-26341-00-00 |
— | ||
|
10
|
10
3L8-26351-00-00
Cable, Brake
|
3L8-26351-00-00 |
— | ||
|
11
|
11
90501-10074-00 Spring, Compression |
90501-10074-00 |
from US $1.70 |
||
|
12
|
12
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
13
|
13
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
14
|
14
3L8-26311-01-00
Cable, Throttle 1
|
3L8-26311-01-00 |
— | ||
|
15
|
15
3L5-26312-00-00
Cable, Throttle 2
|
3L5-26312-00-00 |
— | ||
| replacement | |||||
|
15
|
15
5H9-26312-00-00
Cable, Throttle 2
|
5H9-26312-00-00 |
— | ||
|
16
|
16
3L5-26321-00-00
Cable, Pump
|
3L5-26321-00-00 |
— | ||
|
17
|
17
2E9-26263-01-00
Piece, Connecting
|
2E9-26263-01-00 |
— | ||
|
18
|
18
3L8-26331-01-00
Cable, Starter 1
|
3L8-26331-01-00 |
— | ||
|
19
|
19
2T4-26270-00-00
Cble Conct Cap Assemblyassy
|
2T4-26270-00-00 |
— | ||
|
20
|
20
90159-05029-00 Screw, With Washer |
90159-05029-00 |
US $1.15 |
||
| replacement | |||||
|
20
|
20
90159-05101-00 Screw, With Washer(39K) |
90159-05101-00 |
US $1.15 |
||
|
21
|
21
90176-05024-00 Nut, Crown |
90176-05024-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90176-05059-00 Nut, Crown(8V0) |
90176-05059-00 |
from US $1.28 |
||
|
22
|
22
1Y0-26290-10-00 Mirror Assembly LhLH |
1Y0-26290-10-00 |
from US $21.39 |
||
|
23
|
23
1Y0-26290-00-00 Mirror Assembly RhRH ALT. PART |
1Y0-26290-00-00 |
from US $21.39 |
||
|
24
|
24
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
24
|
24
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
25
|
25
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
26
|
26
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
27
|
27
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
27
|
27
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
27
|
27
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
28
|
28
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
28
|
28
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
28
|
28
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
29
|
29
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
30
|
30
J45-83936-00-00 Band Switch Cord Assy |
J45-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
31
|
31
3L5-26266-00-00
Boot, Cylinder
|
3L5-26266-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
3L5-26316-00-00
Boot, Throttle Cble
|
3L5-26316-00-00 |
— | ||
