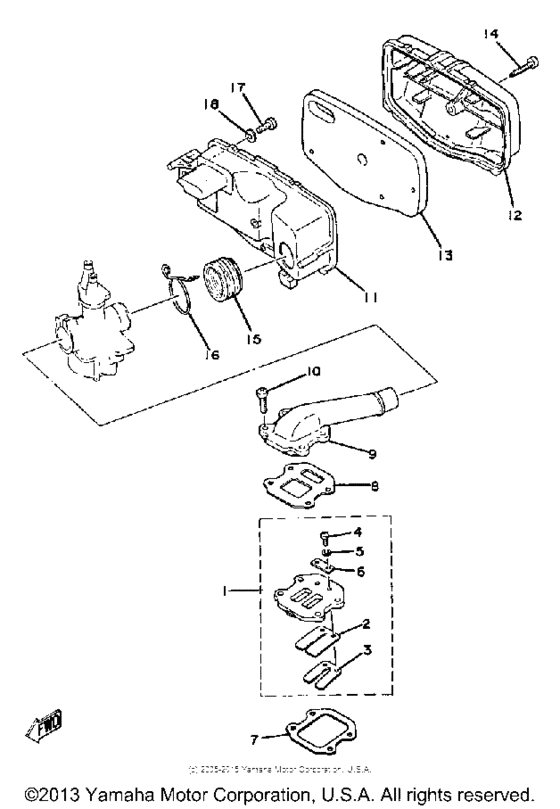

Air filter Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L5-13610-00-00 Reed Valve Assy |
3L5-13610-00-00 |
from US $22.50 |
||
|
2
|
2
3L5-13613-00-00 Reed, Valve |
3L5-13613-00-00 |
from US $18.99 |
||
|
3
|
3
3L5-13616-00-00 Stopper, Reed Valve |
3L5-13616-00-00 |
from US $9.21 |
||
|
4
|
4
98580-03010-00 Screw Pan Head |
98580-03010-00 |
from US $1.98 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
3L5-13624-00-00 Plate, Reed Valve |
3L5-13624-00-00 |
from US $2.69 |
||
|
7
|
7
3HK-13621-00-00 Gasket, Valve Seat |
3HK-13621-00-00 |
from US $10.91 |
||
|
8
|
8
3L5-13622-10-00 Gasket, Valve Seat |
3L5-13622-10-00 |
from US $9.92 |
||
|
9
|
9
3L5-13555-00-00 Manifold, Intake |
3L5-13555-00-00 |
from US $35.28 |
||
|
10
|
10
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
11
|
11
3L5-14411-00-00
Air Filt Case Assembly (3L5-144
3L5-144 |
3L5-14411-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3L5-W1441-00-00
Air Filt Case Assembly (3L5-144
3L5-144 |
3L5-W1441-00-00 |
— | ||
|
12
|
12
3L5-W1441-00-00
Air Filt Case Assembly (3L5-144
3L5-144 |
3L5-W1441-00-00 |
— | ||
|
13
|
13
3L5-14451-00-00 Element, Air Clnr |
3L5-14451-00-00 |
from US $5.38 |
||
|
14
|
14
97780-50130-00 Screw, Tapping |
97780-50130-00 |
from US $2.27 |
||
|
15
|
15
3L5-14453-01-00 Joint, Air Clnr 1 |
3L5-14453-01-00 |
from US $31.88 |
||
|
16
|
16
90467-20023-00 Clip |
90467-20023-00 |
from US $1.70 |
||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
