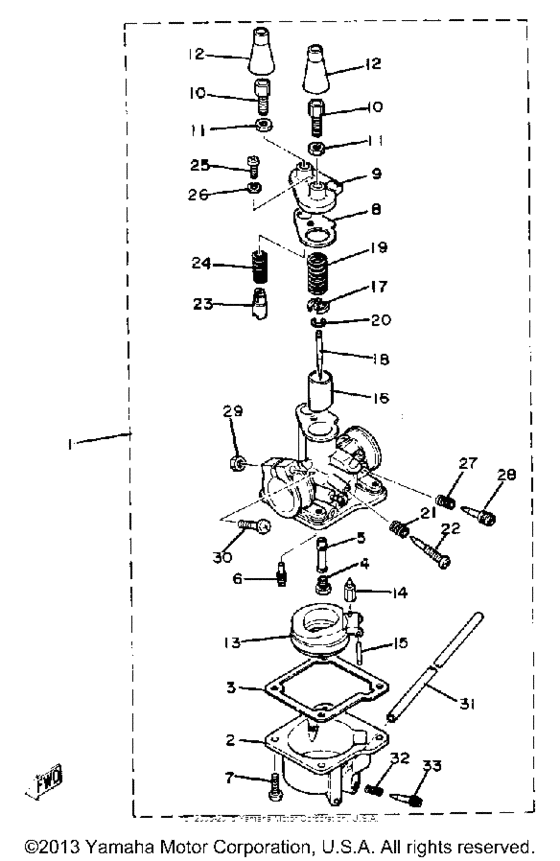

Carburetor Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L4-14101-00-00
Carburetor Assembly 1
|
4L4-14101-00-00 |
— | ||
|
2
|
2
3L5-14181-07-00
Body, Float Chmbr 1
|
3L5-14181-07-00 |
— | ||
|
3
|
3
3L5-14184-00-00 Gasket, Float Chamber |
3L5-14184-00-00 |
from US $7.28 |
||
|
4
|
4
620-14231-14-00 Jet, Main (#70) |
620-14231-14-00 |
from US $6.96 |
||
|
4
|
4
620-14231-13-00 Jet, Main ( 65)65 U.R. |
620-14231-13-00 |
from US $12.42 |
||
|
4
|
4
620-14231-15-00 Jet, Main ( 75)75 U.R. |
620-14231-15-00 |
from US $12.31 |
||
|
5
|
5
3L7-14141-10-00
Nozzle, Main
|
3L7-14141-10-00 |
— | ||
|
6
|
6
3L5-14142-40-00 Jet, Pilot (#40) |
3L5-14142-40-00 |
from US $6.62 |
||
|
7
|
7
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
7
|
7
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
8
|
8
3L5-14198-00-00 Gasket |
3L5-14198-00-00 |
from US $6.38 |
||
|
9
|
9
3L5-14158-00-00
Top, Mixing Chamber
|
3L5-14158-00-00 |
— | ||
|
10
|
10
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
11
|
11
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
12
|
12
307-14169-10-00 Cap |
307-14169-10-00 |
from US $9.97 |
||
|
13
|
13
3L6-14185-01-00 Float |
3L6-14185-01-00 |
from US $18.86 |
||
|
14
|
14
3L5-14190-01-00 Needle Valve Assy |
3L5-14190-01-00 |
from US $17.20 |
||
|
15
|
15
603-14186-00-00 Pin, Float |
603-14186-00-00 |
from US $3.12 |
||
|
16
|
16
3L5-14112-25-00
Valve, Throttle 1
|
3L5-14112-25-00 |
— | ||
|
17
|
17
3L5-14137-00-00
Clip
|
3L5-14137-00-00 |
— | ||
|
18
|
18
3L6-14116-06-00
Needle
|
3L6-14116-06-00 |
— | ||
|
19
|
19
174-14131-01-00 Spring, Throttle Valve |
174-14131-01-00 |
from US $9.59 |
||
|
20
|
20
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
21
|
21
3L6-14133-00-00
Spring, Thrtl Stop
|
3L6-14133-00-00 |
— | ||
|
22
|
22
36R-14103-00-00 Throttle Screw Set |
36R-14103-00-00 |
from US $6.62 |
||
|
23
|
23
58E-14171-00-00 Plunger, Starter |
58E-14171-00-00 |
from US $26.21 |
||
| replacement | |||||
|
23
|
23
3XV-14171-00-00 Plunger, Starter |
3XV-14171-00-00 |
from US $18.28 |
||
|
24
|
24
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $2 |
||
|
25
|
25
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
26
|
26
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
27
|
27
3F7-14134-00-00 Spring, Air Adjusting |
3F7-14134-00-00 |
from US $13.37 |
||
|
28
|
28
17L-14104-00-00 Air Screw Set |
17L-14104-00-00 |
from US $9.40 |
||
| replacement | |||||
|
28
|
28
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
|
29
|
29
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
30
|
30
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
30
|
30
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
30
|
30
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
31
|
31
90445-05024-00 Hose (L200) |
90445-05024-00 |
from US $1.13 |
||
| replacements | |||||
|
31
|
31
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $1.34 |
||
|
31
|
31
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
|
32
|
32
3F7-14134-00-00 Spring, Air Adjusting |
3F7-14134-00-00 |
from US $13.37 |
||
|
33
|
33
17L-14104-00-00 Air Screw Set |
17L-14104-00-00 |
from US $9.40 |
||
| replacement | |||||
|
33
|
33
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
