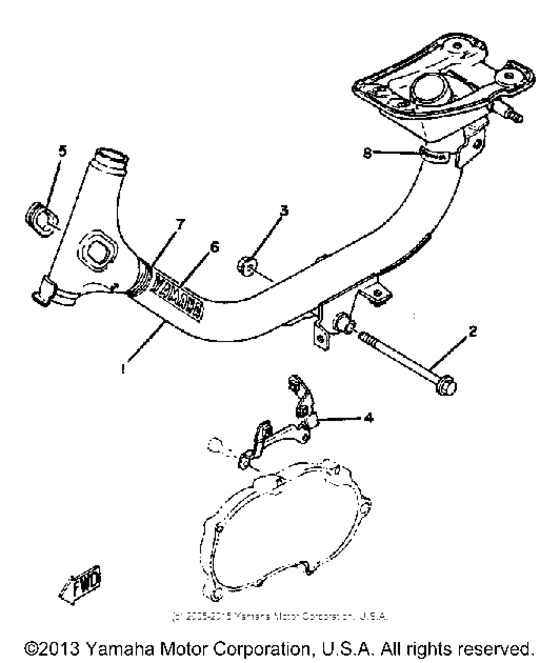

Frame Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5U9-21110-00-4G
Frame
|
5U9-21110-00-4G |
— | ||
|
1
|
1
5U9-21110-00-66
Frame
|
5U9-21110-00-66 |
— | ||
|
2
|
2
90105-10130-00
Bolt, Flange
|
90105-10130-00 |
— | ||
|
3
|
3
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
3
|
3
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
4
|
4
3L5-21359-00-00
Bracket, Coil
|
3L5-21359-00-00 |
— | ||
|
5
|
5
2T4-26288-01-00
Grommet, Cable
|
2T4-26288-01-00 |
— | ||
|
6
|
6
3L8-2118E-01-00
Emblem 1
|
3L8-2118E-01-00 |
— | ||
|
7
|
7
3L8-2118F-00-00
Emblem 2
|
3L8-2118F-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
3L8-23395-00-00 Emblem, Yamaha |
3L8-23395-00-00 |
from US $8.08 |
||
| replacement | |||||
|
8
|
8
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
