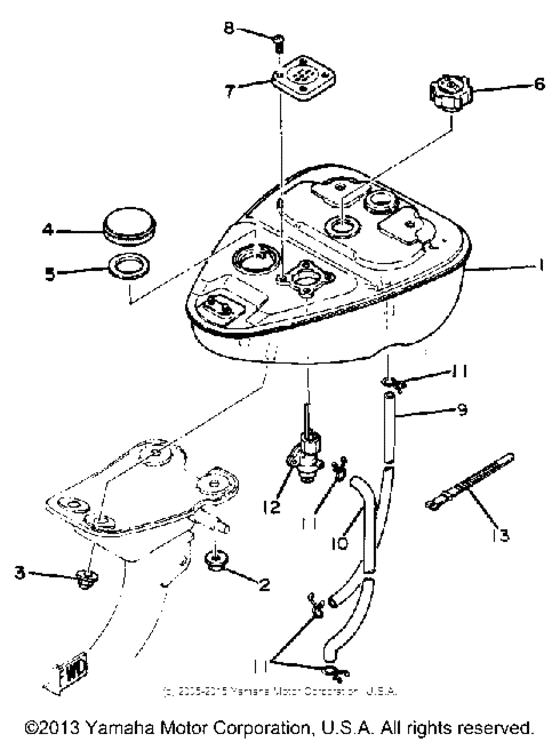

Fuel tank Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L5-24110-01-4G
Fuel Tank
|
3L5-24110-01-4G |
— | ||
|
1
|
1
3L5-24110-01-66
Fuel Tank Comp
|
3L5-24110-01-66 |
— | ||
| replacement | |||||
|
1
|
1
3L5-24110-01-EY
HUB,FRONT
|
3L5-24110-01-EY |
— | ||
|
2
|
2
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
2
|
2
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
3
|
3
90176-08025-00 Nut, Crown |
90176-08025-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
90176-08026-00 Nut, Crown |
90176-08026-00 |
from US $1.28 |
||
|
4
|
4
22F-24610-10-00 Cap Assembly |
22F-24610-10-00 |
from US $18.70 |
||
|
5
|
5
296-24612-00-00 Packing, Cap |
296-24612-00-00 |
from US $9.63 |
||
| replacement | |||||
|
5
|
5
3T5-24612-20-00 Packing, Cap |
3T5-24612-20-00 |
from US $7.64 |
||
|
6
|
6
52W-21770-00-00 Oil Tank Cap Assy |
52W-21770-00-00 |
from US $16.01 |
||
|
7
|
7
3L8-24610-00-00
Cap Assembly
|
3L8-24610-00-00 |
— | ||
|
8
|
8
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
9
|
9
90445-09304-00 Hose (L420) |
90445-09304-00 |
from US $6.52 |
||
| replacement | |||||
|
9
|
9
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
10
|
10
3L5-24311-00-00 Pipe, Fuel 1 |
3L5-24311-00-00 |
from US $16.11 |
||
| replacement | |||||
|
10
|
10
3YR-24312-00-00 Pipe, Fuel 1 |
3YR-24312-00-00 |
from US $16.72 |
||
|
11
|
11
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
12
|
12
4L4-24500-00-00 Fuel Cock Assembly 1 |
4L4-24500-00-00 |
from US $81.38 |
||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
