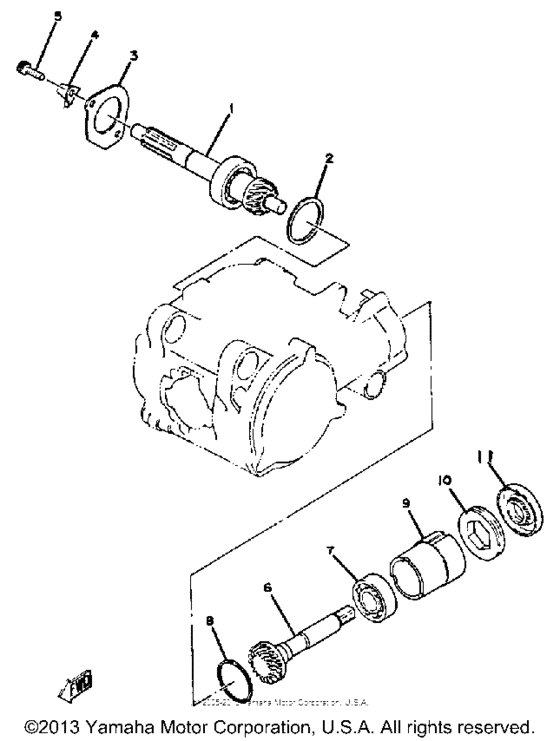

Transmission Diagram Yamaha QT50
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L5-17410-00-00 Main Axle Comp |
3L5-17410-00-00 |
from US $78.04 |
||
|
2
|
2
3L5-17531-00-00 Shim, Pinion |
3L5-17531-00-00 |
from US $2.98 |
||
|
3
|
3
3L5-17471-00-00 Plate, Cover |
3L5-17471-00-00 |
from US $9.41 |
||
|
4
|
4
3L5-17473-00-00 Stopper |
3L5-17473-00-00 |
from US $1.34 |
||
|
5
|
5
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
6
|
6
3L5-17550-00-00 Driven Pinion Assembly |
3L5-17550-00-00 |
US $236.77 |
||
|
6
|
6
15L-17552-00-00 Pinion, Driven19T |
15L-17552-00-00 |
from US $82.48 |
||
|
7
|
7
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
8
|
8
3L5-17537-00-00 Shim, Thrust |
3L5-17537-00-00 |
from US $3.26 |
||
|
9
|
9
3L5-17442-00-00 Collar, Distance |
3L5-17442-00-00 |
from US $18.84 |
||
|
10
|
10
90149-45134-00 Screw |
90149-45134-00 |
from US $9.07 |
||
|
11
|
11
93102-15267-00 Oil Seal |
93102-15267-00 |
from US $7.51 |
||
