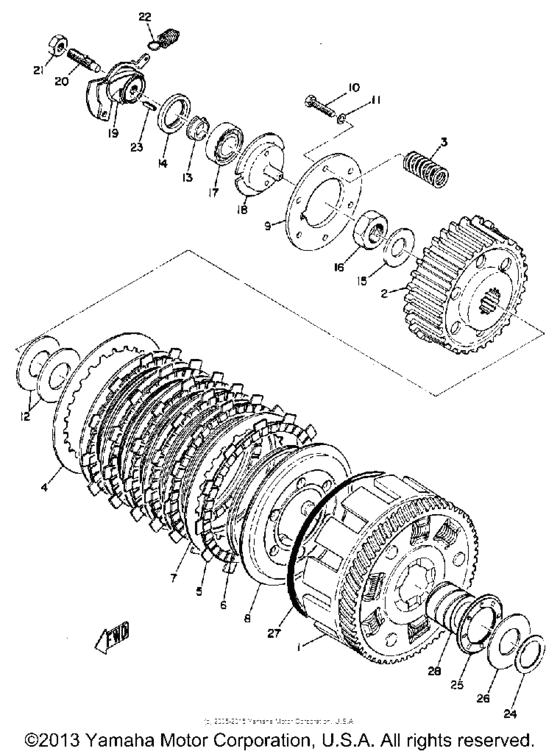

Clutch Diagram Yamaha R3/ R5
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 300
- Model
- R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-16301-02-00
Clutch Assembly
|
168-16301-02-00 |
— | ||
|
1
|
1
168-16105-01-00
Pri Drvn Gear
|
168-16105-01-00 |
— | ||
|
2
|
2
168-16371-00-00
Boss, Clutch
|
168-16371-00-00 |
— | ||
|
3
|
3
905-01231-38-00 Spring, Compression |
905-01231-38-00 |
from US $2.70 |
||
|
4
|
4
168-16324-00-00 Plate, Clutch 1 (T=2.3)T=2.3 |
168-16324-00-00 |
from US $11.46 |
||
|
5
|
5
168-16321-10-00
Plate, Friction 2
|
168-16321-10-00 |
— | ||
| replacement | |||||
|
5
|
5
5Y1-16331-01-00 Plate, Friction 2 |
5Y1-16331-01-00 |
from US $13.48 |
||
|
6
|
6
168-16367-00-00
Ring, Cushion
|
168-16367-00-00 |
— | ||
|
7
|
7
4H7-16325-00-00
Plate, Clutch 2 (T=1.6)
T=1.6 |
4H7-16325-00-00 |
— | ||
| replacements | |||||
|
7
|
7
168-16325-00-00 Plate, Clutch 2 (T1.6)T=1.6 |
168-16325-00-00 |
from US $10.89 |
||
|
7
|
7
168-16325-10-00 PLATE CLUTCH 2T=1.6 |
168-16325-10-00 |
from US $11.12 |
||
|
8
|
8
168-16351-91-00
Plate, Pressure 1
ISO |
168-16351-91-00 |
— | ||
|
9
|
9
168-16352-00-00
Plate, Pressure 2
|
168-16352-00-00 |
— | ||
|
10
|
10
901-53050-12-00
Screw, Hexagon
|
901-53050-12-00 |
— | ||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
170-16164-00-00 Plate, Thrust 2 |
170-16164-00-00 |
from US $10.51 |
||
|
13
|
13
168-16349-00-00
Plug, Push
|
168-16349-00-00 |
— | ||
|
14
|
14
93101-25030-00
Oil Seal, S-Type
|
93101-25030-00 |
— | ||
|
15
|
15
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
16
|
16
90170-18089-00
Nut Hexagon 156161740000
|
90170-18089-00 |
— | ||
|
17
|
17
933-16003-01-00
Bearing, Cylinder.#16
|
933-16003-01-00 |
— | ||
|
18
|
18
168-16348-00-00
Crown, Push
|
168-16348-00-00 |
— | ||
|
19
|
19
168-16340-00-00
Push Lever Assembly
|
168-16340-00-00 |
— | ||
|
20
|
20
901-13080-25-00
Bolt, Set
|
901-13080-25-00 |
— | ||
|
21
|
21
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
22
|
22
90506-10023-00
Spring, Tension
|
90506-10023-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
91690-30014-00 Pin, Spring |
91690-30014-00 |
from US $1.50 |
||
|
24
|
24
168-16154-02-00
Plate, Thrust 1
|
168-16154-02-00 |
— | ||
|
25
|
25
93341-23504-00
Bearing, Flat #41
#41 |
93341-23504-00 |
— | ||
|
26
|
26
170-16164-00-00 Plate, Thrust 2 |
170-16164-00-00 |
from US $10.51 |
||
|
27
|
27
932-11100-97-00
O-Ring
|
932-11100-97-00 |
— | ||
|
28
|
28
170-16181-00-00
Spacer 1
|
170-16181-00-00 |
— | ||
