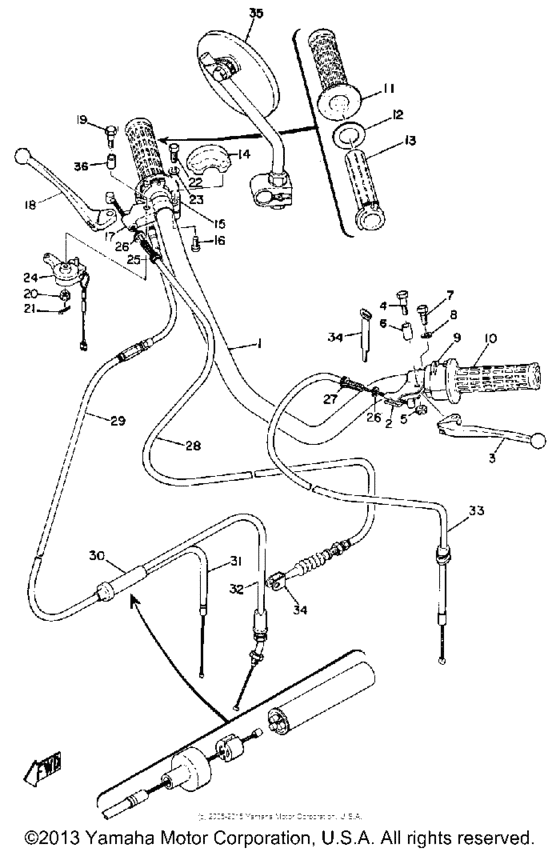

Handle and wire Diagram Yamaha R3/ R5
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 300
- Model
- R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-26111-10-00
Handlebar
UP |
156-26111-10-00 |
— | ||
|
1
|
1
214-82910-07-00
Lever Holder Assembly 1 (214-82
214-82 |
214-82910-07-00 |
— | ||
|
1
|
1
235-26111-00-00
Handlebar
|
235-26111-00-00 |
— | ||
|
2
|
2
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
2
|
2
233-82920-32-00
Lever Holder Assembly 2
ISO |
233-82920-32-00 |
— | ||
|
3
|
3
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $9.78 |
||
|
4
|
4
214-83915-00-00
Screw, Lvr Fitting
|
214-83915-00-00 |
— | ||
|
5
|
5
953-01069-00-00
Nut, Slotted
|
953-01069-00-00 |
— | ||
|
6
|
6
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
7
|
7
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
7
|
7
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
235-83972-00-94
Switch, Handle 4
|
235-83972-00-94 |
— | ||
|
10
|
10
341-26241-00-00
Grip Lh
LH |
341-26241-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
11
|
11
306-26242-10-00 Grip RhGrip,right RH |
306-26242-10-00 |
from US $30.46 |
||
|
12
|
12
150-26249-00-00
Ring, Leaf
|
150-26249-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $15.84 |
||
|
14
|
14
235-26281-00-00
Cap, Grip Upper
|
235-26281-00-00 |
— | ||
|
15
|
15
235-26282-01-00
Cap, Grip Lower
|
235-26282-01-00 |
— | ||
|
16
|
16
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.36 |
||
|
16
|
16
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.36 |
||
|
17
|
17
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
18
|
18
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
19
|
19
90109-05197-00
Bolt (233-81915-01)
233-81915-01 |
90109-05197-00 |
— | ||
|
20
|
20
953-01059-00-00
Nut, Slotted
|
953-01059-00-00 |
— | ||
| replacement | |||||
|
20
|
20
953-07059-00-00
NUT(CROWN)
|
953-07059-00-00 |
— | ||
|
21
|
21
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
22
|
22
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
232-83980-30-00 Stop Switch Assembly |
232-83980-30-00 |
from US $52.78 |
||
|
25
|
25
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
25
|
25
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
25
|
25
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
26
|
26
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
26
|
26
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
27
|
27
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
28
|
28
235-26341-30-00
Cable, Brake
|
235-26341-30-00 |
— | ||
|
28
|
28
246-26341-10-00
Cable, Brake
UP |
246-26341-10-00 |
— | ||
|
29
|
29
235-26311-12-00
Cable, Throttle 1
UP |
235-26311-12-00 |
— | ||
|
29
|
29
235-26311-31-00
Cable, Throttle 1
STD |
235-26311-31-00 |
— | ||
|
30
|
30
156-26261-01-00
Cylinder, Wire
|
156-26261-01-00 |
— | ||
|
31
|
31
235-26312-00-00
Cable, Throttle 2
|
235-26312-00-00 |
— | ||
|
32
|
32
235-26321-00-00
Cable, Pump
|
235-26321-00-00 |
— | ||
|
33
|
33
235-26335-30-00
Cable, clutch
|
235-26335-30-00 |
— | ||
|
33
|
33
235-26335-10-00
Cable, clutch
UP |
235-26335-10-00 |
— | ||
|
34
|
34
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
35
|
35
253-26290-00-00
Mirror Assembly
|
253-26290-00-00 |
— | ||
|
36
|
36
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
