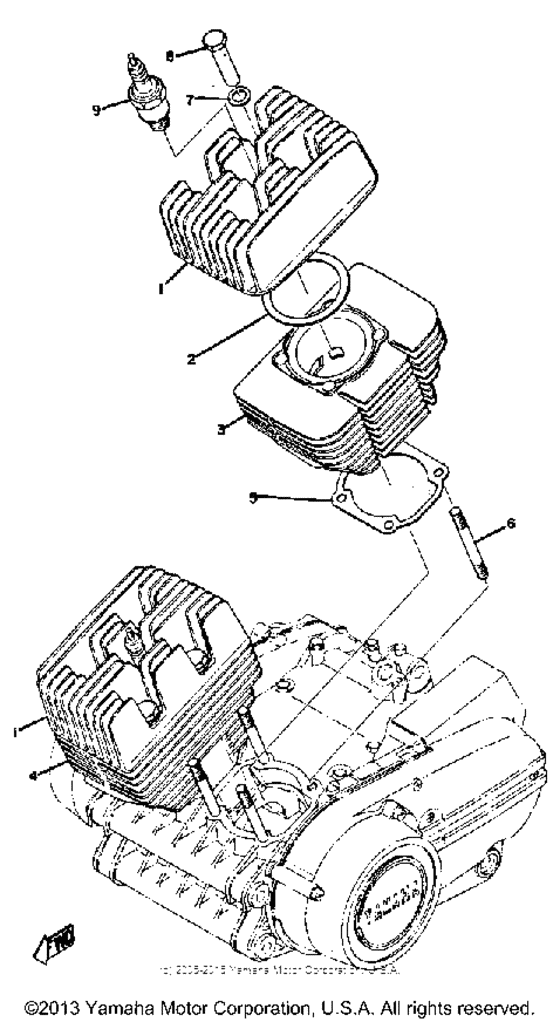

Cylinder head & cylinder Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-11111-01-00
Head, Cylinder 1
|
360-11111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
278-11181-01-00 Gasket, Cylinder Head 1 |
278-11181-01-00 |
from US $12.24 |
||
|
3
|
3
278-11311-01-00
Cylinder 1
F/NO. 0217445 |
278-11311-01-00 |
— | ||
|
4
|
4
278-11321-01-00
Cylinder 2
F/NO. 0217445 |
278-11321-01-00 |
— | ||
|
5
|
5
278-11351-01-00 Gasket, Cylinder |
278-11351-01-00 |
from US $8.36 |
||
| replacement | |||||
|
5
|
5
278-11351-11-00 Gasket, Cylinder |
278-11351-11-00 |
from US $6.46 |
||
|
6
|
6
90116-08065-00 Bolt Stud 276113610000 |
90116-08065-00 |
from US $7.51 |
||
|
7
|
7
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
8
|
8
90179-08026-00
Nut, Spec''l Shape
|
90179-08026-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
947-01000-33-00
Spark Plug B9Hc
B9HC |
947-01000-33-00 |
— | ||
|
9
|
9
NGK-B9ES0-00-00 B9Es Ngk Screw Top |
NGK-B9ES0-00-00 |
US $21.28 |
||
| replacements | |||||
|
9
|
9
B9E-S0000-00-00 `05 FX CR/FX HO CR U |
B9E-S0000-00-00 |
US $21.28 |
||
|
9
|
9
BR9-ES000-00-00 WB2 CUSTOM CVR 96 |
BR9-ES000-00-00 |
US $20.16 |
||
