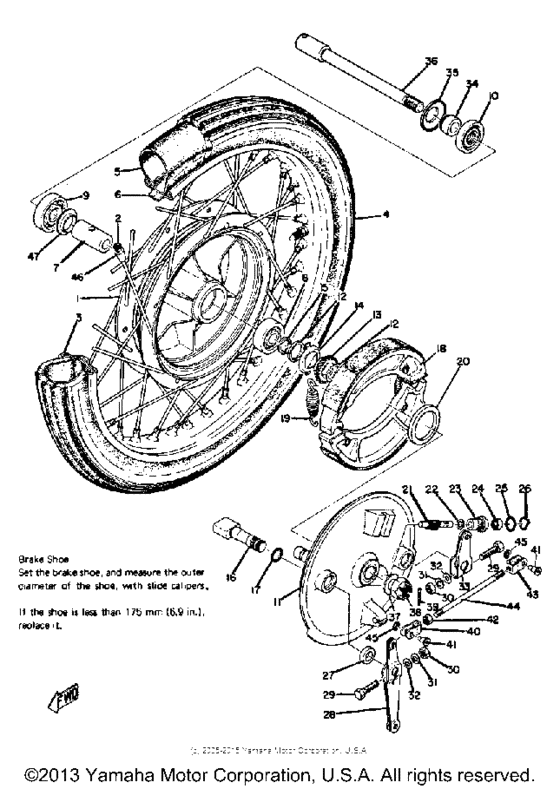

Front wheel Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
246-25111-00-38
Hub, Front
|
246-25111-00-38 |
— | ||
|
2
|
2
152-25104-00-00
Spoke Set, Front
|
152-25104-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
94416-18013-00
Rim 1.60A X 18
1.60X18 |
94416-18013-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
1.60X18 |
999-99999-99-00 |
— | ||
|
4
|
4
941-30183-63-00
Yoko 300S18 Y986
300S18 Y986 |
941-30183-63-00 |
— | ||
|
5
|
5
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
6
|
6
SMA-FYTRD-EC-AL
Gyt-R Decal
|
SMA-FYTRD-EC-AL |
— | ||
|
8
|
8
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
8
|
8
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
9
|
9
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
9
|
9
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
10
|
10
931-02220-14-00 Oil Seal |
931-02220-14-00 |
from US $7.94 |
||
|
11
|
11
361-25120-10-00
Brake Shoe Plt Assembly
|
361-25120-10-00 |
— | ||
|
12
|
12
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
13
|
13
246-25135-00-00 Gear, Drive |
246-25135-00-00 |
from US $21.01 |
||
|
14
|
14
246-25149-00-00
Clutch, Meter
|
246-25149-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
93410-22014-00 Circlip |
93410-22014-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
16
|
16
4R5-25151-00-00
Camshaft
|
4R5-25151-00-00 |
— | ||
|
17
|
17
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
18
|
18
168-W2535-00-00
Brakeshoe Set-2Pcs
|
168-W2535-00-00 |
— | ||
|
19
|
19
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
20
|
20
93105-53013-00
Oil Seal, Sdd-Type
|
93105-53013-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
214-25138-00-00 Gear, Meter |
214-25138-00-00 |
from US $22.34 |
||
|
22
|
22
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
23
|
23
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
24
|
24
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
25
|
25
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
25
|
25
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
26
|
26
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.69 |
||
|
27
|
27
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
28
|
28
168-25155-00-00
Lever, Camshaft 1
|
168-25155-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
29
|
29
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
32
|
32
902-01060-38-00 Washer, Plate |
902-01060-38-00 |
from US $2.13 |
||
| replacement | |||||
|
32
|
32
90201-06431-00 Washer, Plate (371) |
90201-06431-00 |
from US $2.13 |
||
|
33
|
33
246-25156-00-00
Lever, Camshaft 2
|
246-25156-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
903-87154-21-00
Collar
|
903-87154-21-00 |
— | ||
|
35
|
35
246-25118-00-00
Cover, Hub Dust
|
246-25118-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
278-25181-00-00
Axle, Wheel
|
278-25181-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
38
|
38
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
38
|
38
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
39
|
39
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
39
|
39
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
40
|
40
152-25163-00-00 End, Rod 1 |
152-25163-00-00 |
US $40.01 |
||
|
41
|
41
90249-06095-00
Pin, Spec'l Shape
|
90249-06095-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
42
|
42
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
43
|
43
152-25164-00-00 End, Rod 2 |
152-25164-00-00 |
from US $13.48 |
||
|
44
|
44
152-25161-00-00
Rod, Connecting
|
152-25161-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
46
|
46
156-25398-00-00
Balancer, Wheel (15G)
15G |
156-25398-00-00 |
— | ||
| replacement | |||||
|
46
|
46
3HT-25398-00-00 Balancer, Wheel (15G)15G |
3HT-25398-00-00 |
from US $8.08 |
||
|
47
|
47
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
